- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
Trocen
-
Cutting Area:
-
1600*3000mm
-
Cutting Thickness:
-
according to materials
-
Control Software:
-
Trocen
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YN
-
Weight (KG):
-
1500 KG
-
Model:
-
1630 fabric laser cutting machine
-
Working area:
-
1600mmX3000mm
-
Laser Power:
-
150W
-
Laser tube:
-
Sealed CO2 glass Tube
-
Cooling system:
-
water cooling
-
Engraving Speed:
-
0-60000mm/min
-
Positioning Accuracy::
-
0.1mm
-
Driving system:
-
leadshine servo motor and driver
-
After Warranty Service:
-
patient service and equip video on how to operate
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-36000mm/min, 0-36000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Trocen
-
Cutting Area:
-
1600*3000mm
-
Cutting Thickness:
-
according to materials
-
Control Software:
-
Trocen
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YN
-
Weight (KG):
-
1500 KG
-
Model:
-
1630 fabric laser cutting machine
-
Working area:
-
1600mmX3000mm
-
Laser Power:
-
150W
-
Laser tube:
-
Sealed CO2 glass Tube
-
Cooling system:
-
water cooling
-
Engraving Speed:
-
0-60000mm/min
-
Positioning Accuracy::
-
0.1mm
-
Driving system:
-
leadshine servo motor and driver
-
After Warranty Service:
-
patient service and equip video on how to operate

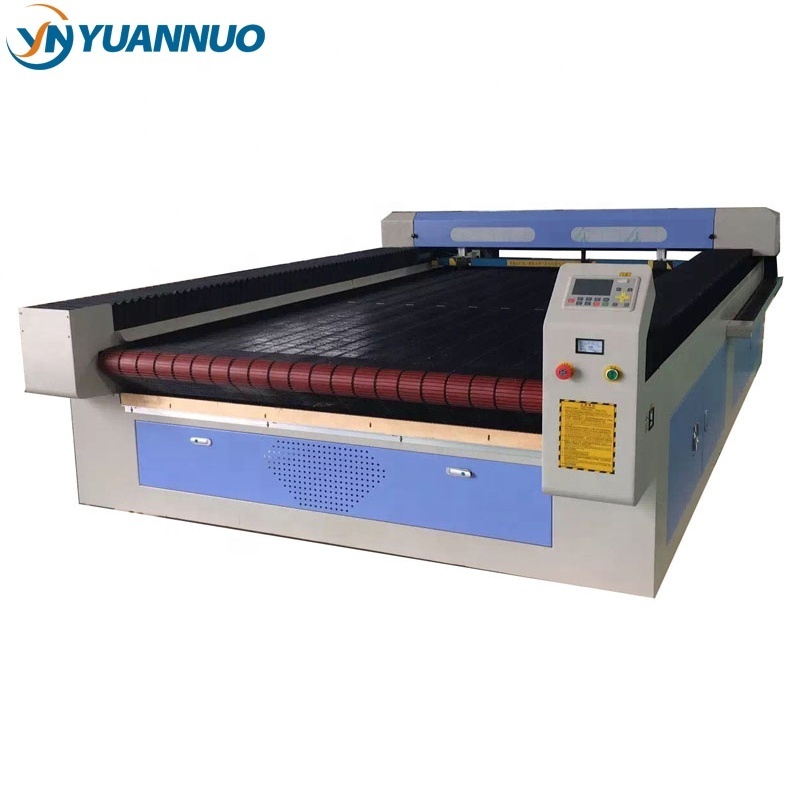

YN1630 hot sale Auto feeding rectifying computer laser cutting machine for fabric leather rubber textile cloth fur
Auto feeding laser cutting
Composing software, for composing the cutting sharp position automatically, save materials
Digital input instrument, for scanning the sample into computer directly, then cut on machine
Smoke free and environmental filtration device, protect the environment
Multi heads is optional for improve efficiency
High power servo motor and driver system
Please click here>>>>>>Contact us for more factory prices, shipping and discount
APPLICATION MATERIALS
fabric, leather, paper, bamboo ware, acrylic, glass, thin film, wood, plastic, Eva and canvas etc.
APPLICATION MATERIALS
Automotive interiors industry: cutting for cushion, avoide light mat, air bag system etc.
Plush toy industry: cutting for plush fabric.
Home furnishing: curtain, bedding articals, sofa fabric etc.
Cloth industry: cut fabric for clothes, leather for bag and shoes etc.
|
|
|||
|
CYLINDER FOR FIX MATERIALS
WHEN AUTO FEEDING |
AUTO FEEDING FRAME CONTROL
SYSTEM |
RECTIFYING AUTO FEEDING
SYSTEM |
||
| SENSOR FOR AUTO FEDDING | SERVO DRIVER | SERVO MOTOR |
| Model : | YN1630 |
| Working area : | 1600*3000mm |
| Laser power : | 80W/100W/150W |
| Laser type : | CO2 Sealed Laser tube, 10.6μm |
| Cooling type : | Water chiller cooling |
| Engraving speed : | 0~60000mm/min |
| Cutting speed : | 0~40000mm/min |
| Laser output control : | 0~100% set by software |
| Min engraving size : | Chinese: 2.0*2.0mm, English letter: 1.0*1.0mm |
| Highest scanning precision : | 4000DPI |
| Locating accuracy : | ≤+0.01mm |
| Controlling Software : | DSP Control System |
| Graphic Format Supported : | DST PLT BMP DXF DWG AI LAS,etc |
| Compatible Software : | CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc. |
| Color Separation : | Yes |
| Drive System : | Leadshine servo motor and driver system |
| Auxiliary Equipments : | Exhaust Fan and Air Exhaust Pipe |
| Power Supply : | AC110V/220V+10%,50HZ/60HZ |
| Working Environment | Exhaust Fan and Air Exhaust Pipe |
| Working Environment : | Temperature:0-45C,Humidity 5-95%(No Condensate Water) |
| Weight: | 1200KGS |
Jinan YuanNuo CNC Equipment Co., Ltd., located in the beautiful spring city Jinan, is a world famous manufacturer for producing various cnc router and laser machine. The company has a strong technical R & D strength, is committed to providing customers with the most suitable industry solutions. Now we have panel furniture production line, woodworking machining center, CNC cutting machine, advertising engraving machine, laser engraving machine, laser cutting machine, laser marking machine etc., we are high-tech enterprises which is the integration of research and development, production and sales. Company philosophy: quality as the core, and service to the customer as basis, to do what we say, say we can do, serve the global customers. JiNan YuanNuo CNC Equipment Co., Ltd., is willing to cooperate with friends from all over the world sincerely, welcome to come to negotiate.
Please click here>>>>>>Contact us for more factory prices, shipping and discount
| 1.How to make order: | |
| 1.1 |
Please inform us more information about your work, such as:
what is the materials you want to process, the work is engrave or cut or others The max size of the materials: Length*wideth*thickness |
| 1.2 |
Quotation:
According to your requirement, we will suggest the most suitable machines, and quoted the most competitive price with best quality. |
| 1.3 |
Deep communication:
Then we talk about the details, such as specification, accessories configuration included, parameters, cooperation terms, shipping things etc. Fix everything and avoid any misunderstanding. |
| 1.4 |
Placing order:
If there is not any problem and we agree with each other, then we send to you the PI(proforma invoice)with all the details of machine, both sides sign contract. Then customer make prepayment and send to us the bank receipt pictures. |
| 1.5 |
Strat to produce:
As soon as received your prepayment, we will strat to produce, and inform the news of prodution always,such as pictures, producing videos,testing work etc. Owning professional testing department, testing precision, real cutting engraving work and every cable connection again, painting etc. before delivery. |
| 1.6 |
Delivery:
After machine finished, we will send detailed pictures and videos to you for confirm, if no problem, will delivery it out and clear Chinese custom |
| 1.7 |
Docusments:
After delivery out, we could prepare all the docusments and send to you, for clear your country custom when machine arrive, such as Bill of Lading, invoice, packing list etc. |
| PAYMENT | |
| 1 | T/T---the most popular and convenient method |
| 2 | Alibaba trade assurance---place order online, customer get full protection |
| 3 | L/C---For big order could accept L/C payment |
| 4 | Western union---for small parts under 1000USD |
| SHIPPING | |
| 1 | Usually by sea, could use LCL or full container as your choice |
| 2 | By air, cost about 3~4 days, depends on different countries |
| 3 | By DHL or TNT or FEDEX etc., cost about 5-7 days. |
| GAURATEE AND AFTER SALE SERVICE | |
| 1 |
One year guarantee for whole machine under normal use
|
| 2 | Supply full englishh manual and operating video on how to use step by step, easy to learn |
| 3 | Supply 24 hours online service by phone,skype,MSN, Romot or email |
| 4 | If need, customer could come to our factory for detailed free training |
| 5 |
If need, could also send engineer to your place for training, just customer will stand
cost for engineer living, ticket etc. |
