Frame structure: cantilever type
Sheet width: less than 300mm;
Coil inner diameter: φ508mm;
Expansion mode: manual expansion;
Inner diameter expansion range Phi 480-560 mm;
Coil maximum outer diameter :φ1300mm;
Carrying weight: ≤3t
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.4-0.9 mm
-
Place of Origin:
-
China
-
Brand Name:
-
WADJAY
-
Weight:
-
4500 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
New design 2023
-
Name:
-

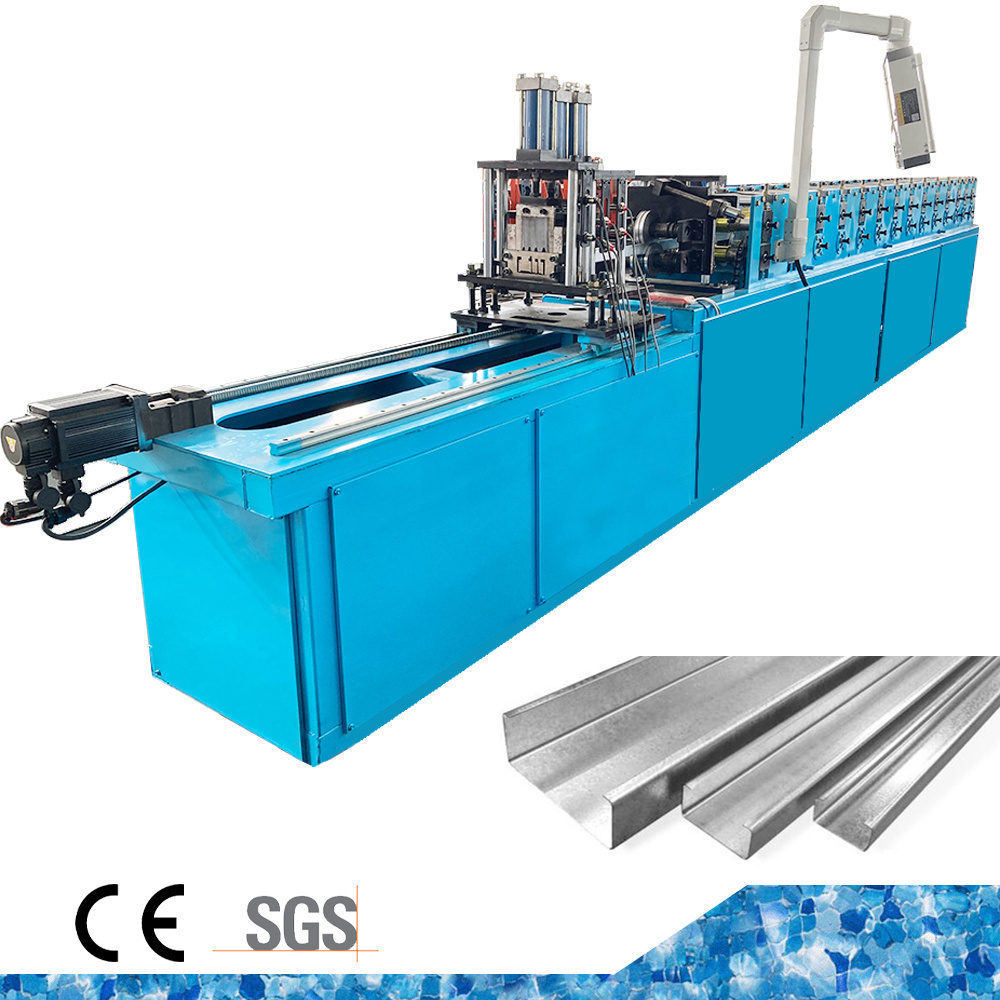

Channe Roll Forming Machine
-
Shaft material:
-
50 mm
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Color:
-
As Your Request
-
Roller stations:
-
14 roller stations
-
Material of rollers:
-
Gcr12 Steel
-
Decoiler:
-
Manual or hydraulic decoiler
-
Control box language:
-
Add Customer Request Language
Quick Details
-
Type:
-
Roll Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
15 m/min
-
Rolling thinckness:
-
0.4-0.9 mm
-
Place of Origin:
-
China
-
Brand Name:
-
WADJAY
-
Weight:
-
4500 kg
-
Feeding width:
-
Other
-
Marketing Type:
-
New design 2023
-
Name:
-
Channe Roll Forming Machine
-
Shaft material:
-
50 mm
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Color:
-
As Your Request
-
Roller stations:
-
14 roller stations
-
Material of rollers:
-
Gcr12 Steel
-
Decoiler:
-
Manual or hydraulic decoiler
-
Control box language:
-
Add Customer Request Language
Product Description
Specification
|
Item
|
Parameters
|
|
Roll stand
|
13
|
|
Main power (Kw)
|
5.5Kw
|
|
Main shaft (mm)
|
Ø 60
|
|
Cutter material
|
Cr12
|
|
Cutting accuracy
|
10±2mm
|
|
Punching
|
Optional
|
|
Hydraulic station power (Kw)
|
4
|
|
Control system
|
PLC
|
|
Size adjusting way
|
Spacer
|
Details Image
Pro-feed coils to rollform
Roll former
Material of the roller : High grade No.45 forged steel. Roller station : 12-14 rows. Thickness of feeding material : 0.3-0.8mm
Servo tracking shear
Guillotine system developed for trouble-free and burr-free cutting made of 60 HRC hard steel.
PLC Control System
The whole line adopts PLC control, LCD display touch screen, man-machine interface
You can set any length and quantity
You can set any length and quantity
