Quick Details
-
Brand Name:
-
SUSSMAN
-
Voltage:
-
220V
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
4500*500*1000mm
-
Weight:
-
3000 kg
-
Material thickness:
-
0.6-1.2mm
-
Producting speed:
-
300-700m/h
-
Size:
-
Customized according to customer's profile drawing
-
`Roller station:
-
13 stations
-
Hydraulic cooling:
-
Fan cooling
-
Inkjet printer:
-
Videojet
-
Materia of cutting:
-
Cr12Mov
-
Hydraulic pressure:
-
Computer set
-
Main Power(KW):
-
7.5KW
-
Hydraulic power:
-
7.5KW
Quick Details
-
Work Pressure:
-
12 mpa
-
Production Capacity:
-
12m/min
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUSSMAN
-
Voltage:
-
220V
-
Power:
-
7.5KW
-
Dimension(L*W*H):
-
4500*500*1000mm
-
Weight:
-
3000 kg
-
Material thickness:
-
0.6-1.2mm
-
Producting speed:
-
300-700m/h
-
Size:
-
Customized according to customer's profile drawing
-
`Roller station:
-
13 stations
-
Hydraulic cooling:
-
Fan cooling
-
Inkjet printer:
-
Videojet
-
Materia of cutting:
-
Cr12Mov
-
Hydraulic pressure:
-
Computer set
-
Main Power(KW):
-
7.5KW
-
Hydraulic power:
-
7.5KW

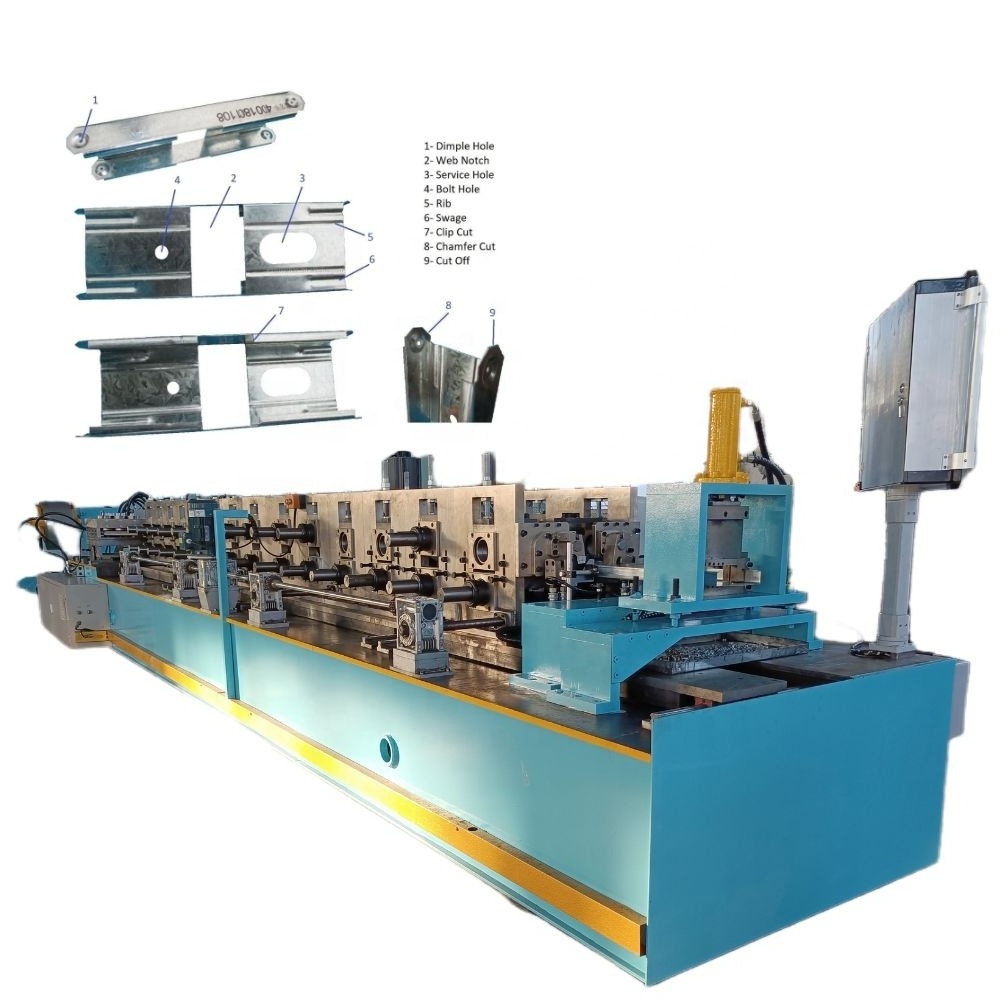

Product Description
The width for this machine can be automatic adjustable, if you are interested in, please tell us the width you need.
|
Size
|
Customized
|
|
Thickness
|
0.6-1.2mm（G300-G550Galvanzied coils and Aluzinc ）
|
|
Feeding width
|
182mm
|
|
Standard Producing speed
|
300-700m/h
|
|
Max producing speed
|
1500m/h
|
|
Main motor
|
7.5kw Servo motor
|
|
Power supplier
|
380V 50Hz 3phases according to your request
|
|
Hydraulic station
|
7.5kw Motor
|
|
Hydraulic tank capacity
|
100L
|
|
Hydraulic cooling
|
Fan cooling with Accumulator
|
|
Hydraulic pressure
|
Manually set
|
|
Host cordless remote control
|
Standard
|
|
Frame and punching dies
|
Screw hole, chamfer, 13mm web hole, flange cut, 35mm pipe hole, suspension, cutting,
|
|
Product accuracy+-
|
0.5mm
|
|
CNC inkjet-printer
|
Inter jet printer Video jet
|
|
Size
|
4700*950*1200mm
|
|
Weight
|
3000kg
|
|
Color
|
According to your request
|
|
De-colier
|
Bearing 2 tonne, automatical decoiler
|
VERTEX BD house design software
1.The wall, floor and roof structure is produced automatically, saving design time.
2.Automatic 3D molding, insure 100% accuracy.
3.With analysis project function, the software can calculate bearing capacity.
4.Create frame work 3D map and 3D decoration view.
5.The whole building frame can be resolve to independent unit drawing.
6.Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and
other matching material.
7.Create the processed data including the marked work piece, docking with the equipment.
8.Software maintenance and training fee.
9.Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.
Equipment description
1).automatic vertical single head uncoiler : 1 set
a.Using hand tightening design, Coil ID:460mm-520mm, coil OD:1400mm, Loading:2000kg
b.Frequency conversion automatic uncoiling
c.Power:2.2KW
2). Frame: Using steel plate welding, the overall annealing to stress treatment, to ensure long-term use without deformation; and
CNC machining center processing to ensure dimensional accuracy.
3). Arch: Main arch is box structure, box is CNC machining center processing, auxiliary arch is independent structure.
4). Rolling mould: Cr12mov die steel, after vacuum hardened HRC60-62 ° to refine the hole and the end of the face, CNC lathe
finishing the roller surface.
5). Main axis: Material for 40Cr tool steel, quenching and tempering heat treatment, external grinding finishing
6). Drive system: Servo motor and reducer linkage, between the wheel with precision hard tooth gear oil immersion operation, to
ensure that the use of long time without wear.
7). Hydraulic system
a. Energy storage structure, energy saving and environmental protection
b. Hydraulic components: Germany Bosch Rexroth products
8). Punching mould
Die model material are used S45C tool steel, mold insert with D2 or SKD11 high-quality steel, mold parts with Japan's rice
products.
9). Electrical parts
a.Original imported motion controller and PLC
b. International first-class brand low voltage components
10). CNC inkjet printer
a.Configuration of industrial-grade high quality solvent-based electronic inkjet printer, print writing clear and solid, easy to
install
b.Common solvent based inks,easy to buy, and economical to use
c.Automatically prints automatically generated by the design software, without human intervention
d.By Frame Mac LGS maker production control system can add any additional information, such as, company name,logo, websites and so
on.
1.The wall, floor and roof structure is produced automatically, saving design time.
2.Automatic 3D molding, insure 100% accuracy.
3.With analysis project function, the software can calculate bearing capacity.
4.Create frame work 3D map and 3D decoration view.
5.The whole building frame can be resolve to independent unit drawing.
6.Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and
other matching material.
7.Create the processed data including the marked work piece, docking with the equipment.
8.Software maintenance and training fee.
9.Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.
Equipment description
1).automatic vertical single head uncoiler : 1 set
a.Using hand tightening design, Coil ID:460mm-520mm, coil OD:1400mm, Loading:2000kg
b.Frequency conversion automatic uncoiling
c.Power:2.2KW
2). Frame: Using steel plate welding, the overall annealing to stress treatment, to ensure long-term use without deformation; and
CNC machining center processing to ensure dimensional accuracy.
3). Arch: Main arch is box structure, box is CNC machining center processing, auxiliary arch is independent structure.
4). Rolling mould: Cr12mov die steel, after vacuum hardened HRC60-62 ° to refine the hole and the end of the face, CNC lathe
finishing the roller surface.
5). Main axis: Material for 40Cr tool steel, quenching and tempering heat treatment, external grinding finishing
6). Drive system: Servo motor and reducer linkage, between the wheel with precision hard tooth gear oil immersion operation, to
ensure that the use of long time without wear.
7). Hydraulic system
a. Energy storage structure, energy saving and environmental protection
b. Hydraulic components: Germany Bosch Rexroth products
8). Punching mould
Die model material are used S45C tool steel, mold insert with D2 or SKD11 high-quality steel, mold parts with Japan's rice
products.
9). Electrical parts
a.Original imported motion controller and PLC
b. International first-class brand low voltage components
10). CNC inkjet printer
a.Configuration of industrial-grade high quality solvent-based electronic inkjet printer, print writing clear and solid, easy to
install
b.Common solvent based inks,easy to buy, and economical to use
c.Automatically prints automatically generated by the design software, without human intervention
d.By Frame Mac LGS maker production control system can add any additional information, such as, company name,logo, websites and so
on.
Product Display
Application
About Us
Sussman Machinery(Wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 20 years before, it' s always design and produce various type profile of roll forming machine.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming
machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
The main products of factory is light gauge framing machine, pre-painted steel forming machine, Glazed Tile roll forming machine, Automatical C/Z Purlin roll forming machine, Floor Deck roll forming machine, Guardrail roll forming machine, Down Pipe roll forming machine, The whole carriage plate for car beam unit , Steel storage unit, etc. Totally it has 100 types in 20 serious. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas, residential, greenhouse and other construction projects. Our factory can meet the construction enterprises, automobile industry, iron and steel production enterprises's growing demand.
Company building area is 5000 square meters, it has a highly efficient design, manufacturing, sales of high- quality team. The machine is covering in 30 provinces of China and world.
The company always adhere to the "quality first, integrity first, service fast, continuous innovation" concept. Adoption of new technologies, development of new products, the application of advanced scientific management, and strive to make product quality better and better.
The company sincerely cooperated with the steel, car, the city of road&bridge construction industry field. The roll forming
machine can be designed according to customer's profiles.
Thanks for the supporting and trust from the domestic and foreign customers. Our success is refine on and try to be better and better.
