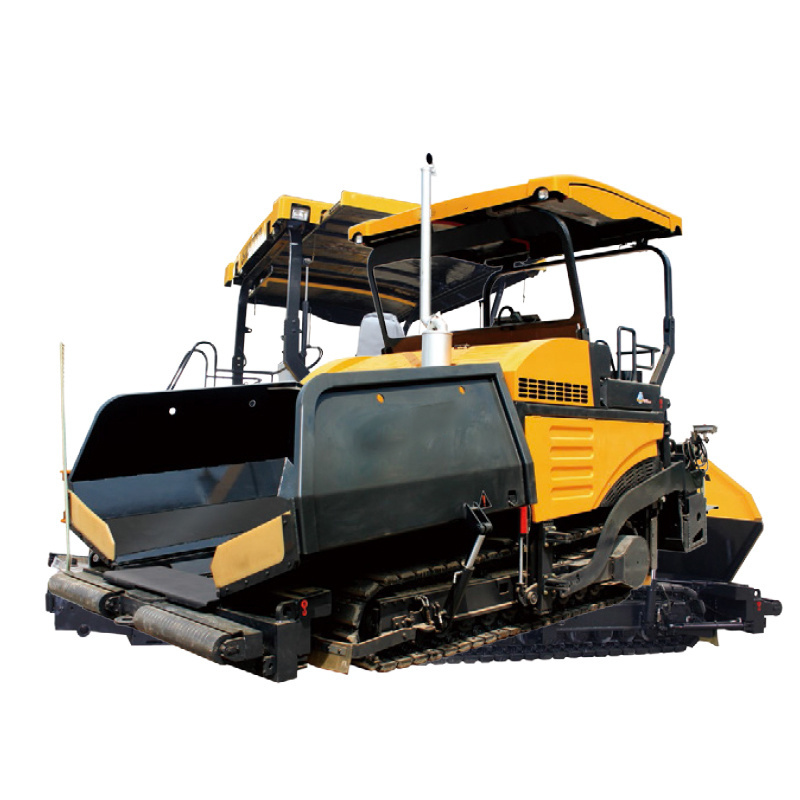

Road Construction Machine SRP09-C5 MA Asphalt Concrete Paver with y 9.5m PAVING WIDTH
Road Construction Machine SRP09-C5 MA Asphalt Concrete Paver with y 9.5m PAVING WIDTH
Road Construction Machine SRP09-C5 MA Asphalt Concrete Paver with y 9.5m PAVING WIDTH
Road Construction Machine SRP09-C5 MA Asphalt Concrete Paver with y 9.5m PAVING WIDTH
Road Construction Machine SRP09-C5 MA Asphalt Concrete Paver with y 9.5m PAVING WIDTH
Road Construction Machine SRP09-C5 MA Asphalt Concrete Paver with y 9.5m PAVING WIDTH
Road Construction Machine SRP09-C5 MA Asphalt Concrete Paver with y 9.5m PAVING WIDTH
Road Construction Machine SRP09-C5 MA Asphalt Concrete Paver with y 9.5m PAVING WIDTH

Road Construction Machine SRP09-C5 MA Asphalt Concrete Paver with y 9.5m PAVING WIDTH

FOB Reference Price: Get Latest Price
≥1 Pieces
US $30000
≥10 Pieces
US $28000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Marketing Type:
Hot Product 2023
Production Capacity:
1000 t/h
Power:
213kw
Place of Origin:
Shanghai, China
Brand Name:
top brand
Dimension(L*W*H):
7000*9500*3950mm
Rated Power:
213/2000 kW
Operating weight:
30000kg
Paving Capacity:
1000 t/h
Paving Width:
9.5m
Rated Power of Engine:
97 kW
Overall dimensions of machine (mm):
7000*9500*3950
Travel Speed:
0~3 km/h
Working Speed:
1.5~20 m/min
color:
Yellow

Quick Details

Max. Paving Thickness:
25cm, 500m
Weight:
30000 kg
Engine Brand:
top brand
Marketing Type:
Hot Product 2023
Production Capacity:
1000 t/h
Power:
213kw
Place of Origin:
Shanghai, China
Brand Name:
top brand
Dimension(L*W*H):
7000*9500*3950mm
Rated Power:
213/2000 kW
Operating weight:
30000kg
Paving Capacity:
1000 t/h
Paving Width:
9.5m
Rated Power of Engine:
97 kW
Overall dimensions of machine (mm):
7000*9500*3950
Travel Speed:
0~3 km/h
Working Speed:
1.5~20 m/min
color:
Yellow
Contact
Sales Manager: Lily Li
Whatsapp/Mobile phone/ WeChat: +86 19956682258
Email:lily.liebty@gmail.com
Company: liebty Machinery(Hangzhou) Co.,Ltd
Add: Room 208, Building 3, Bo.1866, Binxing Road, Changhe Street, Zhejiang, China
Details Images
Road COnstruction Machinery 9.5m Asphalt Concrete Paver SRP09-C5 MA with parts on sale
Configuration Selling Point
The machine is equipped with the Linde hydraulic system and a dedicated engine, delivering the highest traction in the industry, outstanding construction quality and exceptional efficiency. Shantui four wheels and one track ensure exceptional low-speed
stability and superior reliability.

Ease Of Maintenance And Operation Comfort
The front hood features a wide opening angle and the filter elements are all located externally, simplifying maintenance with improved efficiency. The extendable canopy and rotatable seat enable better observation of material conveying and distribution
actions.

Adaptability To Diverse Working Conditions
Equipped with a robust mechanical screed plate, the machine is versatile enough to handle both water-stabilized and asphalt working conditions, making it well-suited for the construction of base and surface layers on highways of different grades.

Specifications
Parameter name
SRP09-C5 MA
SRP09-C5 SA
SRP09-C5 SC
Performance parameters
Operating weight (Kg)
30000
29000
30000
Basic paving width (m)
2.5
3-5.7
2.5
Maximum paving width (m)
9.5
9
9.5
Maximum paving thickness (mm)
500
500
500
Maximum productivity (t/h)
1000
1000
1000
Engine
Engine model
SC9D
SC9D
SC9D
Rated power/rated speed (kW/rpm)
213/2000
213/2000
213/2000
Overall dimensions
Overall dimensions of machine (mm)
7000*9500*3950
7800*9000*3950
7000*9500*3950
Driving performance
Traveling speed (km/h)
0~3
0~3
0~3
Paving speed (m/min)
0~25
0~25
0~25
Chassis System
Hopper
Hopper capacity (t)
16
16
16
Working device
Screed
DM9525Q
AS9030D
DM9525Q
