Quick Details
-
Light Source:
-
LED
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hontech-Wns
-
Model Number:
-
HT-T12AC25W12FD
-
CRI (Ra>):
-
85
-
Lamp Luminous Flux(lm):
-
3000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 50
-
Color Rendering Index(Ra):
-
85
-
LED Light Source:
-
SMD2835
-
Product Weight（kg）:
-
1
-
Feature:
-
flicker free
-
Material:
-
PC+Aluminum
-
Key words:
-
4ft T12/ T8 Dimmable LED tube light
-
beam angle:
-
180 Degree
-
size:
-
OD32mm*1200mm
-
Usage:
-
pig farm, chicken farm
-
Dimmable:
-
Traic Dimmable / 0-10V
-
Color Temperature:
-
2500-6000K
-
Function:
-
Animal Cages Lamp
-
Driver:
-
Isolated LED Driver
Quick Details
-
Color Temperature(CCT):
-
5000K (Daylight)
-
Lamp Body Material:
-
PC
-
Warranty(Year):
-
5-Year
-
Light Source:
-
LED
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hontech-Wns
-
Model Number:
-
HT-T12AC25W12FD
-
CRI (Ra>):
-
85
-
Lamp Luminous Flux(lm):
-
3000
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 50
-
Color Rendering Index(Ra):
-
85
-
LED Light Source:
-
SMD2835
-
Product Weight（kg）:
-
1
-
Feature:
-
flicker free
-
Material:
-
PC+Aluminum
-
Key words:
-
4ft T12/ T8 Dimmable LED tube light
-
beam angle:
-
180 Degree
-
size:
-
OD32mm*1200mm
-
Usage:
-
pig farm, chicken farm
-
Dimmable:
-
Traic Dimmable / 0-10V
-
Color Temperature:
-
2500-6000K
-
Function:
-
Animal Cages Lamp
-
Driver:
-
Isolated LED Driver

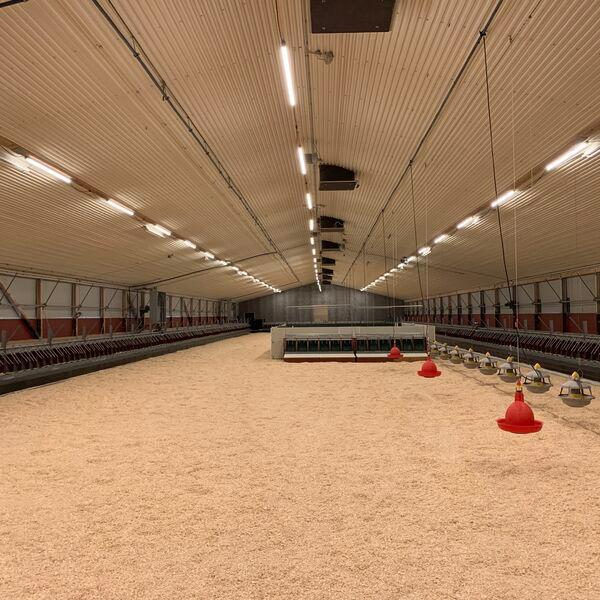

* IP67 LED tube lights is mainly used in chicken farm, carpacking, pig houses, hen house, Poultry farm .
* The tube is certificated by SAA, CE, ROHS, IP67
* The tube with performance up to 120lm/W , and light efficacy up to 88%
* Meet IEC VDE safety standard with built-in isolated driver and Hi-Pot testing up tp 3850V.
| Item | Material | Description |
| PC pipe | Full PC Pipe | Safety for waterproof |
| Pure PC / 94V-0 | Will not Fade | |
| will not burst | ||
| Anti-weak base | ||
| Connector | Nylon+NBR for seal | Alkali, wear resistance, |
| Weather resistance | ||
| CE, IP68 Level | ||
|
Waterproof
End Cap |
94V-0 | Will not Fade |
| Anti-weak base | ||
| PCB board | Aluminum | Hi-pot test up to 2000V |
| 1.5 transmission rate |
| LED driver designed_Traic dimmable | ||
| Main Components |
Specification |
|
| Electrolylic Capacitance |
50000Hrs lifetime |
|
| Dimmable IC | dimm brightness from 0.5%-100%) | |
| Transformer | MAX wattage is 35W | |
| Model No. | Type of Driver | Power | LED info | Total Length | Lumens | Remark |
| HT-T12AC25W12FD |
180-264Vac @ Dimmable
100-265Vac @ Non-dimmable |
25W | SMD2835 132pcs | L: 1200mm OD32mm | 3000Lm Max | IP67 |
| HT-T12AC30W15FD | 30W | SMD2835 168pcs | L: 1500mm OD32mm | 3600Lm Max |
IP67
|
| Type Of Power Supply(1) | Isolated Design |
|
| Type of power supply(2) | Dimmable | |
| End cap type | waterproof(IP67) | |
| Pin Type | Cable | |
| Materials of Tube housing | PC | |
| Cover finished |
Clear, or Milk white
|
Our Patterns & Certifications:
| Package Information | ||||
| Wattage | Box size | N.W | Carton size | G.W |
| 1.2m-25W | 1320x42x42mm/pcs | 0.65kg | 1340x230x275cm/30pcs | 21kg |
| 1.5m-30W | 1620x42x42mm/pcs | 0.85kg | 1640x230x275cm/30pcs | 23.5kg |
1. This unit MUST be installed and wired by a qualified electrical contractor.
2.Please cut the power off when install and remove the products to avoid risk of electric shock
3.Ensure that the fixed plate should be firmly afforded 2 kg.
4.Each LED tube should be not less than 2pcs screw or bolt.
5.Fixture control gear/AC cable MUST BE MOUNTED ABOVE any insulation covering and waterproof box.
6.Do not look directly at LED light source for a long time.
