Quick Details
-
Productivity:
-
100m³/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MAXIZM
-
Weight:
-
20000 kg
-
Marketing Type:
-
New Product 2024
-
Chassis Max.speed:
-
90km/h
-
Chassis Max.grade-ability:
-
35%
-
Wheelbase:
-
5200mm
-
Tire:
-
11.00R20
-
Model:
-
MC07.28-50
-
Max. power:
-
203kw
-
Max. torque:
-
1100/1200-1800Nm/(r/min)
-
Concrete pumping pressure:
-
8MPA
-
Theoretical pumping times:
-
25Time/min
-
Filling height:
-
1550MM
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
32m
-
Max. horizontal conveying distance:
-
28.5m
-
Productivity:
-
100m³/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MAXIZM
-
Weight:
-
20000 kg
-
Marketing Type:
-
New Product 2024
-
Chassis Max.speed:
-
90km/h
-
Chassis Max.grade-ability:
-
35%
-
Wheelbase:
-
5200mm
-
Tire:
-
11.00R20
-
Model:
-
MC07.28-50
-
Max. power:
-
203kw
-
Max. torque:
-
1100/1200-1800Nm/(r/min)
-
Concrete pumping pressure:
-
8MPA
-
Theoretical pumping times:
-
25Time/min
-
Filling height:
-
1550MM

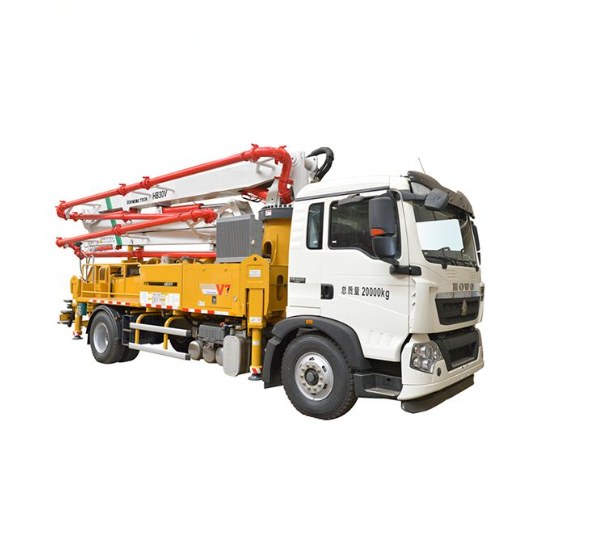

Full Hydraulic Truck Mounted Concrete Pump Machine HB30V 100m3/h Algeria
Contact Us
Bunny Cong/
Sales Manager
Ins : maxizm.bunny
Email : bunny@maxizm.com
Phone Number : +86-13156910727
WhatsApp/Wechat : +86-13156910727
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Products Description
HB30V truck-mounted concrete boom pump is a new type of boom pump developed, with proprietary intellectual property rights. It takes lead in the domestic industry and keeps pace with the international advanced technology.
It adopts 2-axle Sinotruk HOWO chassis, which complies with China V emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performan
It adopts 2-axle Sinotruk HOWO chassis, which complies with China V emission standard, featuring with powerful output, large torque, high efficiency, energy conservation and strong off-road performan
1.Ultimately Safe Boom
All-around technical methods are used to make boom safer and more reliable.
A new generation of micro-control technology is used to make boom operation steadier and more accurate.
2.Lower Structure of High Rigidity
Simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability.
3.Hydraulic System of Outstanding Performance
Realizes fully-hydraulic reversing, self-adaption control, more effective, steadier and zero-polluti
All-around technical methods are used to make boom safer and more reliable.
A new generation of micro-control technology is used to make boom operation steadier and more accurate.
2.Lower Structure of High Rigidity
Simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability.
3.Hydraulic System of Outstanding Performance
Realizes fully-hydraulic reversing, self-adaption control, more effective, steadier and zero-polluti
|
Model
|
|
ZZ5207M521GC1
|
|
Max. speed
|
km/h
|
90
|
|
Max. grade-ability
|
%
|
35
|
|
Wheelbase
|
mm
|
5200
|
|
Tire
|
|
11.00R20
|
|
Model
|
|
MC07.28-30
|
|
Max. power
|
kW
|
203
|
|
Max. torque
|
N·m/(r/min)
|
1100/1200-1800
|
|
Displacement
|
L
|
6.87
|
|
Emission standard
|
|
Eruo III
|
|
Theoretical output
|
m³/h
|
100
|
|
Concrete pumping pressure
|
MPa
|
8
|
|
Theoretical pumping times
|
Time/min
|
25
|
|
Delivery cylinder diameter ×stroke
|
mm
|
φ230×1600
|
|
Max. diameter of pumping concrete
|
mm
|
40
|
|
Filling height
|
mm
|
1550
|
|
Concrete slump range
|
cm
|
8~23
|
|
Reach height
|
m
|
29.6
|
|
Reach depth
|
m
|
18
|
|
Slewingradius
|
m
|
25.7
|
|
Slewing angle
|
°
|
±270
|
|
Longitudinal span of stabilizer
|
mm
|
6100
|
|
Transverse span of front stabilizer
|
mm
|
5555
|
|
Transverse span of rear stabilizer
|
mm
|
4810
|
|
Lubrication method
|
|
Automatic lubrication
|
|
Control method
|
|
Manual/remote control
|
|
Volume of water box
|
L
|
400
|
