Quick Details
-
Control System Brand:
-
RuiDa/LEETRO
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
due to materials
-
Control Software:
-
laser cut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MC
-
Weight (KG):
-
450 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
laser type:
-
co2 sealed laser tube
-
laser power:
-
60w/80w/100w/130w/150w
-
working table:
-
blade or honeycomb
-
engraving speed:
-
0-60000mm/min
-
Application meterial:
-
Non-material.Acrylic. Wood.MDF
-
Working Voltage:
-
AC110-220V 10%.50-60HZ
-
Support Graphic Format:
-
PLT AI BMP DST DXF
-
Compatible software:
-
Coreldraw Auto CAD Photoshop
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-40000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa/LEETRO
-
Cutting Area:
-
1600*1000mm
-
Cutting Thickness:
-
due to materials
-
Control Software:
-
laser cut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MC
-
Weight (KG):
-
450 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
laser type:
-
co2 sealed laser tube
-
laser power:
-
60w/80w/100w/130w/150w
-
working table:
-
blade or honeycomb
-
engraving speed:
-
0-60000mm/min
-
Application meterial:
-
Non-material.Acrylic. Wood.MDF
-
Working Voltage:
-
AC110-220V 10%.50-60HZ
-
Support Graphic Format:
-
PLT AI BMP DST DXF
-
Compatible software:
-
Coreldraw Auto CAD Photoshop

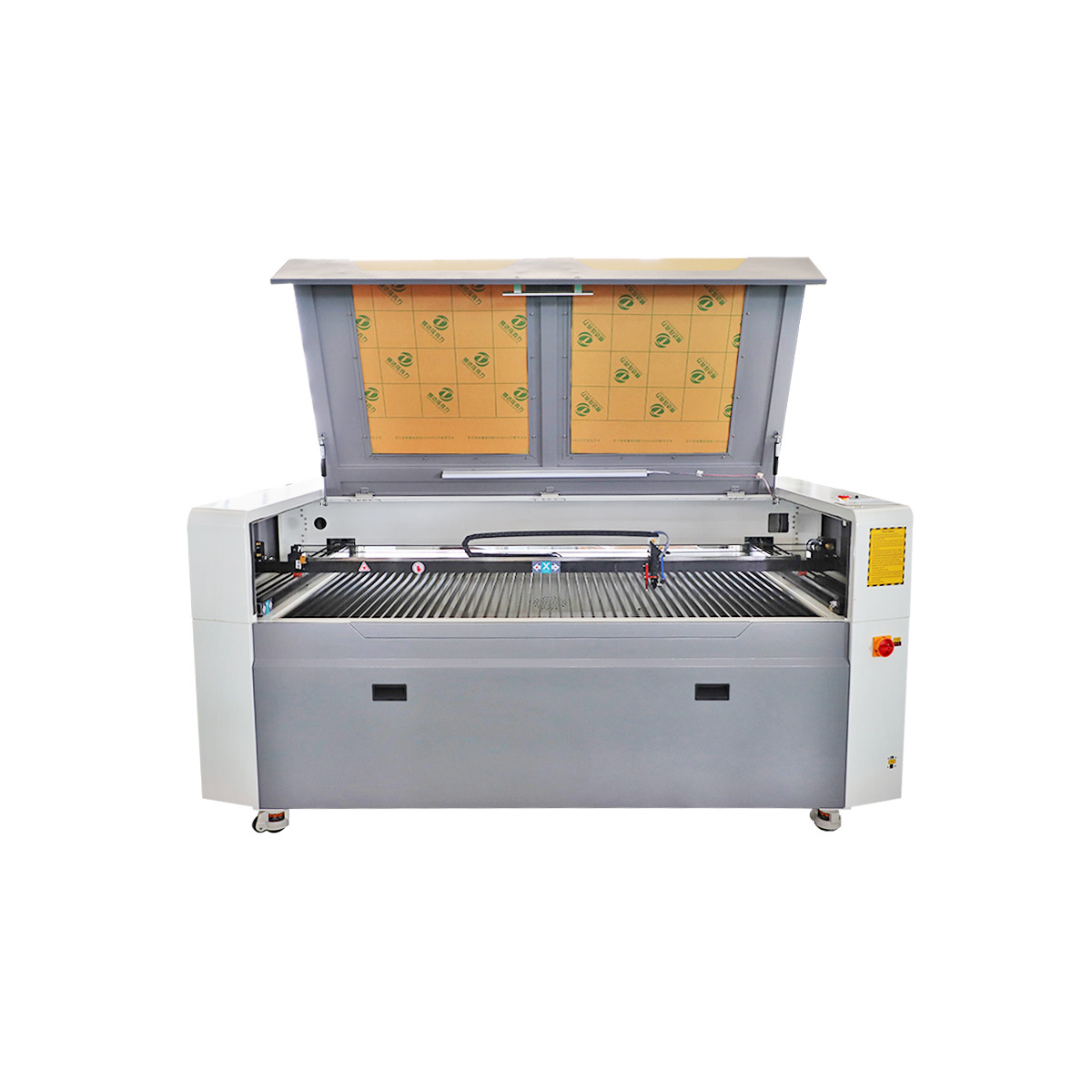

1610 CO2 Laser Cutter / reci 150 watt Laser Cutting Machine / plywood laser cutting machine
|
|
|
Model |
MC 1610 / 1390 |
|
Working Area |
1600*1000 / 1300*900 mm |
|
Laser Power |
60W/80W/100W/130W/150W/280W/300W for option |
|
Laser Type |
CO2 Laser tube |
|
Cooling Type |
Water Cooling |
|
Working Speed |
0-400mm/s |
|
Transmission system |
Belt and Taiwan imported square guide rail |
|
Driver System |
Lead shine brand high subdivision step motor driving |
|
Auxiliary Accessories |
Water pump/Water chiller, Air pump, Exhaust Fans with air pipe, Tool box |
|
Control Software |
DSP Control System |
|
Min. Engraving Size |
Chinese: 2.0mm*2.0mm, English Letter:1.0mm*1.0mm |
|
Laser Output Control |
0-100% Set by Software |
|
Graphic Format Supported |
DST. PLT. BMP. DXF. DWG. AI. LAS, etc |
|
Compatible Software |
CORELDRAW, PHOTOSHOP, AUTOCAD, etc |
|
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
|
Working Environment |
Temperature: 0-45C, Humidity 5-95%(No Condensate Water) |
Pre-sales service
* In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products.
* Every machine must be tested before delivery, all of them are absolutely qualified.
After-sales service
* User manual and Installation video will be sent to you together with machine.
* Provide online technical support, and, the engineer can be sent to your local to install or adjust if necessary.
* 24 months guarantee of the whole machine.
* 12 months warranty for Main parts(excluding the consumables and belongs to the user irregularities operating), shall be changed free of charge if there is any quality problem during the warranty period.
* Provide the consumable parts at an agency price when you need replacement in future.
