Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Rotation:
-
CW
-
Product Name:
-
12 v dc motor for winch 1.6kw 6N.m torque
-
Application:
-
lift table, fork lift, van wing door, tailgate etc
-
Color:
-
Customer's Demands
-
Insulation class:
-
H
-
Material:
-
100% copper wire armature
-
Working duty:
-
S3, intermittent work
-
Cooperated corporation:
-
US WAI company,Korea SOOSUNG and KOPACK,Turkey Hidros,China HELI etc.
-
Warranty:
-
one year
-
Customization/OEM:
-
available
Quick Details
-
Speed(RPM):
-
2450rpm
-
Continuous Current(A):
-
Current
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Jiangsu, China
-
Rotation:
-
CW
-
Product Name:
-
12 v dc motor for winch 1.6kw 6N.m torque
-
Application:
-
lift table, fork lift, van wing door, tailgate etc
-
Color:
-
Customer's Demands
-
Insulation class:
-
H
-
Material:
-
100% copper wire armature
-
Working duty:
-
S3, intermittent work
-
Cooperated corporation:
-
US WAI company,Korea SOOSUNG and KOPACK,Turkey Hidros,China HELI etc.
-
Warranty:
-
one year
-
Customization/OEM:
-
available
JINLE Recent Fairs we will Attend :
2017 PTC ASIA in Shanghai in October , booth No: Hall E3, G3-2
2017 Autumn Canton Fair in Guangzhou
2018 Hannover Messe in April in Germany
Welcome to visit our booth!

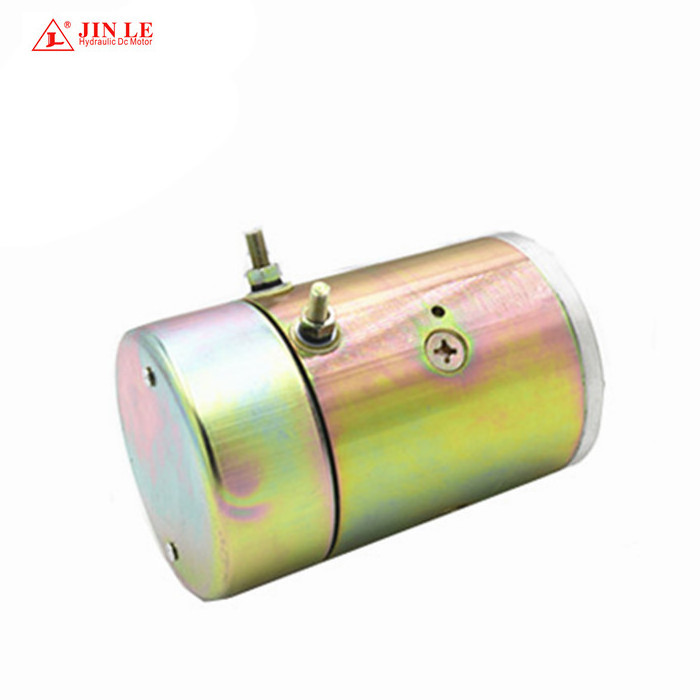

12 v dc motor for winch 1.6kw 6N.m torque
Specifications of 12 v dc motor for winch 1.6kw 6N.m torque
Model: W5692
Material: 100% copper wire armature
Voltage: 12V
Power: 1.6KW
Speed: 2450rpm
Rotation: CW
O.D: 114mm
Outline Dimension of 12 v dc motor for winch 1.6kw 6N.m torque
Motor Load Characteristic Curve of 12 v dc motor for winch 1.6kw 6N.m torque
Parameter of 12 v dc motor for winch 1.6kw 6N.m torque
| Unload: | ||
| Speed(n) | = | 7314rpm |
| Current(l) | = | 57.920A |
| Max_Torque: | ||
| Torque(M) | = | 6.020N.m |
| Current(I) | = | 211.930A |
| Speed(n) | = | 2325rpm |
| Eff | = | 57.86% |
| Output Power(P2) | = | 1465.60W |
| Max_Efficiency: | ||
| Eff | = | 67.04% |
| Speed(n) | = | 5947rpm |
| Torque(M) | = | 1.010N.m |
| Current(I) | = | 74.140A |
| Output Power(P2) | = | 628.90W |
| Max_Pout: | ||
| Eff | = | 57.86% |
| Speed(n) | = | 2325rpm |
| Torque(M) | = | 6.020N.m |
| Current(I) | = | 211.930A |
| Output Power(P2) | = | 1465.60W |
Advantage of Jinle hydraulic dc motor/electric motor and hydraulic power pack units
1) Low noise, easy brush replacement, 100% copper wire, good quality fresh raw materials
2) Strictly control every production, inspection, packing link
3) Efficient and stable running time,one year warranty
4) OEM and customized service avaliable
5) Advanced automatic and semi-automatic equipments
6) Robust construction for long and reliable service life
7) 12V, 24V, 36V, 48V,60V,72V as per customers' option
8) High class professional R&D team and skilled workers
9) Factory established in 1996 over 20 years' manufacturing experience
10)Highly qualified service, able to solve any problems
Some pictures about Jinle hydraulic dc motors/electric motors 12v/24v/48v/60v/72v etc. and AC/DC hydraulic power pack unit raw materials, advanced equipments and exhibitions. Click on the picture for more details.
For more options of Jinle hydraulic dc motors/electric motors 12v/24v/48v/60v/72v etc. and AC/DC hydraulic power pack unit , please click on below picture to enter Jinle Alibaba.com.
Customized production is available. Send me the parameters, we will customize for you!
Jinle hydraulic dc motors/electric motors 12v/24v/48v/60v/72v etc. and AC/DC hydraulic power pack unit mainly used for forklift lifting, tailgate lifting , and wing doors, the three kinds motors account for 80%. The rest of the hydraulic power units dc motors are used for snow truck, golf course excavator, boarding bridge, sanitation truck, slag car cover system and medical bed etc. Welcome you to send inquiry to us, we will offer the hydraulic power pack unit catalog for your reference.
Jinle hydraulic dc motors/electric motors 12v/24v/48v/60v/72v etc. and AC/DC hydraulic power pack unit use export standard packaging:
Internal packing: air bubble pad or plastic bag with corrugated carton with required lables
External packing: pallet with required lables
