Quick Details
-
Voltage:
-
220V/50HZ(Single phase)
-
Rated Power:
-
500w
-
Weight (KG):
-
230 KG
-
Year:
-
2022
-
Marketing Type:
-
Hot items for 2022
-
Product name:
-

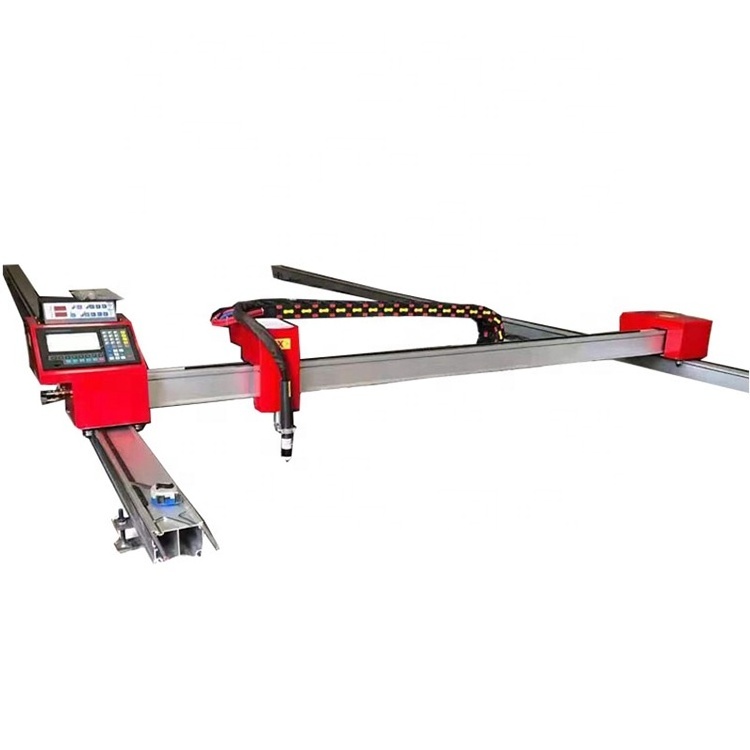

Light gantry type CNC cutting machine
-
Drive mode:
-
Bilateral drive
-
Cutting ways:
-
Plasma Cutting+ Flame Cutting
-
Guide rail way:
-
Linear guide
-
Cutting quality and dimensions:
-
JB/T 10045.4-1999
-
Configuration:
-
Optional
-
Structure:
-
gantry type
-
Transmit system:
-
Dual Rack & Pinion type
-
Style:
-
Customizable
-
Certification:
-
CE Certificate
Quick Details
-
Place of Origin:
-
HeBei China
-
Brand Name:
-
JULIANG
-
Model Number:
-
QXLM-2060
-
Voltage:
-
220V/50HZ(Single phase)
-
Rated Power:
-
500w
-
Weight (KG):
-
230 KG
-
Year:
-
2022
-
Marketing Type:
-
Hot items for 2022
-
Product name:
-
Light gantry type CNC cutting machine
-
Drive mode:
-
Bilateral drive
-
Cutting ways:
-
Plasma Cutting+ Flame Cutting
-
Guide rail way:
-
Linear guide
-
Cutting quality and dimensions:
-
JB/T 10045.4-1999
-
Configuration:
-
Optional
-
Structure:
-
gantry type
-
Transmit system:
-
Dual Rack & Pinion type
-
Style:
-
Customizable
-
Certification:
-
CE Certificate
|
Product name
|
Light gantry type CNC cutting machine
|
|
Beam width
|
2800mm
|
|
Effective cut width
|
2000mm
|
|
Guide rail length
|
6500mm
|
|
Effective cut length
|
6000mm
|
|
Flame cutting thickness
|
≤150mm
|
|
Cutting speed
|
Maximum blank line speed 8000mm/minThe cutting speed depends on the cutting mode
|
|
Mobile precision
|
±0.5mm/m
|
|
Effective lift stroke
|
1-150mm
|
|
Input voltage
|
220 V/50HZ( single phase)
|
Hebei Juliang Technology Co., Ltd. Is a high-tech enterprise specializing in the manufacture and research and development of CNC cutting equipment. After years of dedicated research and development and market tempering, it has successfully launched a number of products such as flame/plasma CNC cutting machine, tube sheet cutting machine, hand-held laser welding machine, etc., which are widely used in shipbuilding, steel structure, bridge, construction, mining machinery, automobile manufacturing and other industries . The above products are widely used in well-known enterprises at home and abroad, not only exported to Southeast Asia, Russia, Africa, Europe and the United States and other countries, their superior performance and preferential prices have been well received by many users.
