Quick Details
-
Model Number:
-
FWZ
-
Product name:
-
PT100 PT1000 Temperature Sensor
-
Type:
-
PT100,PT1000,PT500
-
Accuracy:
-
Class A or B
-
Size:
-
Customized
-
Cable:
-
PVC,Silicon Latex Fiberglass
-
Housing:
-
SUS304 or SUS316
-
Insulation Resistance:
-
100Moh
-
Response time:
-
10S (0.63t)
-
Measuring range:
-
-50~200°C, -50~350°C, -50~600°C
-
Certificate:
-
CE ROHS
-
Color:
-
customized
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Focusens
-
Model Number:
-
FWZ
-
Product name:
-
PT100 PT1000 Temperature Sensor
-
Type:
-
PT100,PT1000,PT500
-
Accuracy:
-
Class A or B
-
Size:
-
Customized
-
Cable:
-
PVC,Silicon Latex Fiberglass
-
Housing:
-
SUS304 or SUS316
-
Insulation Resistance:
-
100Moh
-
Response time:
-
10S (0.63t)
-
Measuring range:
-
-50~200°C, -50~350°C, -50~600°C
-
Certificate:
-
CE ROHS
-
Color:
-
customized

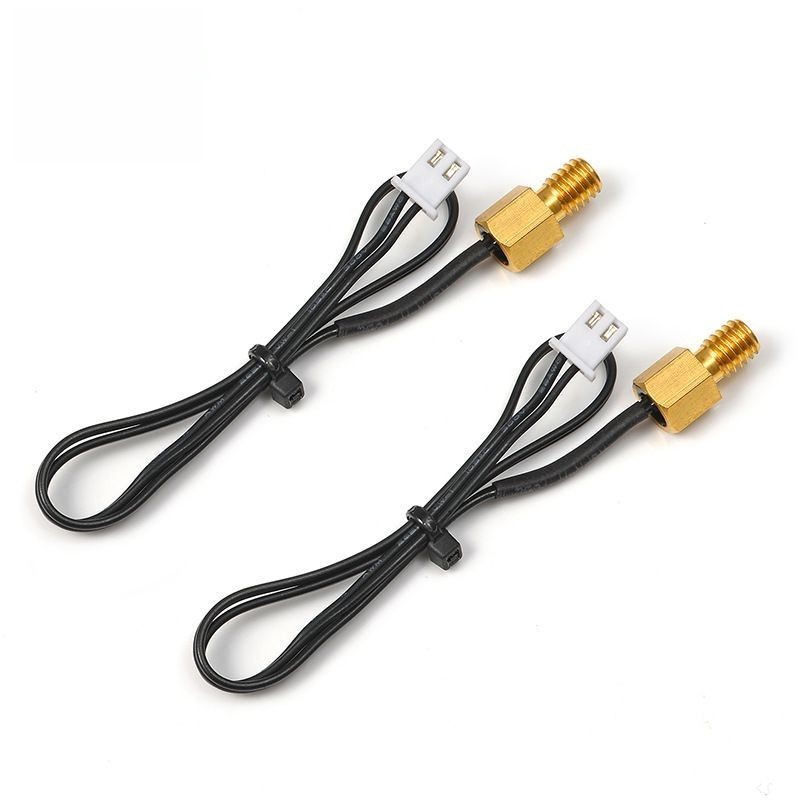

FWZ Series RTD Temperature Sensor PT100/PT1000/Cu/Ni
RTD (Resistance Temperature Detector) temperature sensor with high accuracy, good resolution, safe and reliable, convenient use, can be directly measured during the manufacture of all kinds of liquid, vapour and gas medium temperature.
TO KNOW MORE...
|
Item
|
Specification
|
|
Sensor type
|
Platinum Resistance, Pt100 or Pt1000 Ohms
|
|
Ice point resistance
|
100Ω or 1000Ω Ohms
|
|
Fundamental interval (0°C to 100°C)
|
38.5Ω nominal (100Ω)
385Ω nominal (1000Ω) |
|
Measuring range
|
-50~200°C, -50~350°C, -50~600°C
|
|
Tolerance class
|
DIN Class A or B
|
|
Response time
|
10S (0.63τ)
|
|
Insulation Resistance
|
100Mohm
|
|
Cable material
|
PVC, Teflon, Silicone, Fiberglass
|
|
Housing
|
SUS304 or SUS316
|
|
European / British Standard
|
Conforms to IEC 60751:2008 / BS EN 60751:2008
|
Flexible customize the product specifications and shape to match your applications.
ABOUT US
Focus Sensing and Control Technology
Co.,LTD is a Sensor expert works professionally in Temperature, Humidity, Level sensing Fields. We are ISO certified and patented factory located in National Grade High Tech Industry Zone of Hefei city, middle East China close to Shanghai.
Basically we works for 5 main industry lines , household electricity, Automobile, Medical, IoT and Industry. Under our brand name Focusens , we develop and produce thermistors and
esistance Temperature Sensors NTC ,PTC
Focusens have a project and sales engineer team that have almost 20 years sensor field experience, which enable us flexible and reliable product development and professional customer project support. We annually
develop 50+ new sensor solutions for different applications ,and we’ve exported to over 60 countries ,especially Westen European , South European , North America and South East Asia.
Focusens equipped with advanced processing assembling and testing machines like Auto Chip Selection Machine, Multi-Functional Computer Wire Cutting Machine, Precision Spot Welding Machine, 0.01’ Degree C super high precision thermal bath Machine, Precision constant humidity chamber etc.
Directly buy , distribution, agent or OEM, we welcome various models of cooperation. Drop us contact or visit , start your pleasant experience of cooperation with Focusens.
What is typical phase for set up a sensor project with Focusens ?
Specification Confirmation – Price Confirmation –Sample Evaluation --- Trial Order—Routine Order--- Partnership Cooperation
How to match right sensor and get quotation sooner？
1. Drawing of the sensor part you are in need. (Most convenient and prefered if you have it)
2. A sensor probe generally consist of 4 below basic parts, it will works if you can describe us your specific requirements on below :
- Your requirement on parameter or electrical value of sensing element
- Material and size of probe/ sensor house
- Gauge and size of extension cable
- Requirements on other accessories like connector, cable gland, label, etc
3. A sample of existing sensor that you want to order same. ( we measure sample and send counterpart )
4. In case you are not able to specify above and your project is open for sensor selection, we can make recommend base on your exact field application requirement.
