Quick Details
-
Model Number:
-
T21SW152-4
-
Dimension:
-
LxWxH:21*21*10.3in
-
Output Power:
-
2000 Watts(AES)
-
Product Name:
-
21 Inch Subwoofer
-
Nominal diameter:
-
550mm/21inch
-
Voice Coil Diameter:
-
152mm/6.0inch
-
Peak Power:
-
4000Watts
-
Nominal lmpedance:
-
4 Ω
-
Frequency Range:
-
29-1000 Hz
-
Sensitivity:
-
94 dB
-
EBP:
-
70Hz
-
Basket:
-
Aluminum Alloy
-
Application:
-
Stage/Outdoor/Party
Quick Details
-
Warranty:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
T21SW152-4
-
Dimension:
-
LxWxH:21*21*10.3in
-
Output Power:
-
2000 Watts(AES)
-
Product Name:
-
21 Inch Subwoofer
-
Nominal diameter:
-
550mm/21inch
-
Voice Coil Diameter:
-
152mm/6.0inch
-
Peak Power:
-
4000Watts
-
Nominal lmpedance:
-
4 Ω
-
Frequency Range:
-
29-1000 Hz
-
Sensitivity:
-
94 dB
-
EBP:
-
70Hz
-
Basket:
-
Aluminum Alloy
-
Application:
-
Stage/Outdoor/Party

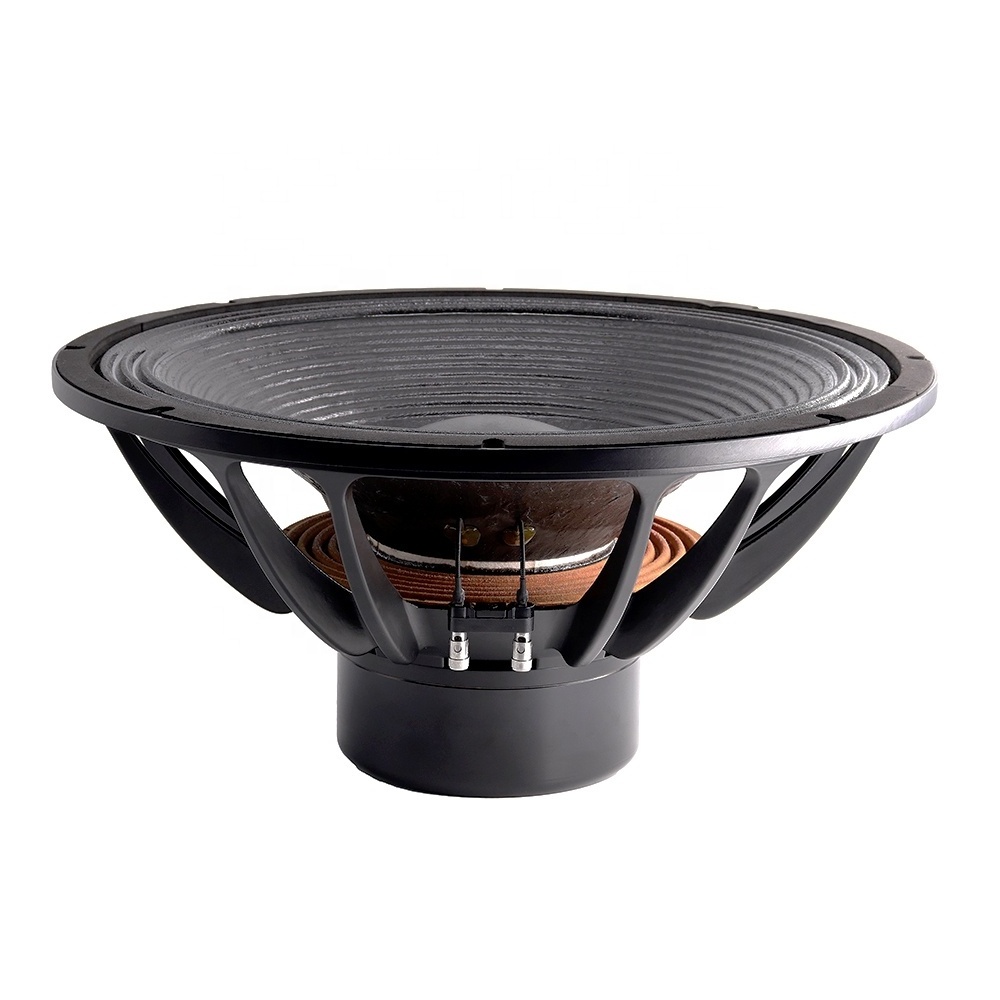

Wholesale Audio Accessories 4000W 4Ohm PA Sound System Big Power 21 inch Neo Subwoofer Active Speaker
Products Description
Applicable use
Use for pro DJ speakers, pro PA speakers, pro karaoke speakers, live sound speakers, fixed installation speakers, studio monitors and home audio speakers.
SEE MORE.
Product Paramenters
|
SPECIFICATIONS
|
|
|
|
|
Nominal Diameter
|
530/21
|
mm/in
|
|
|
Rated impedance
|
4
|
ohm
|
|
|
Minimum Impedance
|
5.2
|
ohm
|
|
|
Power Handing
|
1000
|
W
|
|
|
AES Power Handing
|
2000
|
W
|
|
|
Max Power Handing
|
4000
|
W
|
|
|
Sensitivity
|
94
|
dB
|
|
|
Frequency Range
|
29-1000
|
Hz
|
|
|
Voice Coil Diameter
|
152/6.0
|
mm/in
|
|
|
Winding Material
|
Copper
|
|
|
|
Former Material
|
Glass Fibre
|
|
|
|
Winding Depth
|
32/1.25
|
mm/in
|
|
|
Megnetic Gap Depth
|
12/0.47
|
mm/in
|
|
|
Megnetic Material
|
Neodymium Inside Slug
|
|
|
|
THIELE & SMALL PARAMETERS
|
|
|
|
|
Resonance frequency
|
Fs
|
28
|
Hz
|
|
Dc resistance
|
Re
|
3.8
|
ohm
|
|
Mechanical factor
|
Qms
|
6.53
|
|
|
Electrical factor
|
Qes
|
0.40
|
|
|
Total factor
|
Qts
|
0.37
|
|
|
BL factor
|
Bl
|
28
|
T.M
|
|
Effective Moving mass
|
Mms
|
489
|
g
|
|
Effective Cas air load
|
Vas
|
261
|
liters
|
|
Effective piston area
|
Sd
|
1680
|
cm2
|
|
Inductance
|
Le
|
1.6
|
mh
|
|
Max linear excursion
|
Xmax
|
±14
|
mm
|
|
|
EBP
|
70
|
Hz
|
|
MOUNTING AND SHIPPING
|
|
|
|
|
Overall Diameter
|
550/21.6
|
mm/in
|
|
|
Bolt Circle Diameter
|
528/20.7
|
mm/in
|
|
|
Mount Baffle Cut-out
|
506/19.9
|
mm/in
|
|
|
Depth
|
261/10.3
|
mm/in
|
|
|
Flange And Gasket Thickness
|
15/0.59
|
mm/in
|
|
|
Net Weight
|
18.7
|
kg
|
|
|
Shipping Weight
|
21
|
kg
|
|
|
Shipping Box
|
620x620x320 mm
|
24.4x24.4x12.6 in
|
|
Details Images
4000Watts C
ontinuous Program Power Capacity
The high end neodymium magnet assembly was chosen to increase sensitivity and power handling.
We use the highest grade black glue that handles extremely high temperatures which allows our woofer to handle even more power than they are rated.
