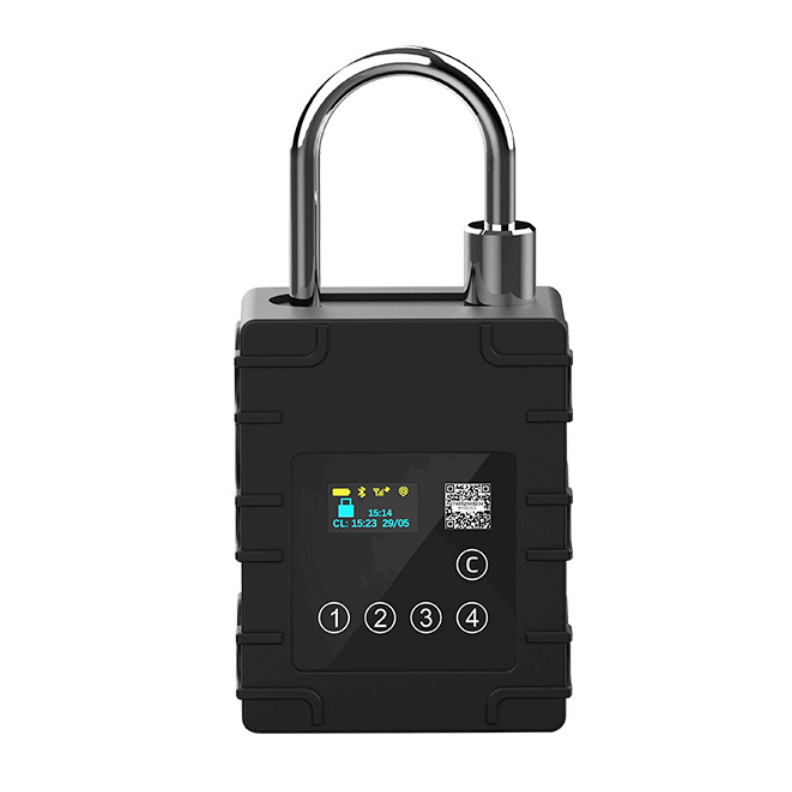

Smart GPS E Lock Digital Password Remote Control Padlock

G-300P

Smart GPS Padlock

Size: 108mm*86mm*47.6mm

No keyhole on lock body.

The lock body is made of die-cast aluminum alloy, the display window is made of 5MM thick tempered glass, and the outside of the lock body is provided with a silicone protective cover.

The lock shackle is inserted into the lock body, and when the electronic lock is unsealed, the lock shackle can be pulled.

Material of lock shackle: Stainless steel (Φ8MM)

Lock body material: Die-cast aluminum alloy

Support RFID card sealing, unsealing, wake-up operations

Frequency: 13.56MHZ

Standard: ISO14443A

Support GPRS communication, quad-band 850/900/1800/1900MHZ; (4G version can be selected, there are a variety of 4G network band versions in different countries and regions, and 4G global version, in order to ensure the best cost performance, customers need to provide country and region information, it is convenient to match the network standard and frequency band.  (Optional support for AES256 encryption.)

Support BLE 5.0 communication and SMS management.

Support GPS, BeiDou/GLONASS (Optional)

Positioning accuracy ≤10m

OLED display, which can visually display information such as power, signal, lock status, etc.

APP, Web, Password, RFID Card, SMS, Geofence

■ The lock body contains anti-disassembly detection. When the lock body is disassembled, it will trigger the start-up alarm function to report the dismantled information to the platform.

■ The lock shackle is embedded with anti-shear detection. When the lock shackle is cut off, the alarm function will be triggered and the dismantled information will be reported to the platform.

Under the condition that no hardware failure occurs, the omission rate of alarm information (including omission and mistake) is <0.01%.

■ The lock body is made of high-strength die-casting aluminum alloy, which is not easy to be damaged. At the same time, it adopts mechanical and electronic double locking, which has the dual functions of mechanical sealing and electronic sealing.

■ The lock can resist the collision and vibration that may occur in daily use (excluding deliberate destruction such as man-made violent hammering)

Built-in 9600MAH Rechargeable Lithium Battery

Battery life 7-180 days (depending on the report time interval setting and working environment such as signal quality and operation frequency.)

Intelligent power distribution management, with a low-power working mode, automatically avoids the problem that the lock cannot be unlocked due to lack of power when reaching the destination.

Built-in flash memory card, can store 8000 blind spot data.

Operating temperature: work at an ambient temperature of -20℃to 70℃; (low temperature battery version can reach -30°C)

Storage temperature: -40℃～+85℃

Waterproof grade: IP67

Humidity: The device is not damaged under 95% non-condensing humidity test environment

Mechanical vibration: under the test environment of half-cycle sine wave 30g acceleration vibration lasting 11 milliseconds to ensure that the equipment is not damaged, in line with the methods specified in IEC60068-2-2;

Random vibration: The security smart lock needs to be able to ensure that the device is not damaged under the test environment of -20 to +70 ℃, and the random vibration acceleration of all axial vibration reaches 3g for 2 hours. The test conforms to the method specified in IEC60068-2-53 ;

Salt spray: The security smart lock can ensure that the device is not damaged in the salt spray environment. The test meets the method specified in IEC60068-2-11;

Electromagnetic field: The security smart lock can ensure the integrity of the data and the equipment is not damaged under the test environment with a high magnetic field strength of 50V/m for 60 seconds; the security smart lock can withstand the 25kV electrostatic discharge test and ensure the integrity of the data and the equipment is not damaged.

Charging DC5.5 interface (DC5V/3A)
