Quick Details
-
Model Number:
-
Bus rocker switch
-
Max. Current:
-
30A
-
Mechanical Life:
-
50000 Cycles
-
Function:
-
ON-OFF
-
Products name:
-
Rocker Switch
-
Certificate:
-
CE CCC CQC TUV VDE
-
Lamp color:
-
Orange\Red\Blue\Green\yellow
-
lamp voltage:
-
12V/24V/36V/110V/220V/others
-
Working Temperature:
-
-25℃~+125℃
-
Rating:
-
30A 250V
-
Material:
-
PA66/PC
-
Pins:
-
2pin/3pin/4pin/6pin
-
IP Rating:
-
IP68
-
Certification:
-
CQC CE TUV
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Haifei
-
Model Number:
-
Bus rocker switch
-
Max. Current:
-
30A
-
Mechanical Life:
-
50000 Cycles
-
Function:
-
ON-OFF
-
Products name:
-
Rocker Switch
-
Certificate:
-
CE CCC CQC TUV VDE
-
Lamp color:
-
Orange\Red\Blue\Green\yellow
-
lamp voltage:
-
12V/24V/36V/110V/220V/others
-
Working Temperature:
-
-25℃~+125℃
-
Rating:
-
30A 250V
-
Material:
-
PA66/PC
-
Pins:
-
2pin/3pin/4pin/6pin
-
IP Rating:
-
IP68
-
Certification:
-
CQC CE TUV
Product Description

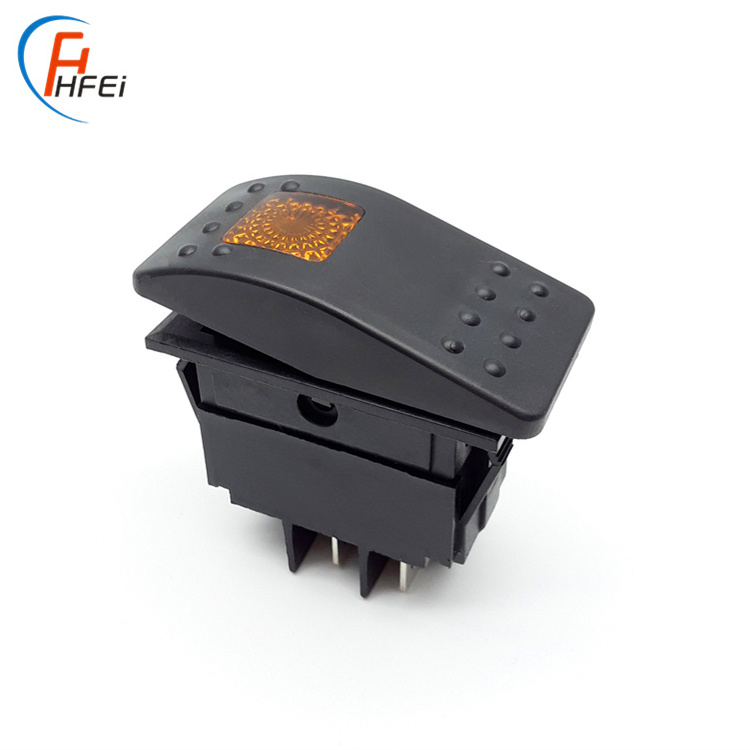

waterproof illuminated 12V boat panel mounting 8 gang rocker switch panel
Haifei rocker switch offer a high switching current in a compact design. It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing. They have high quality for long life at heavy loads and industry-standard mounting dimensions. This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on .
| Items | Rocker switch details |
| Housing material | PA66 |
| Button material | PC |
| Contacts material | Copper with compound silver |
| Rating | 3A 6A 10A 15A 250VAC |
| Temperature | -40℃ to 125℃ |
| Dielectric Strength | 1500Vrms min |
| Contact Resistance | <30MΩ |
| Insulation Resistance | >100MΩ |
| Flammability | UL94V0 |
| Eletrical life | 50000 cycles |
| Mechanical life | 50000 cycles |
| Referance standard | EN 61058-1 |
| Approvl marks | CE CQC CCC TUV ROHS ENEC VDE UL |
