Quick Details
-
SEER:
-
13
-
Compressor:
-
Rotary GMCC and Scroll Copeland
-
Outdoor coil type:
-
Copper tube and Aluminum fin
-
Type:
-
Top discharge condenser unit, Central air conditioner
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
United States, Indonesia
-
Marketing Type:
-
New Product 2020
-
Certification:
-
ce, RoHS, ETL, ISO
-
Brand Name:
-
Midea
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Power supply:
-
208-230V/1Ph/60Hz
-
Model range:
-
18000 to 36000BTU(1.5,2,3,3.5 ton)
-
SEER:
-
13
-
Compressor:
-
Rotary GMCC and Scroll Copeland
-
Outdoor coil type:
-
Copper tube and Aluminum fin
-
Type:
-
Top discharge condenser unit, Central air conditioner
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
United States, Indonesia
-
Marketing Type:
-
New Product 2020
-
Certification:
-
ce, RoHS, ETL, ISO
-
Brand Name:
-
Midea

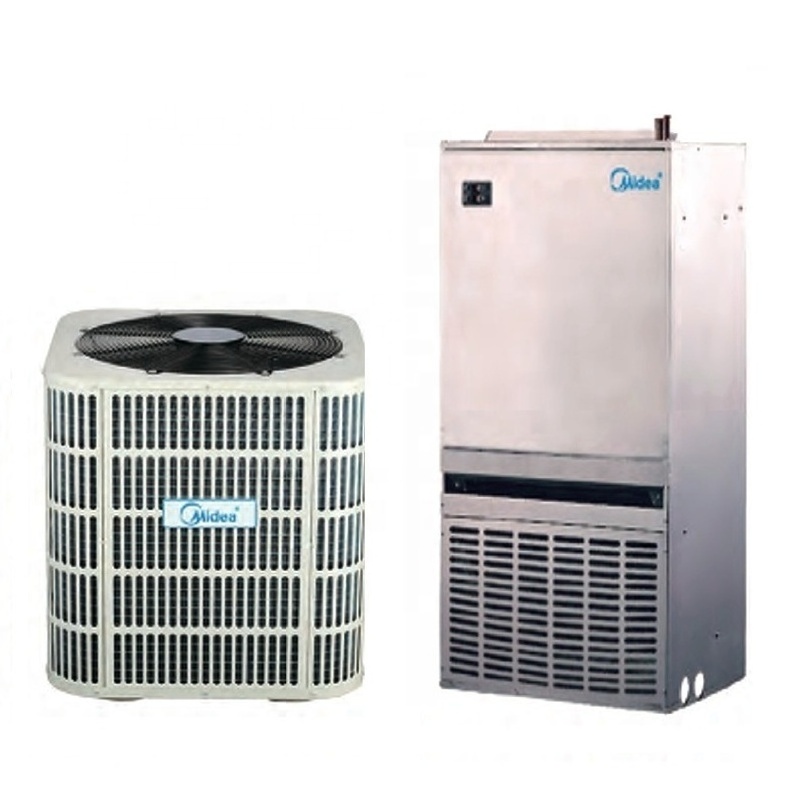

Condenser unit with wall mounted air handlers
cooling or heat pump air conditioners
Top discharge condensing unit - Unitary light commercial air conditioning
Condenser unit with wall mounted air handlers
1.SEER13,14,16 available
2.Refrigerant R410a, 60Hz
3.Cool only,heat pump for choice
4.Scroll Copeland compressor, or Rotary GMCC compressor, or Scroll LG compressor, Rotary HIGHLY
Features (Condenser unit with wall mounted air handlers ) :
Cooling only, Heat Pump Outdoor Air Conditioner
- Compatible with R410A refrigerant.
- High quality.
- Advanced-design heat exchangers engineered with inner- groove copper pipe and aluminum fins.
- Anti-rust, painted galvanized steel cabinet. 500-hour salt spray tested.
- Compact designs, small footprints.
- Grille/motor mounts help quiet fan operation.
- 24V low-voltage control for added safety.
- Internal safeguards protect compressor against high pressure, low pressure and power surge.
- Unique coil temperature protection for heat-pump.
- Optional part: filter drier and sound enclosure.
Indoor Air Handlers
- Anti-rust, painted galvanized steel cabinet. 500-hour salt spray tested.
- Fully insulated design minimizes indoor noise levels.
- Removable front panel allows easy access for maintenance and trouble- shooting. Blower and coil assemblies slide out.
- Dual drainage spouts for versatile installation.
- 3-speed fan for enhanced comfort.
- Multiple airflow designs: Vertical up-flow/vertical down-flow/horizontal left-flow and horizontal right-flow.
- Auxiliary electric heaters(5kW, 7.5kW, 10kW, 15kW, 20kW) with optional filters and thermostats.
- 16 SEER units use high-efficiency DC motors.
- ARI Certified and ETL Listed.
Specification (Condenser unit with wall mounted air handlers ) :
For more information about Midea condenser unit Central air conditioner , visit us at VISIONBM.COM or contact us !
Copeland/ LG/ GMCC/ HIGHLY/ Sanyo/ Panasonic/ Toshiba compressor condenser unit air conditioner for options.
