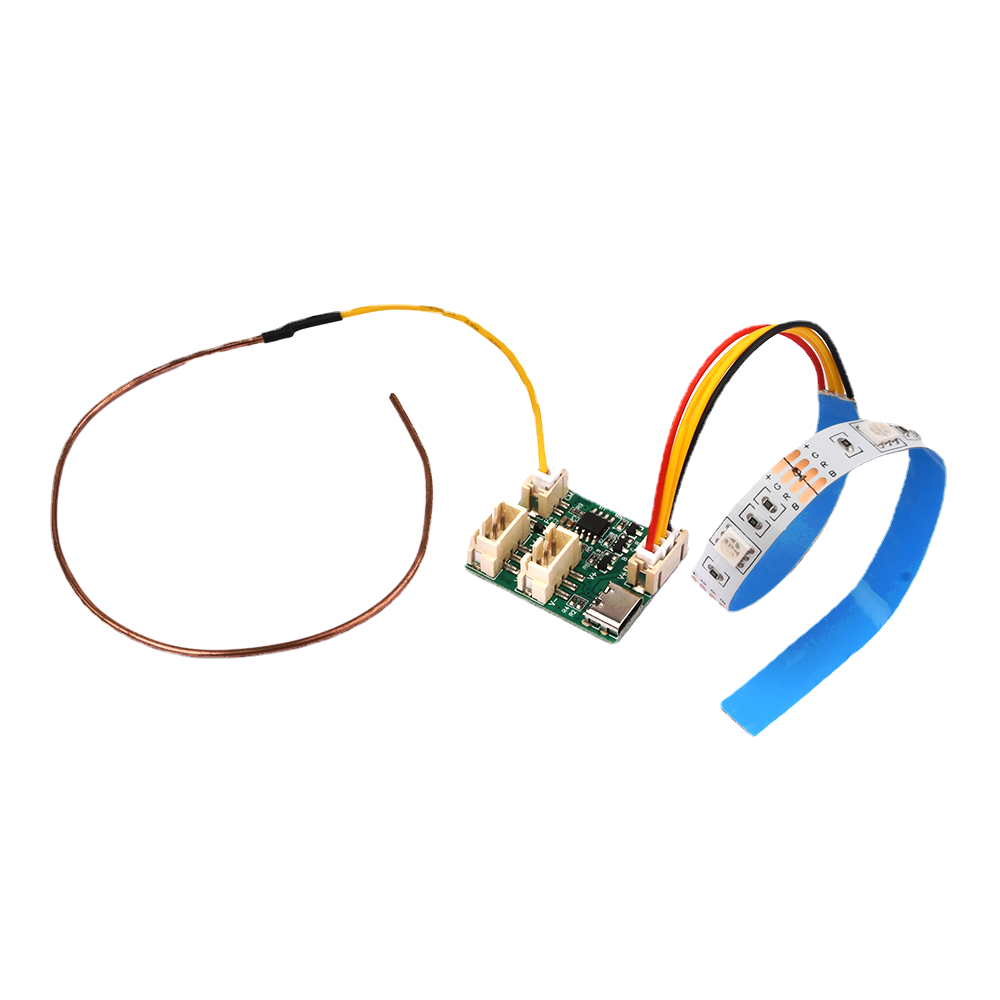

RGB 7 Colors Separation Touch Induction Switch 5v-12v Touch Induction Coil Light Strip Module Luminous Table River Table Driver

RGB 7 Colors Separation Touch Induction Switch 5v-12v Touch Induction Coil Light Strip Module Luminous Table River Table Driver

RGB 7 Colors Separation Touch Induction Switch 5v-12v Touch Induction Coil Light Strip Module Luminous Table River Table Driver Board

Features:

1. Easy to use, simple operation, connection and power can be used.

2. This touch-sensitive river table module is made of high quality materials, stable and reliable, easy to install, no heat, low power consumption.

3. The maximum load can be connected to the light belt within 5V 2A current, which can support 12V, and 12V light belt is required for 12V power supply.

4. Wide range of application, suitable for a variety of materials: wood plexiglass acrylic resin stone plastic cardboard, not suitable for metal materials.

5. The sensor thickness of the partition is about 3 cm, the thinner the thickness of the partition, the higher the sensitivity, and the light will be illuminated according to the colorful color cycle every time you touch it.

Specifications:

Type: RGB color river light module

Trigger mode: Touch the switch

Input voltage: DC 5V (12V can be supported, 12V light belt is required for 12V power supply)

Power supply interface: TYPE-C or XH2.543P plug

LED lamp power supply voltage: factory DC 5V (12V power supply, use 12V lamp belt)

Maximum working current of a single module: ≤120mA

Size: 32mm*21mm*10mm

How to use:

1. Plug the 2P touch socket into the module first.

2. Connect the 4P RGB LED socket.

3. Then connect the TYPE-C or 3P XH2.54 plug to power supply, and the LED light will be slightly lit.

4. When the rear light is illuminated by the touch sensor, the rear light is off when it leaves the touch range, and the light will be illuminated according to the colorful color cycle every time it is touched.

Attention:

The first use must first connect the 2P touch plug, and then connect the LED socket and power socket power, touch the need to self-check the use of the environment, such as first connect the power supply, and then touch the plug will not work normally, you need to re-power on the self-test.

Shipping list:

1X module

1X coil (optional)

1X light strip (optional)
