- Product Details
- {{item.text}}
Quick Details
-
Rated power:
-
400/500W
-
Max. power:
-
410/510W
-
Rated voltage:
-
12V 24V
-
Start-up wind speed:
-
2.0m/s
-
Rated wind speed:
-
11m/s
-
Survival wind speed:
-
50/45m/s
-
Rotor dismeter:
-
1.75m
-
Blade quantity:
-
3pcs
-
Blade material:
-
Nylon fiber
-
Engine model:
-
Three-phase ac permanent magnet motor
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MORNING-E
-
Model Number:
-
M3
-
Rated power:
-
400/500W
-
Max. power:
-
410/510W
-
Rated voltage:
-
12V 24V
-
Start-up wind speed:
-
2.0m/s
-
Rated wind speed:
-
11m/s
-
Survival wind speed:
-
50/45m/s
-
Rotor dismeter:
-
1.75m
-
Blade quantity:
-
3pcs
-
Blade material:
-
Nylon fiber
-
Engine model:
-
Three-phase ac permanent magnet motor

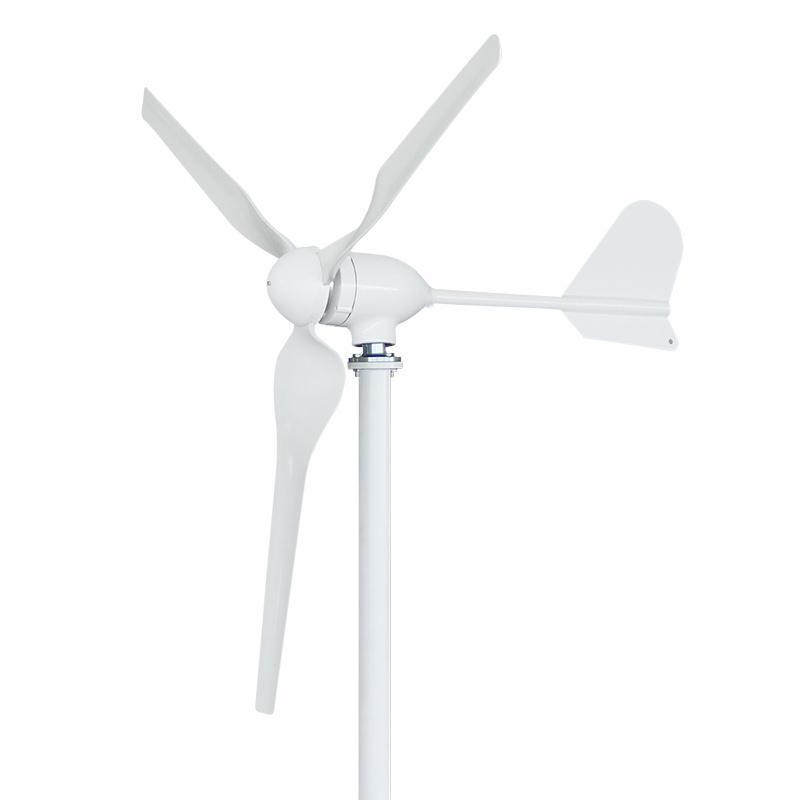

M3 3pcs 400W 500W Windmill Power Generator Three-phase Ac Permanent Magnet Motor 12V 24V
| Item | M3-400 | M3-500 |
| Rated power | 400W | 500W |
| Max. power | 410W | 510W |
| Rated voltage | 12V/24V | 24V |
| Start-up wind speed | 2.0m/s | 2.0m/s |
| Rated wind speed | 11m/s | 11m/s |
| Survival wind speed | 50m/s | 45m/s |
| Main Frame Net Weight | 11.2kg | 11.5kg |
| Rotor dismeter | 1.75m | 1.75m |
| Blade quantity | 3pcs | |
| Blade material | Nylon fiber | |
| Engine model | Three-phase ac permanent magnet motor | |
| Braking method | Electromagnetism | |
| Wind adjustment | Automatic adjustment of the wind | |
| Operating humidity | -40'C~80'C | |
Product Specification:
1.
With low starting wind speed, small size, beautiful appearance and low vibration;
2.
Using user-friendly flange installation design, easy installation and maintenance;
3.
The blades are made of nylon fiber with optimized pneumatic configuration design and structure design equipped. The blades have the benefits of the low starting wind speed, high wind power coeffcient, increase the annual power generation;
4.
The generator adopts payent technology of the permanent magent aotor AC motor, with special rotor design, reduce the torque of generator group effectively, only 1/3 of the general motors, making the wind turbine and generator have better match characteristic and reliability of the unit operation at the same time;
5.
With max. power tacking, intelligent microprocessor control, adjust the current and the voltage effectively.
1. Applications Of Wind Generator
A.
home and remote cabin
B.
Telecommunication tower
C.
Solar &wind hybrid system
D.
Marine boat& yachts
E.
Monitoring station
F.
Water pumping
2. Features Of Wind Generator
A.
Start in Breeze Wind, Quiet
B.
Aluminum Die-Casting body, Durable
C.
PHELPA DODGE COPPER Wire, NdFeB PMG
D.
Carbon Fiber Blades, Aerodynamic Design
E.
Maintenance free, only two Moving parts
3. Advange Of Wind Generator
Customized
--
We are the manufacturer! sample &OEM&ODM are available!
Safety
--
We have own test chart, all of our products have been rigorously tested in the factory.
Certification
--
We have CE, FCC, ROHS and quality management system certification.
High Quality
--
Our company uses the most advanced equipment to make the best quality products.
