Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Size:
-
2600*1000*1200mm
-
Certification:
-
ISO
-
Lifting Motor Power:
-
1000w
-
Rotating Speed:
-
3500r/min
-
Drive Motor Power:
-
1000w
-
Overall Sizes:
-
2600*900*1200mm
-
Cargo Box Sizes:
-
1400*900*400mm
-
Weight:
-
520Kg
-
Loading Capacity:
-
1000kg
-
Operating Speed:
-
15-25Km/h
Quick Details
-
Power:
-
> 1000W
-
Voltage:
-
48V
-
Brand Name:
-
Jinwang
-
Place of Origin:
-
Henan, China
-
Size:
-
2600*1000*1200mm
-
Certification:
-
ISO
-
Lifting Motor Power:
-
1000w
-
Rotating Speed:
-
3500r/min
-
Drive Motor Power:
-
1000w
-
Overall Sizes:
-
2600*900*1200mm
-
Cargo Box Sizes:
-
1400*900*400mm
-
Weight:
-
520Kg
-
Loading Capacity:
-
1000kg
-
Operating Speed:
-
15-25Km/h
Product Description

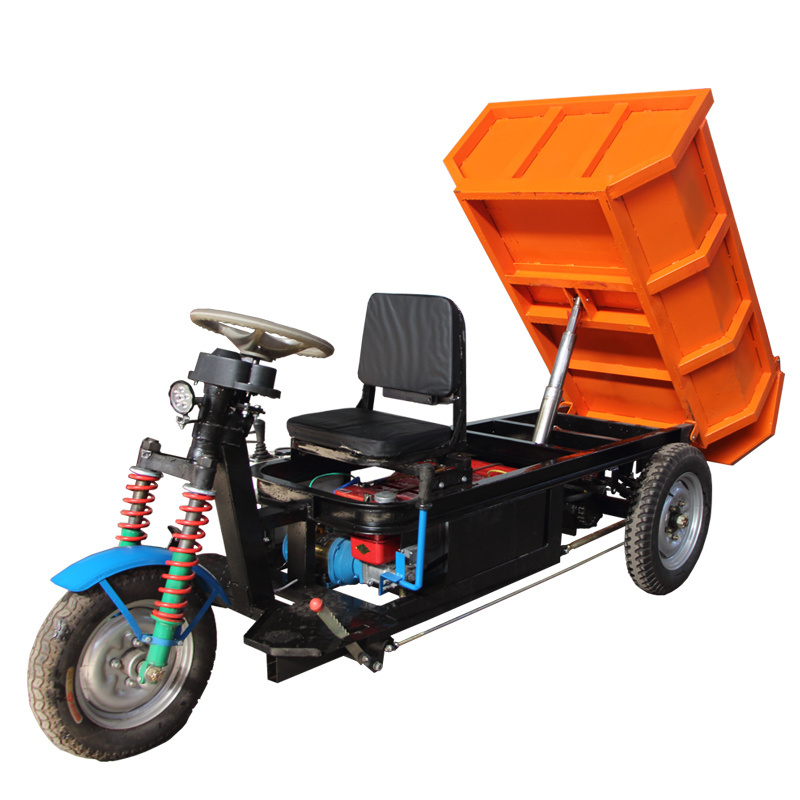

chinese three wheel motorcycle, cheap cargo electric dump motorcycle, electric dumper tricycle prices
three wheel motorcycle
is the leading product of our factory. It use lead-acid batteries as energy, which caters to the trend of low carbon and environmental protection. Due to the performance of this product, it is especially suitable for mine transportation, farming, engineering, and on-site transportation operations.
1. Energy saving and environmental protection
Use battery as energy, no pollution.
2. heavy loading capacity
we have 1 ton, 1.5 ton, 2 ton and 3 ton loading capacity.
3. Sturdy and durable
Selection of quality raw materials for processing and manufacturing.
4. Simple operation and maintenance.
No driving experience is required, just get in the car to operate.
Simple structure and easy maintenance.
Product Parameters
|
Model
|
ZY-155
|
ZY-165
|
ZY-180
|
ZY-190
|
|||
|
Loading capacity
|
1000kg
|
1500kg
|
2000kg
|
3000kg
|
|||
|
Voltage
|
48V
|
60V
|
72V
|
72V
|
|||
|
Overall size
|
2600*900*1200mm
|
3000*1100*1200mm
|
3300*1200*1400mm
|
3600*1200*1400mm
|
|||
|
Cargo box sizes
|
1500*1000*400mm
|
1600*1000*500mm
|
1800*1200*500mm
|
2000*1200*500mm
|
|||
|
Weight
|
520kg
|
850kg
|
1000kg
|
1400kg
|
|||
|
Battery model
|
185A
|
|
|
|
|||
|
Rear tire type
|
450-14
|
500-14
|
600-16
|
700-16
|
|||
|
Front tire type
|
400-14
|
450-14
|
450-14
|
450-14
|
|||
|
Work platform height
|
600mm
|
700mm
|
720mm
|
730mm
|
|||
|
Operating speed
|
15-25km/h
|
|
|
|
|||
|
Charging time
|
6h-8h(1st is12h)
|
|
|
|
|||
|
Working time
|
10h-12h
|
|
|
|
|||
|
Lifting Motor Power
|
1000w
|
|
|
|
|||
|
Driving motor Power
|
1000w
|
1500w
|
3000w
|
7000w
|
|||
Detailed Images
1. Light switch
2.
Electricity meter
3. reverse switch
1. hand brake
2.hydraulic lifting lever
1. foot brake
2. foot accelerator
Hydraulic lifting system
The lifting motor 1000w together with the hydraulic oil pump, is the main part of the hydraulic lifting system.
The hydraulic cylinder can rise to 3 sections and maximum tilt angle of 45 degrees.
The lifting lever can control the lift and down of the hydraulic cylinder, which can achieve the automatically lifting.
A variety of configurations are available
For more configuration, please contact me for more information.
Packing and shipping
LCL (Less than container load)
FCL(full container load)
