The blade advantage:Have big air flow, no deformation,no fracture, no dust.Note: Blade material also have galavanized ,304 stainless steel, aluminum alloy for option.
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGLIAN
-
Model Number:
-
HLP800
-
Product name:
-
Ventilation Exhaust Fan
-
Function:
-
Cooling Ventilation
-
Material:
-
275g Coating Weight Galvanized Sheet
-
Motor:
-
100% Copper Motor
-
Frequency:
-
50Hz/60 Hz
-
Blade:
-
6pieces of stainless steel
-
Noise:
-
<70dB
-
Brand:
-
HONGLIAN
-
MOQ:
-
10SETS
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGLIAN
-
Model Number:
-
HLP800
-
Product name:
-
Ventilation Exhaust Fan
-
Function:
-
Cooling Ventilation
-
Material:
-
275g Coating Weight Galvanized Sheet
-
Motor:
-
100% Copper Motor
-
Frequency:
-
50Hz/60 Hz
-
Blade:
-
6pieces of stainless steel
-
Noise:
-
<70dB
-
Brand:
-
HONGLIAN
-
MOQ:
-
10SETS

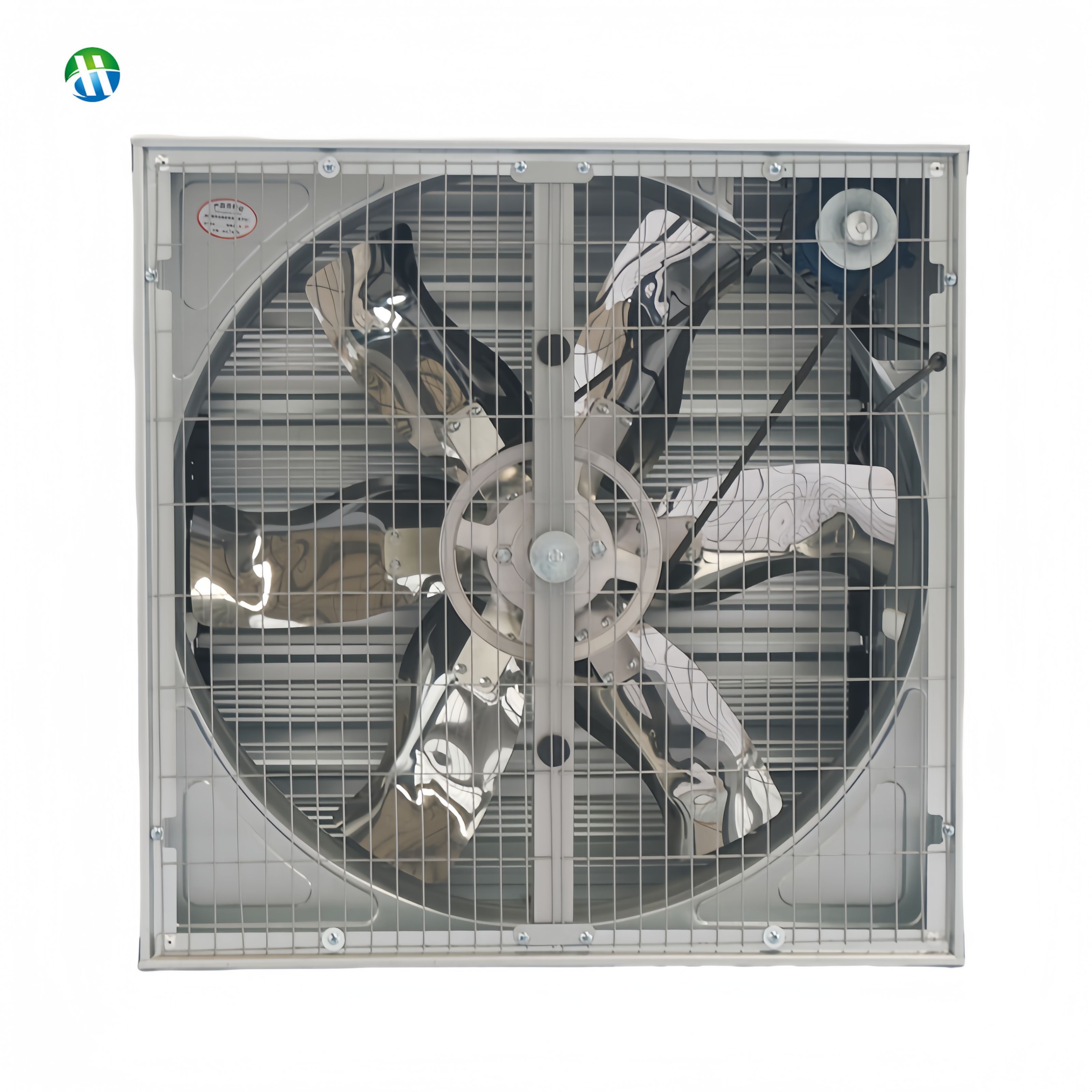

Big High Speed Push Pull Industrial Ventilation Box Fan Greenhouse Poultry Farm Exhaust Fan,
HLP800MM 30 inch Wall Mount Box Type ventilation exhaust fan for warehouse greenhouse poultry farm
Products Description
Large Wall Mounted Poultry Farm Ventilation Exhaust Fan Greenhouse cooling Fan Industrial Ventilation Exhaust Fan
Main Features：
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring the fans quality.
3) Complete CNC production line, the accuracy of assembling holes is 100%, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring the fans quality.
3) Complete CNC production line, the accuracy of assembling holes is 100%, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
|
Model
|
Blade Diameter
mm
|
Voltage
v
|
Input Power
kw
|
Motor speed
rpm
|
Air flow
m³/h
|
Noise
db
|
Hight
mm
|
Width
mm
|
Thickness
mm
|
|
HLP-800
|
700
|
380/220
|
0.37
|
1400
|
20000
|
≦64
|
800
|
800
|
450
|
|
HLP-1000
|
900
|
380/220
|
0.75
|
1400
|
30000
|
≦64
|
1000
|
1000
|
450
|
|
HLP-1380
|
1270
|
380/220
|
1.1
|
1400
|
40000
|
≦64
|
1380
|
1380
|
450
|
|
HLP-1530
|
1400
|
380/220
|
1.5
|
1400
|
47000
|
≦64
|
1530
|
1530
|
450
|
Details Images
Fan Blades
Material:Krupp 430 stainless steel, thinckness 1.2mm. One times punching formed attractive and durable.
Opening system-Centrifugal System
1.Material: High quality Nylon.
2.Guide Rod:304 stainless steel with special material outside, high strength, no rust.
3.Rivet: 304 stainless steel,wear-resisting, no rust. It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
Bearing
Honglian exhaust fans bearing adopt imported double-row bearing which have special waterproof design, high strength, low noise,
free maintenance and long service life.
free maintenance and long service life.
Belt
Sanlux belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair Modified B type belt,so that service life increase 3times than Type A
Shutters
1. Material: hot-dip galvanized sheet, the thickness of zinc is 275g/㎡.
2. Thickness: 1.5mm in the middle, 0.8mm in others
3.Shutter mount: high-quality nylon. High anti-corrosion performance, flexible opening, long service life, no deformation, no rust, stable operation
3.Shutter mount: high-quality nylon. High anti-corrosion performance, flexible opening, long service life, no deformation, no rust, stable operation
Motor
1. Brand: Chinese famous motor；Siemens motor, ABB motor and WEG motor
2.Motor Protection Grade: IP55
3. Isulation Class: F grade
Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack
protection device which would power off when shortage of electricity.
3. Isulation Class: F grade
Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack
protection device which would power off when shortage of electricity.
Aluminum wheel
This drive wheel are made of High strength aluminum-magnesium alloy by die-casting which stable operation, no shaking
Case Display
The exhaust fan are widely used in Poultry house,
Industrial workshop,
Agriculture ect., Anywhere need natural ventilation this fan is the good choice.
