Quick Details
-
Model Number:
-
WLCA12-2(12-2-Q)
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-10°C to +80°C
-
Max. Current:
-
Max. 10A
-
Certificate:
-
CCC CE RoHS
-
Contact form:
-
1NC1NO
-
Color:
-
Grey
-
Material:
-
Strong Aluminum Cast Outer Shell
-
Feature:
-
Double Spring Inner Switch
-
Application:
-
Industrial Control
-
Electric life:
-
500,000 times above
-
Mechanical life:
-
20,000,000 operations
-
Contact resistance:
-
15m Max. (inital)
-
Actuator:
-
Roller
Quick Details
-
Max. Voltage:
-
380VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
WLCA12-2(12-2-Q)
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-10°C to +80°C
-
Max. Current:
-
Max. 10A
-
Certificate:
-
CCC CE RoHS
-
Contact form:
-
1NC1NO
-
Color:
-
Grey
-
Material:
-
Strong Aluminum Cast Outer Shell
-
Feature:
-
Double Spring Inner Switch
-
Application:
-
Industrial Control
-
Electric life:
-
500,000 times above
-
Mechanical life:
-
20,000,000 operations
-
Contact resistance:
-
15m Max. (inital)
-
Actuator:
-
Roller
380VAC 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller arm 10a travel limit switch
1. 380VAC 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller arm 10a travel limit switch features and application:
Features:
Double-circuit limit switch,is widely used;
Firm alumium alloy enclosure;
High mechanical strength;
Structure preventing oil,water and pressure;
Indicating plating with setting position is installed in it,so it is easy to maintain;
Kinds of actuators is taken convenience for using;
Built-in contact stand has double-reed,so it has long mechanical life;
Application:
Widely used in mechanical equipment,automatic machine,and instrument,electro motion tool etc.
2. 380VAC 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller arm 10a travel limit switch characteristics :
Characteristics:
|
Operation speed |
1mm-2m/s |
|
Operating frequency |
Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
|
Contact resistance |
15mΩ max. (initial value) |
|
Insulation resistance |
100mΩ min. (at 500VDC) |
|
Dielectric strength |
1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
|
|
2200VAC, 50/60 HZ for 1 minute between current carrying
|
|
|
2200VAC, 50/60 HZ for 1 minute between each terminal and ground |
|
Vibration |
10-55HZ,1.5mm double amplitude |
|
Shock |
Mechanical durable: 1, 000m/Sec2 (about 100GS)
|
|
Ambient temperature |
-10°C to +80°C |
|
Life |
Mechanical: 15,000,000 operations above
|
|
Weight |
About 275g |
|
Degree of protection |
IP67 |
Operating characteristics:
| Item | Characteristics |
| OF Max | 1360g |
| RF Min | 227g |
| PT Max. | 20º |
|
OT Min.
|
30º
|
| MD Max. | 12º |
| TF Max. | 2720g |
| TT Min. | 50º |
3. 380VAC 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller arm 10a travel limit switch dimension :
|

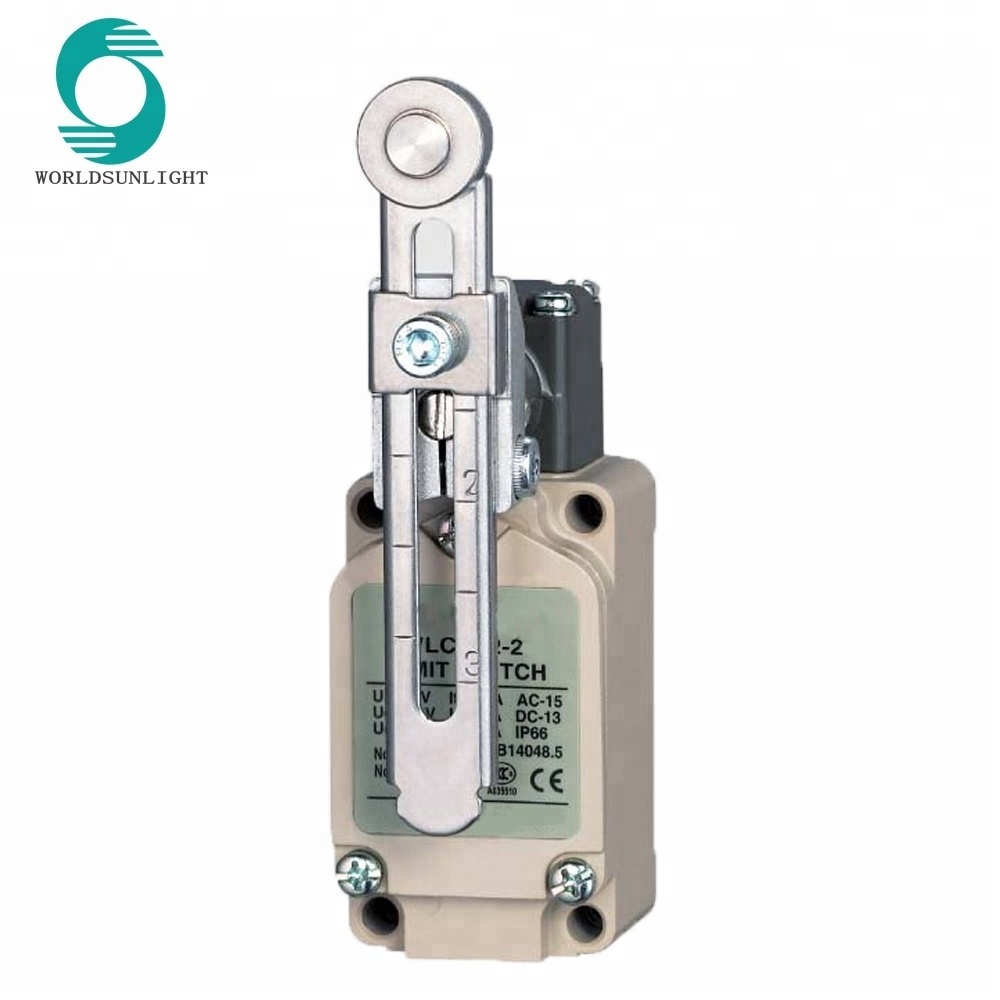

4. 380VAC 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller arm 10a travel limit switch pictures :
|
5. 380VAC 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller arm 10a travel limit switch certification:
|
6. 380VAC 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller arm 10a travel limit switch packaging:
Packaging Details:
Standard export packaging, also can do as customers' order
Delivery Detail: 3-15 days(depend on your order quantity)
|
7. 380VAC 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller arm 10a travel limit switch shipping:
TNT: about 5-7 working days could reach your side normally
EMS: need 10-15 working days to reach your side
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 working days could reach your side
FEDEX: normally 3-10 working days could reach US and European
