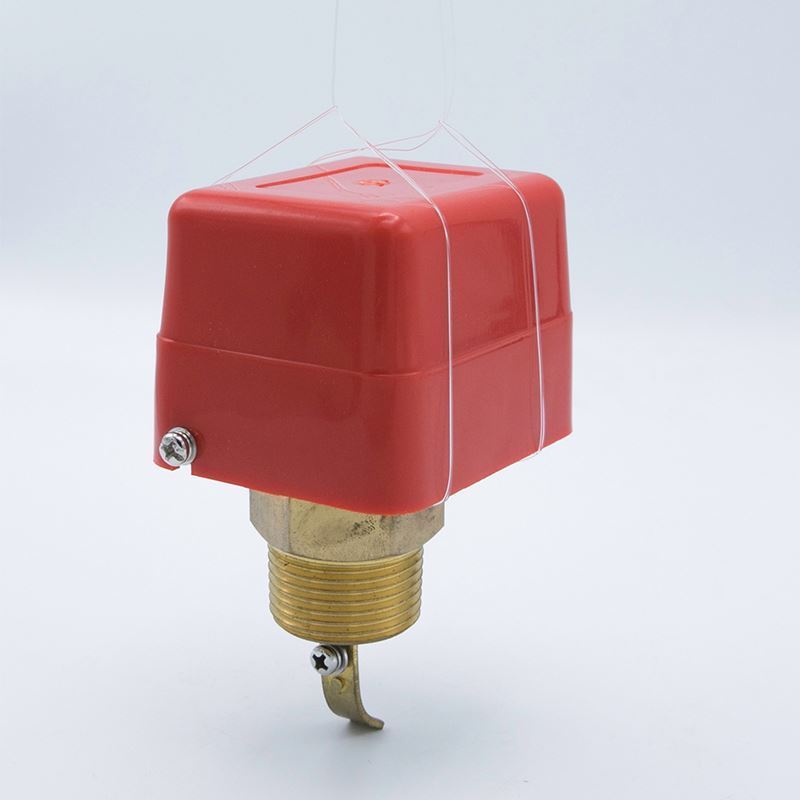

ILH311 series flow switch s a automatic element of protecting and controlling flow in the tube that are used in liquid lines carrying water , ethylene glycol or other liquid not classified as hazardous .Lquid temperature, range:5°C~120°C Max. working pressure：1.0mpa
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM avaliable
-
Model Number:
-
ILH331 series
-
Operating Temperature:
-
5~120°C
-
Connection size:
-
1"-3"
-
Contact material:
-
Brass
-
Product name:
-
Flow Switch
-
Type:
-
Target Flow Switch
-
Voltage:
-
DC12~24V 10%
-
Product material:
-
All-copper Shell
-
Working temperature:
-
High : 120
-
Pressure:
-
Max. 1MPa
-
Certification:
-
ECM
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
1.0Mpa
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
OEM avaliable
-
Model Number:
-
ILH331 series
-
Operating Temperature:
-
5~120°C
-
Connection size:
-
1"-3"
-
Contact material:
-
Brass
-
Product name:
-
Flow Switch
-
Type:
-
Target Flow Switch
-
Voltage:
-
DC12~24V 10%
-
Product material:
-
All-copper Shell
-
Working temperature:
-
High : 120
-
Pressure:
-
Max. 1MPa
-
Certification:
-
ECM
Products Description
Flow Switch ILH331
1 . Typical Flow Rates
|
Model
|
Connecting Size
|
Required to actuate switch(L/min）
|
|
|
|
|||
|
|
|
Min.flow
|
|
Max.flow
|
|
|||
|
|
|
flow
|
reducing flow
|
flow
|
reducing flow
|
|||
|
ILH331
|
1
|
18
|
21
|
45
|
50
|
|||
|
|
1-1/2
|
30
|
35
|
100
|
105
|
|||
|
|
2
|
50
|
58
|
150
|
155
|
|||
|
|
2-1/2
|
75
|
86
|
187
|
200
|
|||
|
|
3
|
100
|
115
|
225
|
260
|
|||
2 . Specifications
|
Rated Voltage ( V )
|
|
power Cosφ
|
125V AC
|
250V AC
|
|
|
Rated Amps ( A )
|
|
|
|
|
|
|
Non-inductive Current
|
|
1
|
15
|
15
|
|
|
Induction current
|
Rated Current
|
0.75
|
3.5
|
2.5
|
|
|
|
Locked Rotor Current
|
0.45
|
21
|
15
|
|
*Note:
The ILH331 Flow Switch Cannot be used where the liquid in the pipes will drip below the liquid's freezing point , causing an internal freeze-up.
*IMPORTANT :
ILH331 Flow Switches are designed for use only as operanting controls.Where an operating Control failure would result in personal injury and / or loss of property, it' s the responsibility of the installer to add devices ( Safety ,limitcontrols ) or systems ( alarm , supervisory systems ) that protect against or warn of control failure.
