Quick Details
-
Brand Name:
-
gol
-
Model Number:
-
GL-60W-2
-
Place of Origin:
-
China
-
Panel Dimensions:
-
523x425x43mm Folded size
-
Product Specifications:
-
Folding solar panel 60W 18V Mono
-
rated power:
-
60w
-
Rated voltage:
-
18v
-
Open circuit voltage:
-
21.06
-
Rated current:
-
3A
-
Fabric and color:
-
Polyester 900D, black
-
Optional outuput connector:
-
USB/DC/TYPE C/QC3.0 junction box
-
Bracket:
-
double bracket with stick
-
Certificate:
-
CE TUV
Quick Details
-
Cell size:
-
156mmx156mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
19.8%-22%
-
Brand Name:
-
gol
-
Model Number:
-
GL-60W-2
-
Place of Origin:
-
China
-
Panel Dimensions:
-
523x425x43mm Folded size
-
Product Specifications:
-
Folding solar panel 60W 18V Mono
-
rated power:
-
60w
-
Rated voltage:
-
18v
-
Open circuit voltage:
-
21.06
-
Rated current:
-
3A
-
Fabric and color:
-
Polyester 900D, black
-
Optional outuput connector:
-
USB/DC/TYPE C/QC3.0 junction box
-
Bracket:
-
double bracket with stick
-
Certificate:
-
CE TUV
Product Description
Specification
|

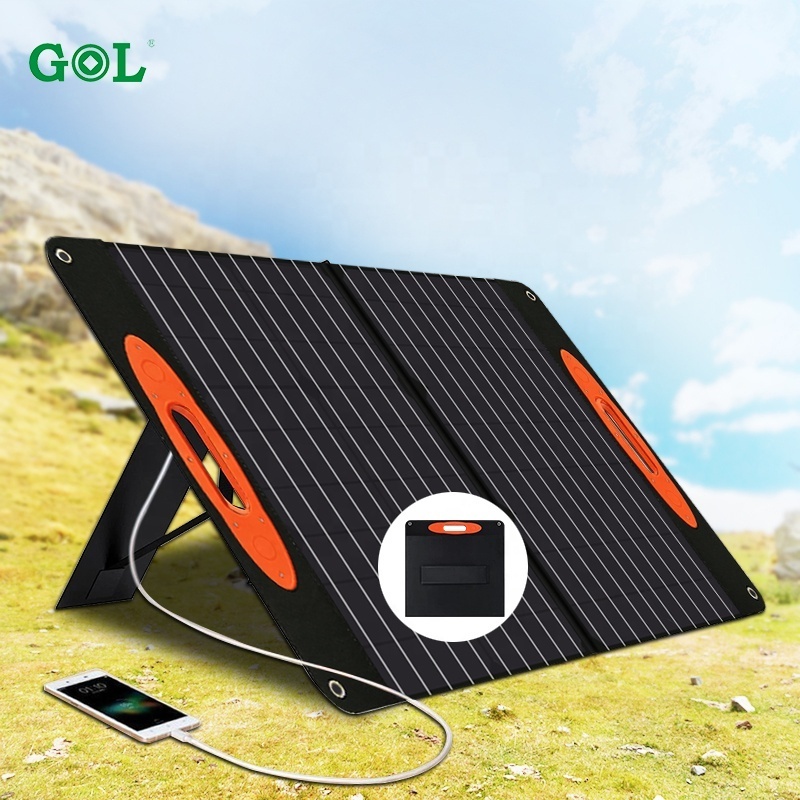

Folding solar panel specification
|
60W 18V Mono
|
|
Fabric and color
|
Polyester 900D, black
|
|
Handle color
|
Orange
|
|
Bracket
|
Double bracket with Velcro
|
|
Open size
|
852x523mm
|
|
Folded size
|
523x425x43mm
|
|
Net weight
|
2.6kgs
|
|
Optional outuput connector
|
USB/DC/TYPE C/QC3.0 junction box
|
|
Solar cells type
|
Monocrystalline cell,Efficiency: 19.8%—22%
|
|
Solar cells size
|
156x156mm / single cell more than 5.3W
|
|
Rated power
|
60W
|
|
Vmp
|
18V
|
|
Imp
|
3A
|
|
Voc
|
21.06
|
|
Isc
|
3.15
|
|
Operating temperature
|
-40℃-+85℃
|
|
Standard test conditions
|
Solar panel temperature: 25℃ Humidity: 10-90% AM=1.5
Halogen tungsten lamp illumination (38000LUX) Solar radiation intensity 1000W/㎡(100000LUX) |
|
Circuit temperature coefficient
|
0.05%/℃
|
|
Voltage temperature coefficient
|
-0.35%/℃
|
|
Power temperature coefficient
|
-0.45%/℃
|
|
Accessories
|
Cable1.5m DC5521
|
