Quick Details
-
Model Number:
-
Esmart 4 series
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
3120W
-
Max PV Voltage:
-
150VDC, 200VDC
-
Certificate:
-
CE, FCC, RoHS
-
Warranty:
-
2 years
-
MPPT efficiency:
-
≥99.5%
-
Charge mode:
-
3-Stage Mppt Charge
-
Color:
-
Red
-
Function:
-
MPPT Function
-
Rated Current:
-
50A/60A
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Protection Function:
-
Input and output over-voltage protection etc
-
Display:
-
High-definition LCD segment code backlight display
-
Product name:
-

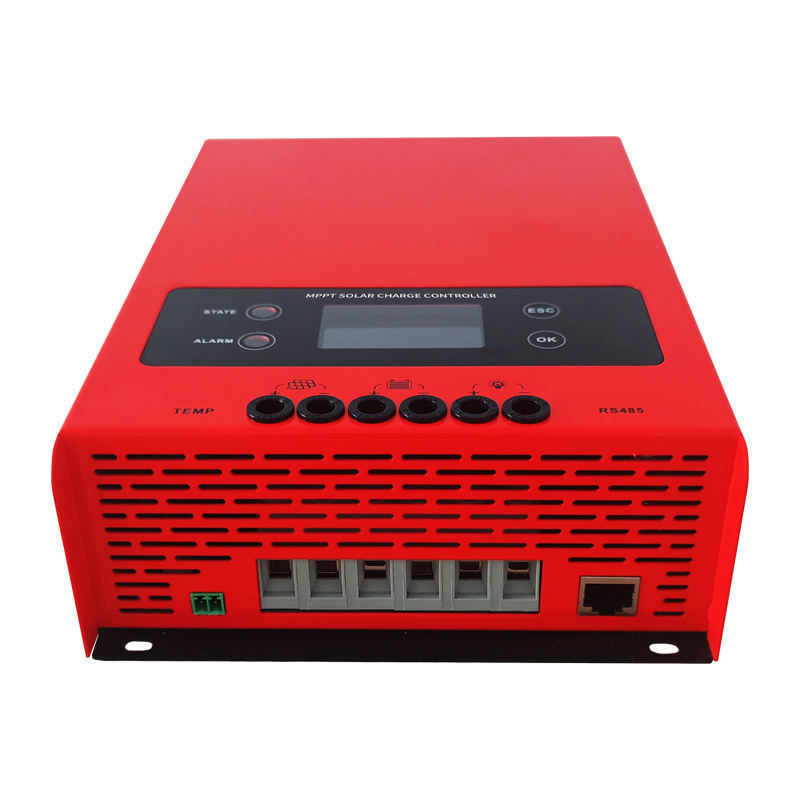

E smart 4 Series 12V 24V 36V 48V 50A 60A Mppt Charge Controller 48V
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Collector Controller, Lighting Controller, Solar System Controller, Solar Working Station, Voltage Controller
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
Esmart 4 series
-
Work Time (h):
-
24 hours
-
Max PV Power:
-
3120W
-
Max PV Voltage:
-
150VDC, 200VDC
-
Certificate:
-
CE, FCC, RoHS
-
Warranty:
-
2 years
-
MPPT efficiency:
-
≥99.5%
-
Charge mode:
-
3-Stage Mppt Charge
-
Color:
-
Red
-
Function:
-
MPPT Function
-
Rated Current:
-
50A/60A
-
System voltage:
-
12v/24v/36v/48v Automatic Recognition
-
Protection Function:
-
Input and output over-voltage protection etc
-
Display:
-
High-definition LCD segment code backlight display
-
Product name:
-
E smart 4 Series 12V 24V 36V 48V 50A 60A Mppt Charge Controller 48V
Product Description
Monitoring Way
PC monitor: Through connect RS485 cable to realize PC software monitoring
Mobile Phone monitor: Through WiFi module to realize APP cloud monitoring
Parameters
|
|
|
|
ESF48L50
|
ESF48L60
|
ESF48H50
|
ESF48H60
|
||||
|
Product Category
|
Controller type
|
|
Controller with Maximum Power Point Tracking (MPPT)
|
|
|
|
||||
|
|
MPPT efficiency
|
|
≥99.5%
|
|
|
|
||||
|
|
No-load static loss
|
|
0.5W~1.2W
|
|
|
|
||||
|
|
system voltage
|
|
Auto
|
|
|
|
||||
|
|
Cooling method
|
|
Fan cooling
|
|
|
|
||||
|
Input characteristics
|
PV Maximum Open Circuit Voltage (VOC)
|
|
150Vdc
|
|
200Vdc
|
|
||||
|
|
Start charging voltage point
|
|
3V higher than battery voltage
|
|
|
|
||||
|
|
Input low voltage protection point
|
|
2V higher than the current battery voltage
|
|
|
|
||||
|
|
Input overvoltage protection point
|
|
150Vdc
|
|
200Vdc
|
|
||||
|
|
Rated input power
|
12V system
|
650W
|
780W
|
650W
|
780W
|
||||
|
|
|
24V system
|
1300W
|
1560W
|
1300W
|
1560W
|
||||
|
|
|
36V system
|
1950W
|
2340W
|
1950W
|
2340W
|
||||
|
|
|
48V system
|
2600W
|
3120W
|
2600W
|
3120W
|
||||
|
Charging characteristics
|
Applicable battery type
|
|
Lead-acid battery / Li-ion battery
|
|
|
|
||||
|
|
Lithium battery activation function
|
|
Optional
|
|
|
|
||||
|
|
Charge rated current
|
|
50A
|
60A
|
50A
|
60A
|
||||
|
|
charging method
|
|
Lead-acid battery: fast charge, equal charge, floating charge; lithium battery: fast charge, equal charge
|
|
|
|
||||
|
Load characteristics
|
load voltage
|
|
same battery voltage
|
|
|
|
||||
|
|
Rated load current
|
|
30A
|
|
|
|
||||
|
|
Load control method
|
|
Normally open and normally closed mode/dual period
control mode/light control mode/light control-fixed time control mode |
|
|
|
||||
|
Display/ Communication
|
Display method
|
|
High-definition LCD segment code backlight display
|
|
|
|
||||
|
|
communication method
|
|
8-pin RJ45 interface/RS485/support host computer monitoring/support external Bluetooth, WIFI module expansion to realize app cloud
monitoring/support external monitoring header |
|
|
|
||||
|
other properties
|
Protective function
|
|
Input and output over-voltage protection, anti-reverse connection protection, battery drop protection, etc.
|
|
|
|
||||
|
|
Working temperature
|
|
-20℃~+50℃
|
|
|
|
||||
|
|
Storage temperature
|
|
-40℃~+75℃
|
|
|
|
||||
|
|
IP protection class
|
|
IP21
|
|
|
|
||||
|
|
Maximum wire size
|
|
20mm2
|
|
|
|
||||
|
|
Net weight (kg)
|
|
1.7kg
|
|
|
|
||||
|
|
Gross weight (kg)
|
|
2kg
|
|
|
|
||||
|
|
Product size (mm)
|
|
240*166*65
|
|
|
|
||||
|
|
Packaging size (mm)
|
|
299*203*70
|
|
|
|
||||
