Quick Details
-
Warranty:
-
5 years
-
Type:
-
laser offroad driving light
-
Rated Power:
-
168W
-
Product name:
-

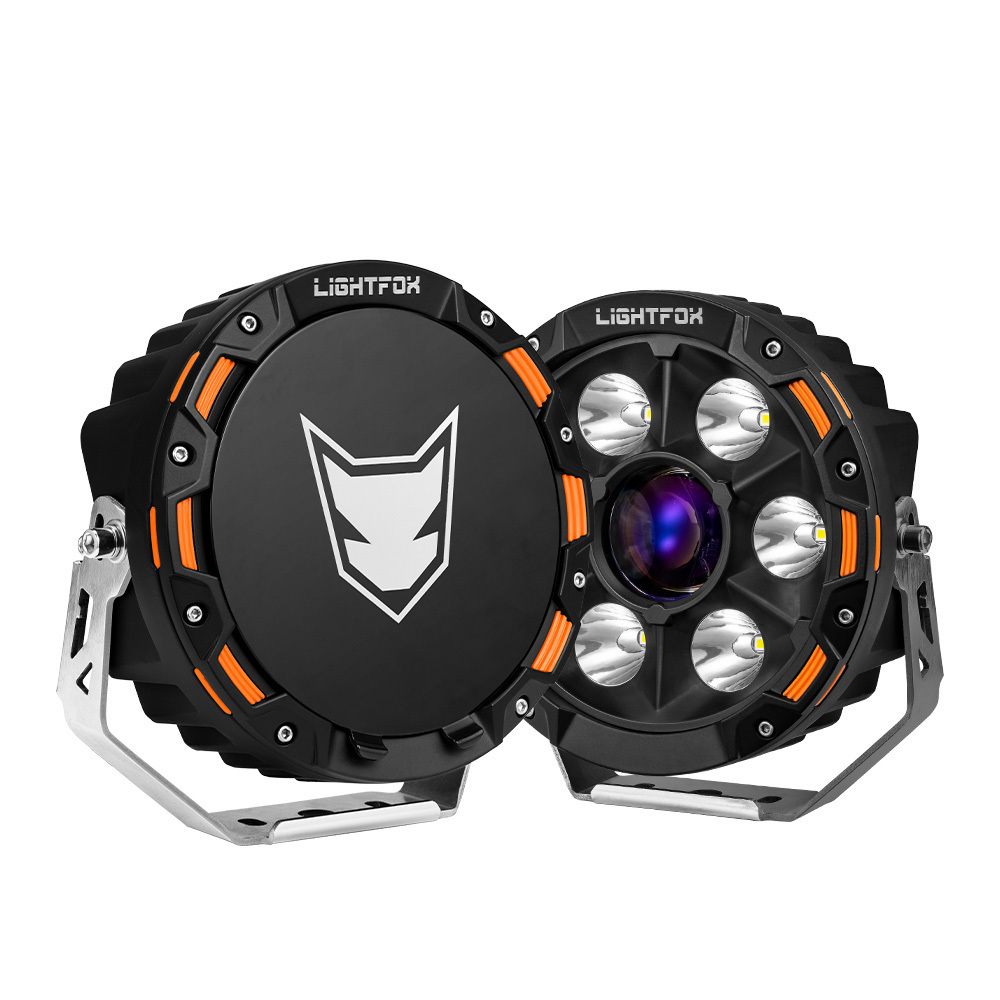

7 inch Laser Driving Light
-
Housing & Heat Sinks Material:
-
Aluminum
-
Light Source:
-
Laser/LED Hybrid
-
LUX Rating:
-
1Lux@2,226m
-
Raw Lumens:
-
11,285 (pair)
-
LED Chip:
-
10W*12 LED 5050 (pair)
-
Reflector Distribution:
-
1 Laser + 6 Spot (single)
-
Hyperspot Beam:
-
5°
-
Spot Beam:
-
12°
-
Colour Temperature:
-
5,700K
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LIGHTFOX
-
Model Number:
-
LF-DL-7LAS*2
-
Warranty:
-
5 years
-
Type:
-
laser offroad driving light
-
Rated Power:
-
168W
-
Product name:
-
7 inch Laser Driving Light
-
Housing & Heat Sinks Material:
-
Aluminum
-
Light Source:
-
Laser/LED Hybrid
-
LUX Rating:
-
1Lux@2,226m
-
Raw Lumens:
-
11,285 (pair)
-
LED Chip:
-
10W*12 LED 5050 (pair)
-
Reflector Distribution:
-
1 Laser + 6 Spot (single)
-
Hyperspot Beam:
-
5°
-
Spot Beam:
-
12°
-
Colour Temperature:
-
5,700K
Product Description
Specification
|
Brand:
|
Lightfox
|
|
Light Source:
|
Laser/LED Hybrid
|
|
LUX Rating:
|
1Lux@2,226m
|
|
Raw Lumens:
|
11,285 (pair)
|
|
Dimension:
|
7’’
|
|
LED Chip:
|
10W*12 LED 5050 (pair)
|
|
Reflector Distribution:
|
1 Laser + 6 Spot (single)
|
|
Hyperspot Beam:
|
5°
|
|
Spot Beam:
|
12°
|
|
Colour Temperature:
|
5,700K
|
|
Housing Material:
|
Aluminium
|
|
Heat Sink:
|
Aluminium
|
|
Lens Cover:
|
Strengthened PC
|
|
Bracket:
|
304 Stainless Steel
|
|
Sealing Material:
|
UV Resin
|
|
Coating:
|
AkzoNobel Powder
|
|
Theoretical Output:
|
168W (pair)
|
|
Amp Draw:
|
14A@12V (pair)
|
|
Voltage Range:
|
12~30V
|
|
Relative Light Intensity:
|
78% (150°C)
|
|
Waterproof:
|
IP68 Rating
|
|
Expected Lifespan:
|
50,000 Hours
|
|
Operating Environment:
|
-40 - 150°C
|
Features ：
*Vision Drive Tech: Our redesigned reflector cup features an improved reflection angle to make the most of the light produced.
*Bright & Focused: Our 5° hyperspot beam and 12° spot beam of laser technology paired with Osram 5050 LEDs deliver 11,285lm (pair) for unmatched performance.
*Bright & Focused: Our 5° hyperspot beam and 12° spot beam of laser technology paired with Osram 5050 LEDs deliver 11,285lm (pair) for unmatched performance.
*Complete Clarity: Enjoy complete clarity in poor conditions with our 5,700 Kelvin lighting. This stunning clarity helps reduce eye fatigue and provides optimal visibility.
*Compact Housing: Measuring just 7" in diameter,Lightfox laser LED driving spot lights can fit where larger lights can't.
*Built TOUGH: AkzoNobel powder coating protects aluminium housing from UV exposure & corrosion, while 3mm thick 304 stainless steel brackets provide unbeatable toughness.
*Waterproof Protection: With an IP68 rating, our Lightfox laser LED driving lights are impervious to water ingress and other outdoor elements.
*Protection Guaranteed: Our laser driving lights are designed with built-in protection against flickering and reverse polarity, and enlarged heat sinks for efficient heat transfer.
*Protection Guaranteed: Our laser driving lights are designed with built-in protection against flickering and reverse polarity, and enlarged heat sinks for efficient heat transfer.
*Easy Installation: Our laser driving lights come equipped with a wiring harness that includes waterproof DT plugs and a switch for easy installation.
