Quick Details
-
Warranty:
-
12 months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSF-100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1710*440*5mm
-
Unfold size:
-
1710*440*5mm
-
Folding size:
-
370*440*20mm
-
Item name:
-

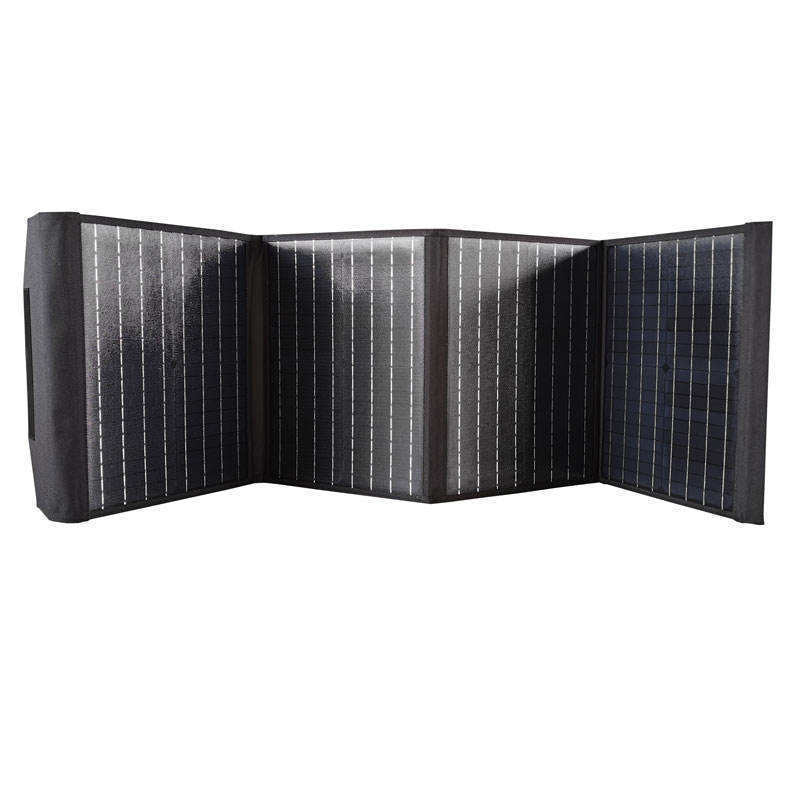

100W 4folds solar mono foldable panel for Rockpals and Jackery
-
Certificate:
-
CE, RoHS
Quick Details
-
Cell size:
-
125mmx125mm
-
Type:
-
IBC
-
Panel Efficiency:
-
20%
-
Warranty:
-
12 months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSF-100W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1710*440*5mm
-
Unfold size:
-
1710*440*5mm
-
Folding size:
-
370*440*20mm
-
Item name:
-
100W 4folds solar mono foldable panel for Rockpals and Jackery
-
Certificate:
-
CE, RoHS
|
Specifications – Monocrystalline series – 20W/fold |
|||||
|
Item No. |
GS M-60W |
GS M-100WA |
GS M-120W |
GS M-200W |
|
|
Max power |
60W (3 folds) |
100W (5 folds) |
120W (6 folds) |
200W (10 folds) |
|
|
Power tolerance |
±3% |
±3% |
±3% |
±3% |
|
|
Cells brand |
Mo nocrystalline |
Mo nocrystalline |
Mo nocrystalline |
Mo nocrystalline |
|
|
Cells efficiency(%) |
1 9% |
1 9% |
1 9% |
1 9% |
|
|
M ax voltage |
18V |
18V |
18V |
18V |
|
|
Max current |
3.34A |
5.56A |
6.67A |
11.12A |
|
|
Open circuit voltage(Voc) |
21.6V |
21.6V |
21.6V |
21.6V |
|
|
Short-circuit current(Isc) |
3.87A |
6.45A |
7.75A |
12.88A |
|
|
Unfolded size |
1 320*370*5mm |
1835*400*5mm |
2200*400*5mm |
1835*820*5mm |
|
|
Folded size |
420*370*15mm |
368*400*30mm |
368*400*35mm |
368*410*55mm |
|
|
Weight |
2.8kgs |
3.75kgs |
4.5kgs |
7.5kgs |
|
|
Operating Temperature( ℃ ): |
-40 ℃ ~+85 ℃ |
||||
|
Power temperature coefficient |
-0.39 to -0.29 %/ ℃ |
||||
|
Voltage temperature coefficient |
-0.29%/ ℃ |
||||
|
Current temperature coefficient |
+0.05%/ ℃ |
||||
|
Nominal Operating Cell Temperature |
45 ± 2 ℃ |
||||
|
Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25 ℃ |
|||||
