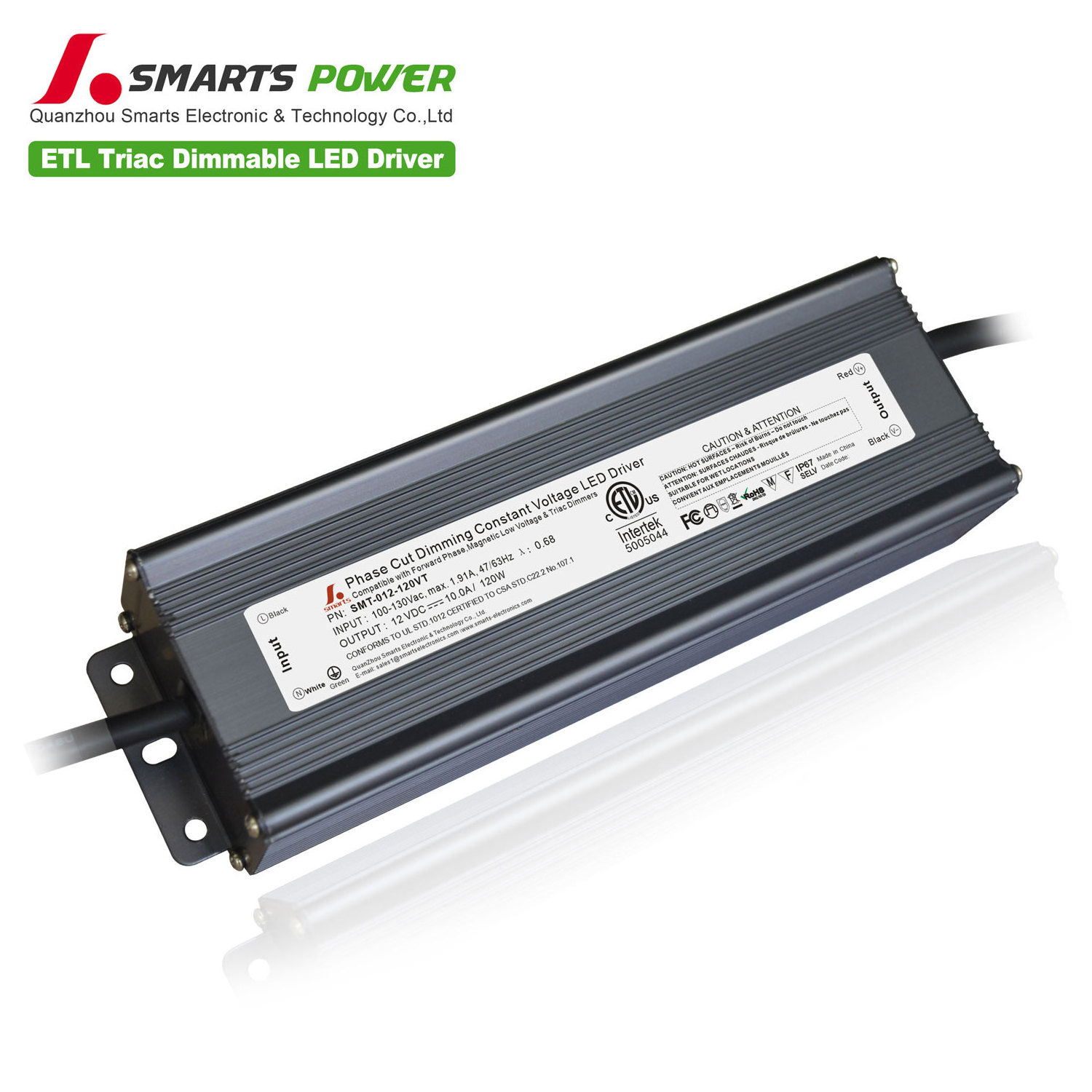

best selling intertek ip67 water proof led driver 120w 12v dimmable

model

SMT-012-120VT

SMT-024-120VT

SMT-036-120VT

SMT-048-120VT

Output

DC Voltage

12V

24V

36V

48V

Voltage Accuracy

±0.5V

±0.5V

±0.5V

±0.5V

Rated current

10.00A

5.00A

3.33A

2.50A

Rated power

120W

Input

Voltage Range

180~265V AC

Frequency Range

50~60HZ

Power Factor ( Typ.)

PF>0.70/180V,PF>0.70/220V,PF>0.70/265V

Full Load Efficiency(Typ.)

>83%

>83%

>83%

>83%

AC Current(Typ.)

1.20A/180VAC  0.93A/220VAC  0.77A/265VAC

Leakage current

<0.27mA/110V/220VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over voltage

<270VAC(180~265V)

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN-60950-1, EN61347-1 EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547

Alight industry level (surge4KV)

Others

Weight

1.3Kg

Size

230*70*46mm(L*W*H)

packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and

25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted

pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

170-265VAC\CE\FCC\IP67
