In the yellow circle is the previous Unloading Hook.
From the picture, you can see that the outer side of the only hook is fixed, so that the hook may be reversed.
The hooks in the red circle are currently used by ZY180.
We use the axis to fix it, it will more durable.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Dimension(Long * Breadth * High):
-
3300*1100*1350mm
-
Machine Weight:
-
685 kg
-
Marketing Type:
-
Hot Product 2023
-
Loading capacity:
-
2000kg
-
Overall size(L*W*H):
-
3300*1100*1350mm
-
Cargo box size(L*W*H):
-
1800*900*500mm
-
Lifting motor power:
-
1000W/60V
-
Driving motor power:
-
60V2000W/3000W
-
Hopper thickness:
-
5mm
-
Brake:
-
Oil brake
-
Net weight:
-
685kg
-
Speed:
-
35km/h
-
whatsapp:
-
0086 15736792076
Quick Details
-
Engine Brand:
-
JinWang
-
Power:
-
Other
-
Brand Name:
-
JinWang
-
Place of Origin:
-
Henan, China
-
Dimension(Long * Breadth * High):
-
3300*1100*1350mm
-
Machine Weight:
-
685 kg
-
Marketing Type:
-
Hot Product 2023
-
Loading capacity:
-
2000kg
-
Overall size(L*W*H):
-
3300*1100*1350mm
-
Cargo box size(L*W*H):
-
1800*900*500mm
-
Lifting motor power:
-
1000W/60V
-
Driving motor power:
-
60V2000W/3000W
-
Hopper thickness:
-
5mm
-
Brake:
-
Oil brake
-
Net weight:
-
685kg
-
Speed:
-
35km/h
-
whatsapp:
-
0086 15736792076
Products Description

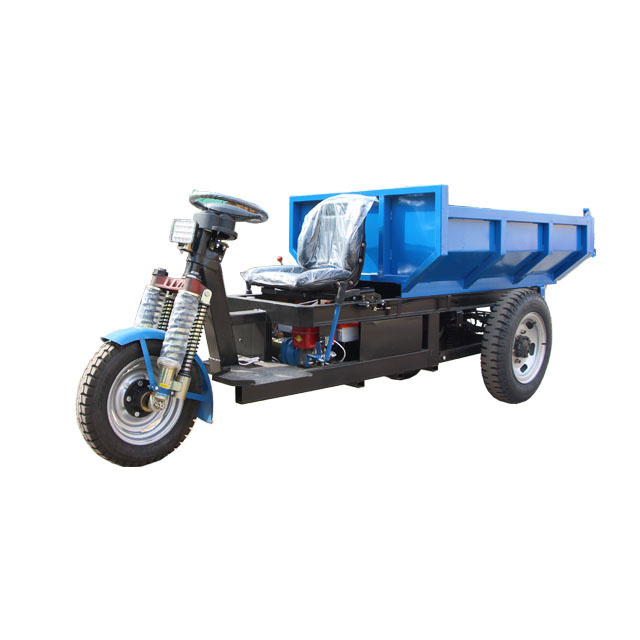

JinWang Rear Dumping Landscaping Electric Mini Loader, ZY-180 Electric Small Wheelbarrow For Construction
Jinwang Machinery factory
is a professional factory in the production of
electric mini dumper and other mining machines.
The electric dumper is our best-selling product, especially in countries with many mines such as Peru, Chile,Bolivia, etc .
Our company has just launched a simple version of the 2-ton mini dumper (ZY180), which has low price, heavy load and strong practicability. The picture of the ZY 180 below is not standard configuration.additional costs need to be increased.
The picture of the ZY180 below is not standard configuration.additional costs need to be increased.
Product Paramenters
|
ZY180 Electric Dumper configuration
The red words are optional configuration ,addition cost is needed
|
|
|
|
|||
|
Loading capacity
|
2000kg
|
Net weight
|
1000kg
|
|||
|
Front tire
|
4.50-14
|
Rear tire
|
6.00-16
|
|||
|
Overall size(L*W*H)
|
3300*1100*1350mm
|
Cargo box size(L*W*H)
|
1800*1100*500mm
|
|||
|
Driving motor power
|
60V2000W
72V 3000W
72V 4000W
|
Driving motor type
|
Brush motor
Brushless motor
|
|||
|
Lifting motor power
|
1000W/60V
|
Lifting motor type
|
Brushed motor
|
|||
|
Batteries type
|
Lead-acid (water) battery,30kg/piece
Dry battery
|
Driving type
|
Double chain gearbox rear axle
Direct coupling way rear axle
|
|||
|
Front shock absorption type
|
Single row large shock absorption
Double row shock absorption
|
Brake
|
Oil brake
|
|||
|
Hopper thickness
|
5mm
|
Speed
|
35km/h
|
|||
Feedback from Customer
Customers from all over the world come to our factory for on-the-spot inspection after receiving our products, and discuss long-term cooperation with us.
Details Images
Rear axle type can be customized
Rear axle type can be customized
1-Standard type:Double chain gearbox rear axle with high and low speed.
Standard motor is 60V 2000W,but Larger power motor and brushless motor are all available.
Equip with high and low speed gears. Max speed is 35km/h
The rear axle of ZY180 electric dumpers is equipped with high and low speed gears, and the maximum speed can reach 35km/h.
Gear 1 and gear 2
, these two speed change gears realize the high and low speed switching of the vehicle.
Optional rear axle can be customized
If the double chain gearbox rear axle can not be meet your requirement,You can also choose the following rear axle as needed.
Front shock absorption
There are two types of shock absorption that ZY180 can use, one is single -row shock absorbing, and the other is double -row shock absorption. Among them,double -row shock absorption needs additional costs.
Single row large shock absorption
Single row large shock absorption is the standard configuration of the ZY180 is usually used for vehicles with 2.5 tons.
The rear leaf spring
The rear leaf spring ZY180 model use heavy and thickened steel plates with strong bearing capacity.
Mining Tires
Front tire:4.50-14
Rear tire:6.00-16,Larger tires can be customized.
Equipped with
off-road tires
, suitable for various road sections.
Battery
Equipped with two kinds of batteries,
dry battery
and
water battery
, durable, short charging time and long working time.
A rubber baffle will be added for you free of charge to protect the battery from water.
Unloading hook
The bottom plate thickness of ZY180
The ZY180 uses a
5mm
bottom plate，Usually, the thickness of
5mm
is enough, but if you want a thicker base plate,it is also possible.
Luxury seat
Alarm System
In the previous experiment, our company found that
t
he silver-plated seat material is not hard enough and easy to be damaged
. After our company's update,
our dump trucks are equipped with
luxurious seat
s
that are more in line with the human body structure and
more comfortable.
We can upgrade them for you for free.
For the safety of customers,
our company has installed an
alarm system
o
n the dump truck, which can warn the workers in a dark environment,
so as to ensure personal safety.
Related Products
Workshop Show
The welding workshop adopts
advanced welding and cutting technology
,
the cutting surface is smooth and tidy, without burrs, which is convenient for the assembly and combination of parts.
Stock shop
Every product we customize for customers will use high-quality parts and will give some corresponding wearing parts.
Packing and Delivery
FCL delivery and workshop
If the purchase quantity is
less than four units
, we will transport it in wooden boxes,
If it is more than four unit s , we will transport it in containers.
20'GP can hold 8 sets ZY180 electric dumpers, 40'HC can hold 20 sets ZY180 electric dumpers.
