Quick Details
-
Warranty:
-
25 years, 25 Years
-
Brand Name:
-
SUNWAY
-
Model Number:
-
SW450M-144
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2008*1002*35mm
-
Solar cell:
-
9BB Mono 156.75*79.375 Cell
-
Certificate:
-
TUV,CE
-
Product name:
-
9BB 400W 420W 144 cells Mono half-cell solar panel for solar system
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Aluminum Alloy
-
Description:
-
420W Half Cell Solar Panel
-
Efficiency:
-
20%-21%
-
Weight:
-
23.5kg
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV
-
Panel Efficiency:
-
20-21%
-
Warranty:
-
25 years, 25 Years
-
Brand Name:
-
SUNWAY
-
Model Number:
-
SW450M-144
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2008*1002*35mm
-
Solar cell:
-
9BB Mono 156.75*79.375 Cell
-
Certificate:
-
TUV,CE
-
Product name:
-
9BB 400W 420W 144 cells Mono half-cell solar panel for solar system
-
Junction Box:
-
IP67 Rated
-
Frame:
-
Aluminum Alloy
-
Description:
-
420W Half Cell Solar Panel
-
Efficiency:
-
20%-21%
-
Weight:
-
23.5kg
Half Cut Technology
Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel.
Multi Busbar Technology
MBB technology improves efficiency of modules, offers a better aesthetic appearance.
PERC Technology
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel.
Multi Busbar Technology
MBB technology improves efficiency of modules, offers a better aesthetic appearance.
PERC Technology
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
|
Electrical Parameters
|
|
|
|
|
||||
|
Model
|
SW450M-144 ~ SW480M-144
|
|
|
|
||||
|
Encapsulation
|
Class/Eva/Cell/Eva/Backsheet
|
|
|
|
||||
|
Maximum Power Pmax(W)
|
450
|
46
0
|
470
|
480
|
||||
|
Maximum Power Voltage(Vmp/V)
|
41.00
|
41.20
|
41.80
|
42.20
|
||||
|
Maximum Power Current(Imp/A)
|
10.98
|
11.10
|
11.22
|
11.34
|
||||
|
Open Circuit Voltage(Voc/V)
|
49.50
|
50.00
|
50.50
|
51.00
|
||||
|
Short Circuit Currrnt(Isc/A)
|
11.42
|
11.54
|
11.60
|
11.79
|
||||
|
Module Efficiency(%)
|
20.37
|
20.82
|
21.27
|
21.73
|
||||
|
Power Tolerance(W)
|
0~+5W
|
|
|
|
||||
|
Temperature Coefficient of Isc(αIsc)
|
+0.059%/℃
|
|
|
|
||||
|
Temperature Coefficient of Voc(βVoc)
|
-0.330%/℃
|
|
|
|
||||
|
Temperature Coefficient of Pmax(γVoc)
|
-0.410%/℃
|
|
|
|
||||
|
STC
|
Irradiance 1000w/㎡, Cell Temperature 25℃， Air Mass 1.5
|
|
|
|
||||
Product Details
Multi Busbar Technology
Improve efficiency of modules,
offers better appearance.
Half Cut Technology
Under the same shadow condition,
Lower power loss than full cell.
PERC Cell Technology
120N Tensile Strength Frame
110% Seal-lip Design Glue Injection.
Frame
Tensile Strength, boost
bearing capability, prolong service life
Split Junction Box
Reduced internal power loss,
ensures module running safety
Waterproof Label
Acceptable OEM,
could print your logo on it
Quality Control

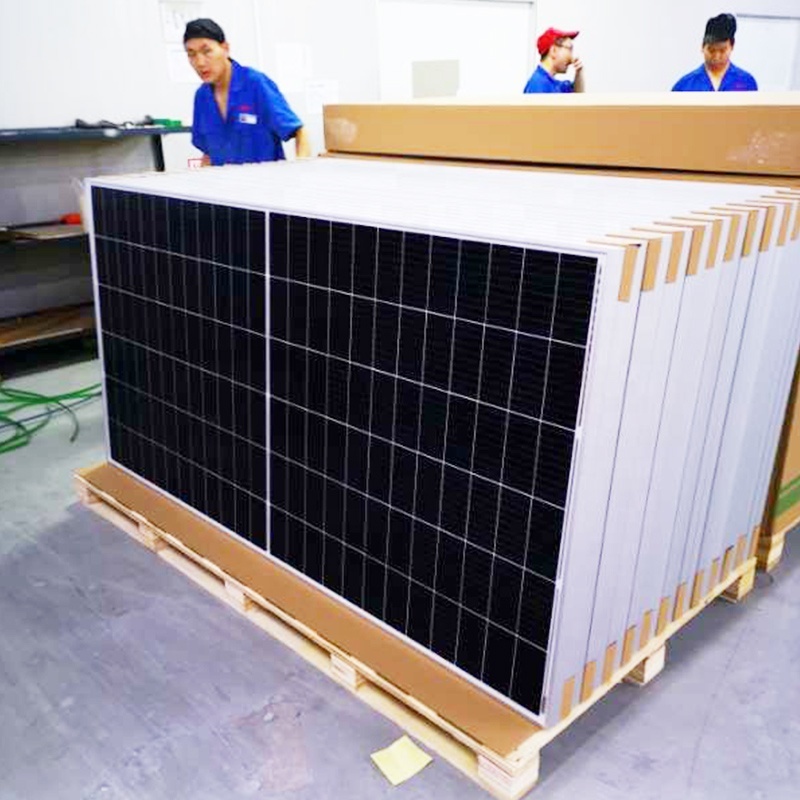

Product Packaging
|
Model
|
SW480M-144
|
|
Modules per box
|
30 pieces
|
|
Modules per 40' container
|
660 pieces
|
Note:
The above packing information contained is subject to change without notice. We accept any customized packing according to your needs.
