Quick Details
-
Rating:
-
100mA 12VDC
-
Contact Resistance:
-
200mΩ
-
Insulation:
-
DC 500V 200MΩ
-
Life:
-
5,000,000 cycles
-
Operating:
-
-25deg ~ +50deg
-
Operating Tempt:
-
-20deg~+70deg
-
Circuit:
-
OFF-(ON)Momentary SPST
-
Total Travel:
-
4.5±0.2mm
-
LED Color:
-
Red/Yellow/Green/Blue/White
-
Cap Type:
-
12mm / 15mm 1 17.4mm
Quick Details
-
Protection Level:
-
200±50gf
-
Max. Current:
-
100mA
-
Max. Voltage:
-
12VDC
-
Rating:
-
100mA 12VDC
-
Contact Resistance:
-
200mΩ
-
Insulation:
-
DC 500V 200MΩ
-
Life:
-
5,000,000 cycles
-
Operating:
-
-25deg ~ +50deg
-
Operating Tempt:
-
-20deg~+70deg
-
Circuit:
-
OFF-(ON)Momentary SPST
-
Total Travel:
-
4.5±0.2mm
-
LED Color:
-
Red/Yellow/Green/Blue/White
-
Cap Type:
-
12mm / 15mm 1 17.4mm

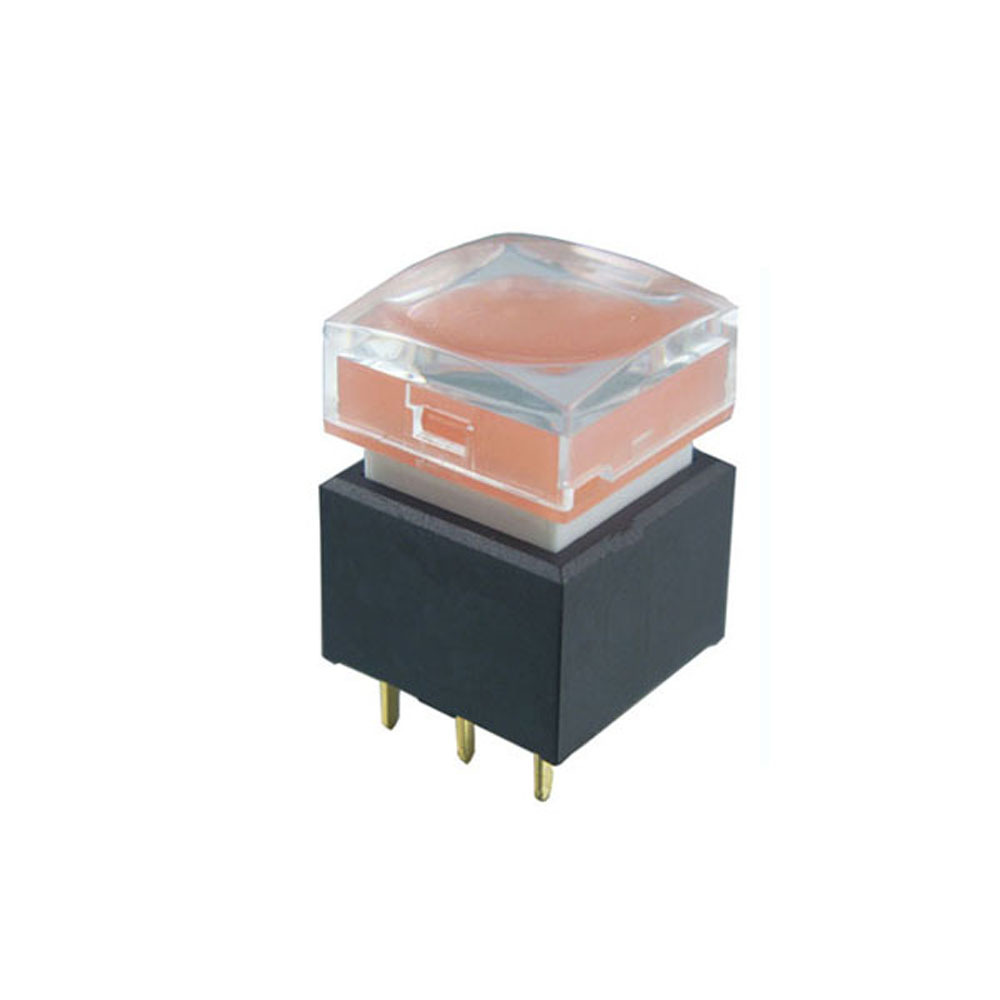

bi-color 16mm momentary led pushbutton LED switch
Feature Application
♦ Noiseless
♦
Audio/video products
♦ Full color LED illuminated available
♦
Instrumentation
♦
Long electrical Life Cycles
♦
Communication equipments
♦ SPST,Momentary Function
bi-color 16mm momentary led pushbutton LED switch
Specification
| Circuit | SPST |
| Function | OFF-(ON)Momentary |
| Current Rating | 100mA |
| Voltage Rating | 12VDC |
| Contact Resistance | 200mΩ Max Intial |
| Insulation Resistance | 100mΩ Min |
| Total Travel | 4.5±0.2mm |
| Operation Temp | -20℃ ~ +70℃ |
| Operation Force | 250±100gf, 1,000,000 Cycles Min |
| Soldering Specifications | 260℃ for 5 Seconds |
