Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINLU
-
Model Number:
-
GA798
-
Dimension(L*W*H):
-
450*250*260cm
-
Weight:
-
1.5-2.5tons
-
Power:
-
1.5kw~2.2kw
-
Warranty:
-
One Year
-
Certification:
-
ISO9001
-
Item:
-
Plastic net weaving loom
-
Loom model:
-
PP net weaving loom
-
Reed width:
-
180 200 230 330 360
-
Rotation speed:
-
150-180 rpm
-
Weft insertion:
-
150-180 weft/ min picked by left and right rapier band & head
-
Warp beam diameter:
-
Standard 600mm
-
Cloth roller diameter:
-
300mm
-
Weft accumulator:
-
Electronic type weft accumulator
-
Driving control:
-
Rated 1.8-2.2kw , mainmotor power
-
Beat up motion:
-
Crankshaft beat up motion
Quick Details
-
Type:
-
Rapier Loom
-
Production Capacity:
-
98%
-
Application:
-
PP net, plastic net
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINLU
-
Model Number:
-
GA798
-
Dimension(L*W*H):
-
450*250*260cm
-
Weight:
-
1.5-2.5tons
-
Power:
-
1.5kw~2.2kw
-
Warranty:
-
One Year
-
Certification:
-
ISO9001
-
Item:
-
Plastic net weaving loom
-
Loom model:
-
PP net weaving loom
-
Reed width:
-
180 200 230 330 360
-
Rotation speed:
-
150-180 rpm
-
Weft insertion:
-
150-180 weft/ min picked by left and right rapier band & head
-
Warp beam diameter:
-
Standard 600mm
-
Cloth roller diameter:
-
300mm
-
Weft accumulator:
-
Electronic type weft accumulator
-
Driving control:
-
Rated 1.8-2.2kw , mainmotor power
-
Beat up motion:
-
Crankshaft beat up motion

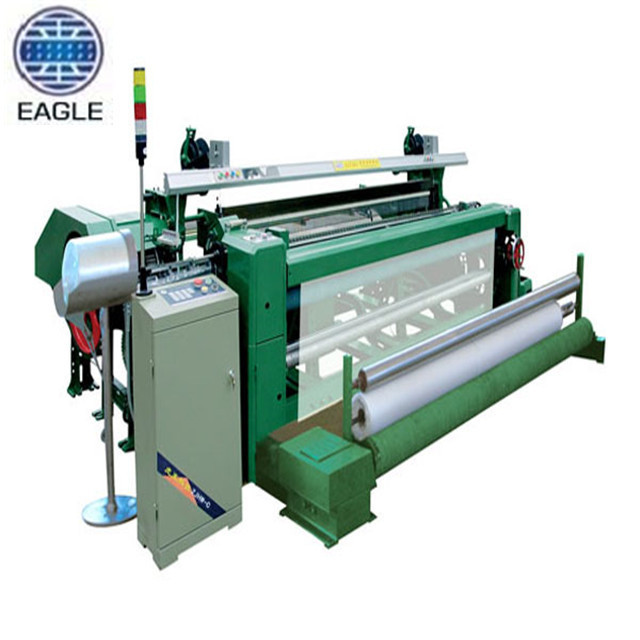

Fish net plastic net making machine weaving loom
|
Model Number |
Fish net plastic net making machine weaving loom |
|
Reed width (mm) |
180, 200, 230, 280, 330, 360, 490, 500cm |
|
Rotation speed |
200~230rpm. (500 size 130~150rpm) |
|
Weft insertion |
200-230rpm |
|
Warp beam dia. |
Standard 600mm. |
|
Cloth Roll Dia. |
300-500mm, can match with big rolling cloth mechanism. |
|
Weft feeder |
FDP electronic weft accumulator. |
|
Driving control |
Rated 1.8~2.2kw main motor power, 3-phase line, 380v, 50hz; |
|
Beat-up motion |
Crankshaft weft 6-linkage beat-up motion. |
|
Lubrication |
Mechanical oiling pump |
|
Electric circuit |
Standard modularization design, LED displays working condition. |
|
Weft selection |
Mechanical dobby weft selection machanism . |
|
Material |
PP or PE round wire, flat yarn 0.1-3cm |
| Shedding motion |
6-8pcs mechanical dobby shedding motion |
|
Let-off motion |
Semi positive let-off system controlled by feeder roller through linkages ensuring uniform warp beam tension. |
|
Take-up motion |
Continuous gapless take-up |
|
Selvage device |
Usually use the tuck-in motion to deal with the selvedage. |
|
Stop motion |
Warp yarn: automatic stop by electric dropper pin type with 6 rows; Weft yarn: high-sensitivity piezoelectricity detector automatic stop. Stop display: 1-4 colour multi-function indication lamps. |
|
Electronic control |
Micro-computer functional automatic control system with memory cards, convenient and easy button operation, instant adjustment. |
|
Overall size |
750*250*260cm (500 type), 2.6-3.5 MTs. |
Usually, we load them in 40'HQ or 40'GP according to order quantity.
