Quick Details
-
Dimensions:
-
Inner box 26*16.5*14.8cm
-
Use:
-
Rework station
-
Certification:
-
CE Certification
-
Weight:
-
2.3kg, 2.3kg / set
-
Power consumption:
-
700W
-
Color:
-
Black
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YIHUA
-
Model Number:
-
959D
-
Dimensions:
-
Inner box 26*16.5*14.8cm
-
Use:
-
Rework station
-
Certification:
-
CE Certification
-
Weight:
-
2.3kg, 2.3kg / set
-
Power consumption:
-
700W
-
Color:
-
Black
YIHUA 959D Hot Air Rework station with display and temperature control
Product Description
Main Function
1. Comfortable portable handheld and the Digital LED display.
2. Microcomputer control,warming-up quickly.
3. Adjust the airflow and temperature control rotation.
4. Refer to the instructions included with three kinds of nozzles (big,medium and small) replacement part.
5. Would replace the part if the resistance value is incorrect.
6. When the temperature is less than 70 degree, can stop rotation automatically.
7. Safe solder QFP, PLCC, BGA and other temperature-sensitive components.
Technical data
|
Power consumption |
700W |
|
Gun temperature range |
100-500 o C |
|
Gun type |
Brushless FAN Airflow 120L/MIN |
|
Gun heater material |
Ferro-alloys |
|
Gun heater resistance |
74Ω |
|
Model NO. |
Inner box Dimension(cm) |
Outer box Dimension(cm) |
QTY |
Product weight |
|
YIHUA 959D |
26*16.5*14.8 |
54*35*48 |
12PCS |
2.3kg |
What's in the box
* main unit + gun + power cord
* guide
* 3 nozzles
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V / 240V units

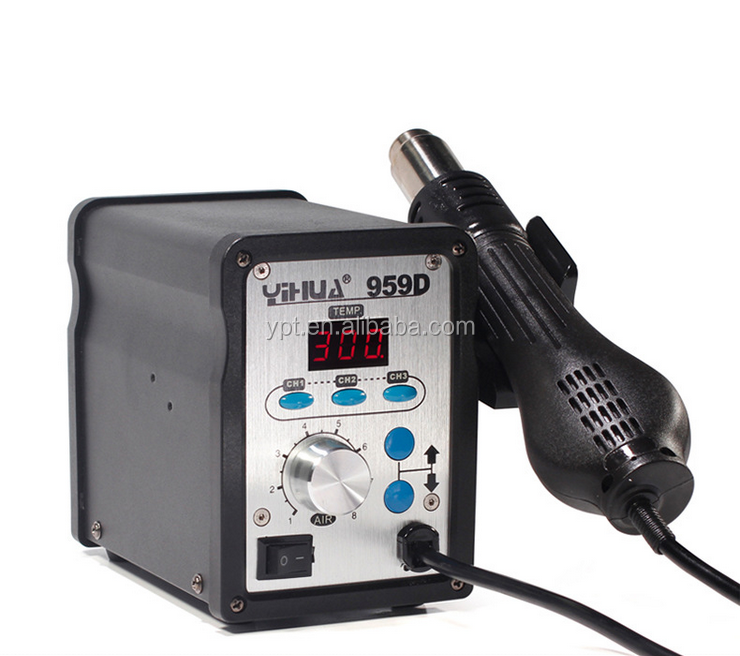

YIHUA 959D soldering rework station pictures;
