Quick Details
-
Model Number:
-
HG-A30T/63''
-
Voltage:
-
220v/380v/415v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
2330*1320*1260mm
-
Weight:
-
1900kg
-
Warranty:
-
1 Year, 1 year
-
Certification:
-
CE Certificate
-
Product name:
-
Die Cutting Machine
-
Suitable for material:
-
rubber/EVA Foam/fabric/paper/plastic and so on
-
Color:
-
Blue
-
Working mode:
-
cutting by die/mould
-
Cutting force:
-
30tons;25-100tons or Costomize
-
Cutting area:
-
1220*610mm or 1600*610mm or Costomize
-
Stroke:
-
50-240mm
-
Columns:
-
four
-
Feeding side:
-
automatic,double,or as request.
Quick Details
-
Type:
-
Die-cutting Machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HONGGANG
-
Model Number:
-
HG-A30T/63''
-
Voltage:
-
220v/380v/415v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
2330*1320*1260mm
-
Weight:
-
1900kg
-
Warranty:
-
1 Year, 1 year
-
Certification:
-
CE Certificate
-
Product name:
-
Die Cutting Machine
-
Suitable for material:
-
rubber/EVA Foam/fabric/paper/plastic and so on
-
Color:
-
Blue
-
Working mode:
-
cutting by die/mould
-
Cutting force:
-
30tons;25-100tons or Costomize
-
Cutting area:
-
1220*610mm or 1600*610mm or Costomize
-
Stroke:
-
50-240mm
-
Columns:
-
four
-
Feeding side:
-
automatic,double,or as request.
manual paper production carton board die cutting machine
About Us - Video
What Specification of our die cutting machine?
The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
1.The cutting machine Cutting-Force:25ton--200Ton
.
2.Hydraulic, manual simple operated,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column
.
4.S
uitable to die cut all non-metal soft /half-soft materials.From manual to full automatic type
.
5.Can make big cutting area: 2.3*1.3m or as required.
Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries; Extremely suitable for cutting multiple layers of material at one time.
1. Technical Parameters
| Model.No ~ |
Cutting Force |
Dimension (L*W*H) |
Area of Work Table | Main Motor Power | Stroke Control Range | Net Weight |
| HG-a30T/63" | 30 Tons | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-160mm | 1900kg |
| HG-B30T/63" | 30 Tons | 2330*1320*1260mm | 610*1600mm | 2.2kw | 50-240mm | 2000kg |
| HG-B30T/48" |
30
T
ons
|
1950*1320*1260mm | 610*1220mm | 2.2kw | 50-240mm | 1900kg |
| HG-a40T/63" |
40
T
ons
|
2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2500kg |
| HG-B40T/48" | 40 Tons | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2400kg |
| HG-a50T/63" | 50 Tons | 2330*1320*1260mm | 610*1600mm | 4kw | 50-160mm | 2900kg |
| HG-B50T/48" | 50 Tons | 1950*1320*1260mm | 610*1220mm | 4kw | 50-240mm | 2800kg |
2. Features and Advantages
|
Features and Advantages |
||||||
| 1.Double-cylinders,four-columns,self-balancing connecting rod which can maintain equal pressure of each position. | ||||||
| 2.Series B machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting. | ||||||
| 3.When the upper board pressure down and contact to the blade,automatically,it can cut slowly,so that there is no size error between the top and the bottom materials. | ||||||
| 4.The unique setting construction,combine with the cutting knife and cutting height which stroke simple and accurate. | ||||||
| 5.Central automatic lubrication systems can ensure precision and durability of the machine. | ||||||
| 6.More economical and 2 or 3 times improving producting capacity. |

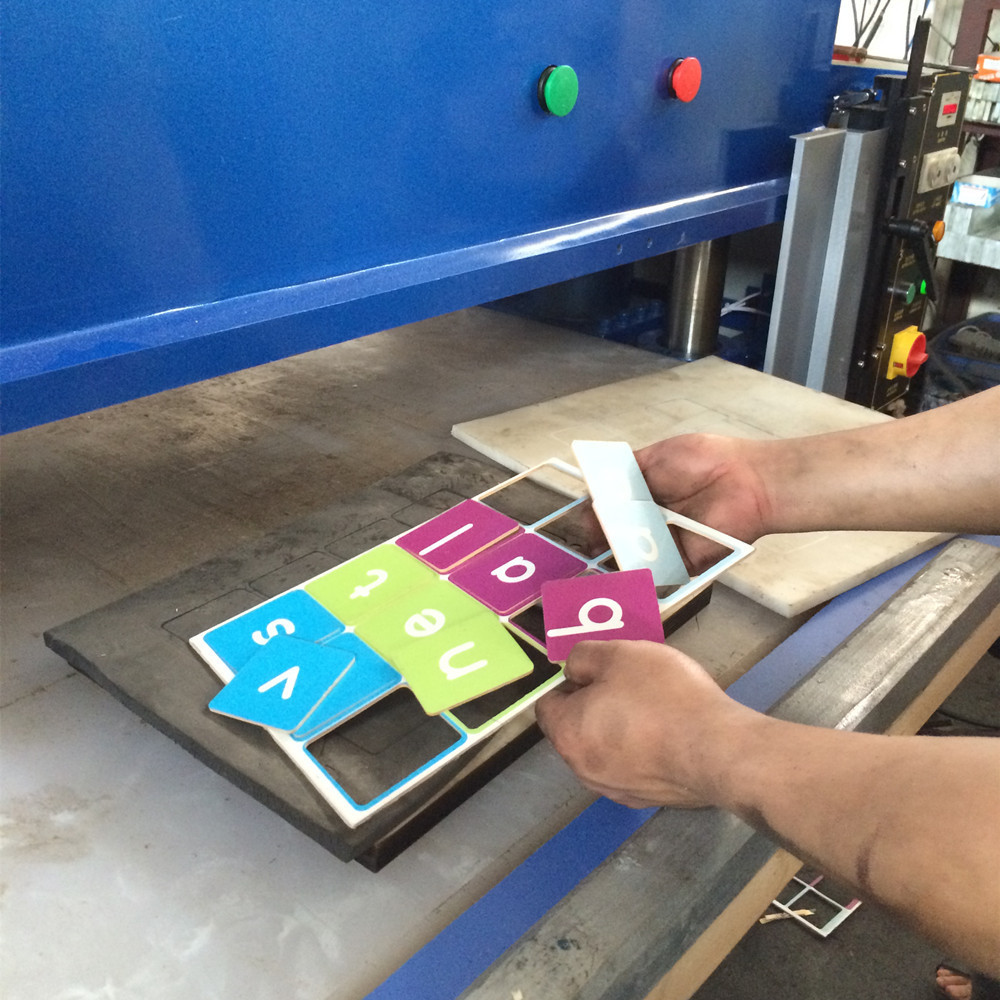

What Working of our die cutting machine?
3. the cutting-dies & PP board
We can according to your material,requirements,design the mould for you.
What Application of our die cutting machie?
The hydraulic die cutting machine is suitable to die cut all non-metal soft /half-soft materials, especially use for die cutting shoes,suitcases,bags,cases,seat covers,facial mash,soft toys,cleaning sponges,artifical flower,EPE,EVA,blister and abrasive tools.
4. The Hydraulic Cutting Machine Manufacturing Process:
5. Compare the advantages of our machine:
Trade Terms:
Trade term:FOB,CIF,EXW
Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.
Payment Condition:30% deposit in advance. 70% balance before delivery.
Delivery time:5-15days working days after deposit.
Packing:Wooden case with plate.
Shipment:By Sea.
