- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CapsulCN
-
Dimension(L*W*H):
-
3200*1350*1700
-
Weight:
-
1200 KG
-
Product name:
-
Automatic Cartoning Machine
-
Model:
-
DZH-50S
-
Function:
-
High Efficiency
-
Keywords:
-
Semi Automatic Carton Packaging Machine
-
Packing speed:
-
20-60 Cartons/min
-
Advantage:
-
Semi Automation
-
Material:
-
Stianless Steel
-
Main Function:
-
Case Carton Packing
-
Usage:
-
Carton Box Packing Sealing Machine
-
After-sale Service:
-
Service Machinery Overseas
Quick Details
-
Application:
-
Food, Commodity, Chemical, Machinery & Hardware, Tobacco
-
Packaging Material:
-
Paper
-
Voltage:
-
AC220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CapsulCN
-
Dimension(L*W*H):
-
3200*1350*1700
-
Weight:
-
1200 KG
-
Product name:
-
Automatic Cartoning Machine
-
Model:
-
DZH-50S
-
Function:
-
High Efficiency
-
Keywords:
-
Semi Automatic Carton Packaging Machine
-
Packing speed:
-
20-60 Cartons/min
-
Advantage:
-
Semi Automation
-
Material:
-
Stianless Steel
-
Main Function:
-
Case Carton Packing
-
Usage:
-
Carton Box Packing Sealing Machine
-
After-sale Service:
-
Service Machinery Overseas
Products Description

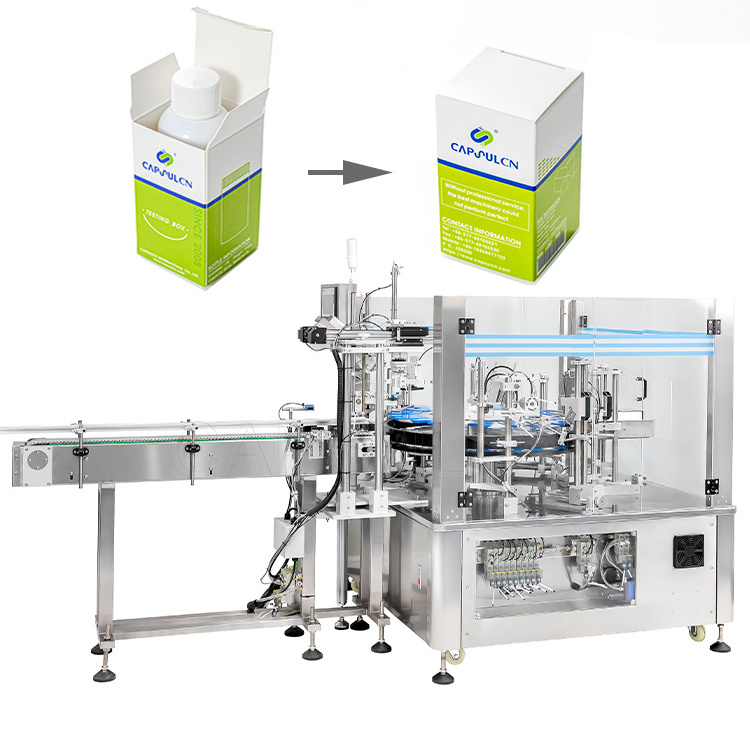

DZH-50S Vertical Semi Automatic Turntable Cartoning Machine
This machine uses vacuum suction cups to feed cartons into the star wheel. The empty cartons are rotated by the star wheel to the folding mechanism 1 to seal the bottom of the carton. After the finished product to be packed is manually placed into the carton, the star wheel rotates the carton to the folding mechanism 2 to seal the top of the carton. Finally, the completed product is transferred by the star wheel to the carton pushing-out mechanism for delivery.
Main Products
Specifications
|
Model
|
DZH-50S
|
|
Production speed
|
20-60 cartons/min
|
|
Carton minimum dimensions
|
60×20×20m/m
|
|
Carton Maximum dimensions
|
200×80×80m/m
|
|
Power supply
|
220V single phase; 50/60Hz
|
|
Horsepower of motor
|
1/4HP 15:1
|
|
Air pressure consumption
|
150L/min
|
|
Machine dimensions
|
1750L×1200W×1500H
|
|
Machine weight
|
950kg
|
Details Images
Details images
Our Workshop
Recommend Products
Why Choose Us
Pre-sale service
1.
Support product customization
, any requirements you need can be customized according to your requirements.
2. Sample test on our packing line.
3. Provide business consulting and technical support, as well as a free professional packaging solution
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available
for you
.
3. Online support, or face-to-face online communications, are available.
4.
The engineer overseas services
, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
