Quick Details
-
Products name:
-
Liquid Glue Dispensing Valve
-
Working pressure:
-
4-7kgf /cm
-
Minimum discharge:
-
0.001ML
-
Operating viscosity:
-
1-3.000.000 CPS
-
Material:
-
Plastic+STAINLESS STEEL
-
Operation speed:
-
< 600/min
-
Application:
-
Press Valve
-
Port Size:
-
Standard
-
Weight:
-
190G
-
Feeding pressure:
-
< 10 kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LIUJIANG
-
Marketing Type:
-
New Product 2021
-
Products name:
-
Liquid Glue Dispensing Valve
-
Working pressure:
-
4-7kgf /cm
-
Minimum discharge:
-
0.001ML
-
Operating viscosity:
-
1-3.000.000 CPS
-
Material:
-
Plastic+STAINLESS STEEL
-
Operation speed:
-
< 600/min
-
Application:
-
Press Valve
-
Port Size:
-
Standard
-
Weight:
-
190G
-
Feeding pressure:
-
< 10 kg

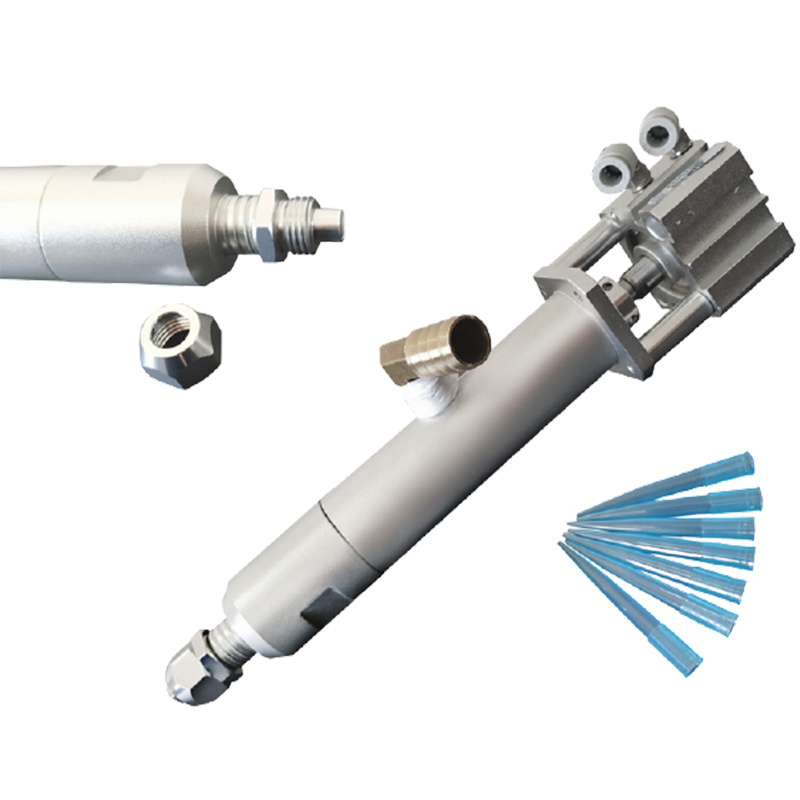

High Precision Manual Glue Pressure Barrel Dispensing Machine Glue Dispenser Valve
Product Description
This valve is opened and closed by applying compressed air to the air inlet of the valve.
The air inlet which is used to close the valve is at the center of the valve.
The air inlet which is used to open the valve is at the top of the valve.
Once the valve is connected to the fluid and air supply, it is ready to operate. When the piston is cycling properly, applying fluid pressure and shift the valve open. Keep the valve open until all the air has been purged out of the system and the flow of material is consistent.
Cycle the valve several times to make sure it closes and stops the flow of material without dripping.
The dispensing amount is mainly affected by the size of the selected needle and the setting of the fluid pressure.
