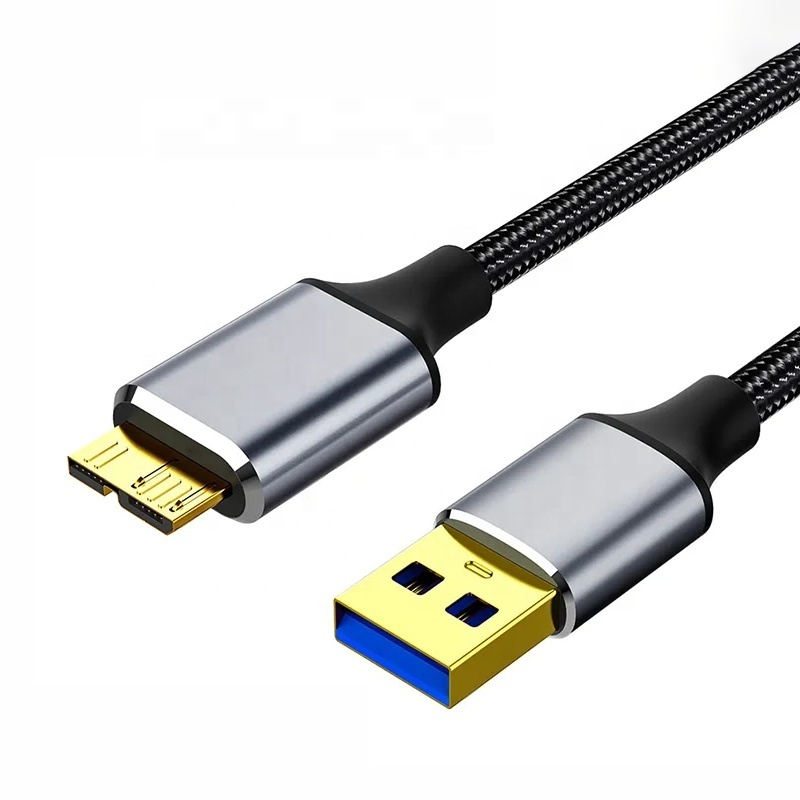

Metal Case 5Gbps USB3.0 USB 3.0 Type A Male To Micro B USB 3.0 Data Cable 0.5M 1M 1.5M 2M 3M For External Hard Drive Disk HDD

[Product name]: Universal USB3.0 mobile hard disk data cable

[Transmission speed]: 5Gbp/s

[Product specification]: 0.5M, 1M, 1.5M, 2M,3M

[Core Specifications]: Standard full copper 9 cores + aluminum foil + 96 braided shielding mesh

[Copper Wire Specifications]: (30AWG*2+EAM)*2P+30AWG*1P+24AWG*2C+AEB PVC OD4.5+0/-0.2MM

[Shielding performance]: Double shielding (braided shielding + aluminum foil shielding), which can greatly reduce electromagnetic interference and radio interference, and transmit data stably

[Scope of application]: Data transmission between devices with USB interface, connection extension.

[Features]:

1. Full-duplex data transmission, in USB3.0, in addition to 4 main lines, two sets of cables are added (each set has a pair of signal lines and ground lines, and the periphery is shielded with aluminum foil, so as not to interfere with each other) , one group is used to send data, and one group is used to receive data, that is to say, USB3.0 can read and write at full speed synchronously, and the previous USB version does not support full-duplex data transmission.

2. Ultra-fast transmission speed, USB3.0 is also considered SuperSpeedUSB, which greatly improves the bandwidth, up to 5Gbps full-duplex or 625MB/S, but the actual transmission rate is about 3.2Gbps, or 400MB/S, USB2.0 It is 480Mbps half-duplex, that is, 60MB/S. USB3.0 can transfer a large number of files (such as high-definition movies) at the storage rate limited by the storage device. For example, a flash drive using USB3.0 can transfer 1GB of data to a host in 15 seconds, while USB2.0 It takes 43 seconds.

3. Support USB 3.0 (5Gbps), compatible with USB 2.0 (480Mbps) and USB 1.1 (12Mbps) specifications.
