Quick Details
-
Size:
-
12500-16500mm*2500mm-3500mm*3300mm
-
Place of Origin:
-
Tianjin, China
-
Product name:
-

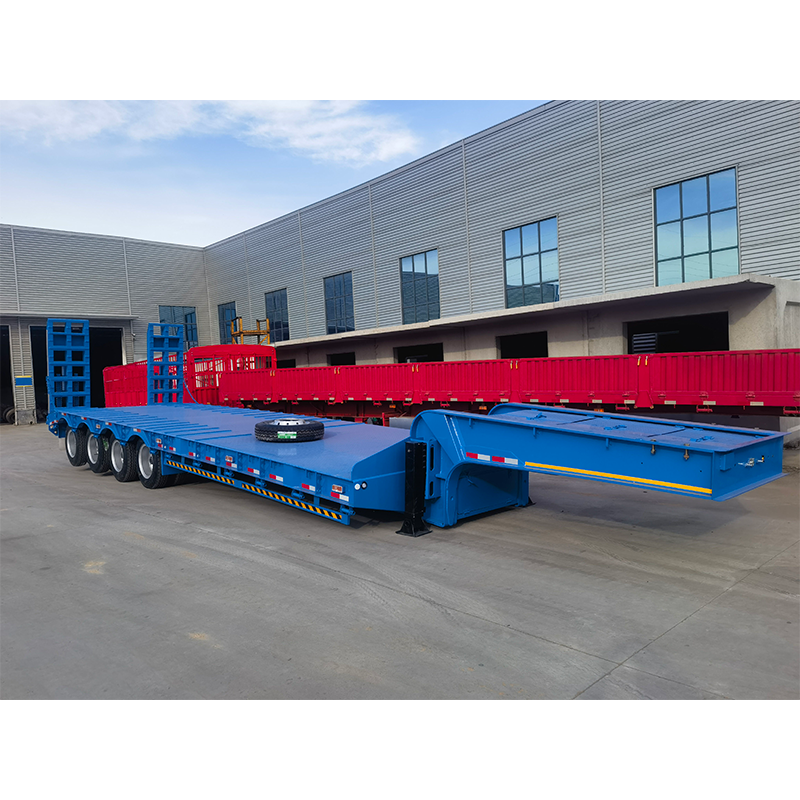

Low bed semi trailer
-
Dimension:
-
12500-16500mm*2500mm-3500mm*3300mm
-
Side beam:
-
16mm-30mm channel steel
-
Bottom platform:
-
5mm-10mm
-
Landing gear:
-
JOST FUWA/YUETONG Brand
-
Tire:
-
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional
-
Axle:
-
13T/16T/20T, FUWA/BPW/YUETONG Brand
-
Tare weight:
-
About 8.5T-13T
-
King pin:
-
JOST 2.00 or 3.5 inch
-
Payload:
-
40T-100T
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
100T
-
Brand Name:
-
Yuetong
-
Size:
-
12500-16500mm*2500mm-3500mm*3300mm
-
Place of Origin:
-
Tianjin, China
-
Product name:
-
Low bed semi trailer
-
Dimension:
-
12500-16500mm*2500mm-3500mm*3300mm
-
Side beam:
-
16mm-30mm channel steel
-
Bottom platform:
-
5mm-10mm
-
Landing gear:
-
JOST FUWA/YUETONG Brand
-
Tire:
-
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional
-
Axle:
-
13T/16T/20T, FUWA/BPW/YUETONG Brand
-
Tare weight:
-
About 8.5T-13T
-
King pin:
-
JOST 2.00 or 3.5 inch
-
Payload:
-
40T-100T
Products Description
|
Yuetong Automobile Industry (Tianjin) Co.,Ltd.
|
|
|
|
Model number
|
LYT9310TDP/LYT9370TDP
|
|
|
Main Dimension
|
|
|
|
Outer Dimension
|
12500-16500mm*2500mm-3500mm*3300mm
|
|
|
Tare weight
|
About 8.5T-13T
|
|
|
Payload
|
40T-100T
|
|
|
Axle
|
13T/16T/20T, FUWA/BPW/YUETONG Brand
|
|
|
Rim
|
9.00-22.5/8.00-20/8.5-20
|
|
|
Tire
|
12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optional
|
|
|
Suspension
|
Mechanical suspension (Germany Type or America Type) or Air suspension
|
|
|
Axle
|
3 axles, 13T/16T/20T,FUWA/BPW/YUETONG brand
|
|
|
Landing gear
|
FUWA/BPW/YUETONG brand
|
|
|
King Pin
|
JOST brand 2.0 or 3.5 inch bolts type or Welding type
|
|
|
Leaf Spring
|
90(W)mm*13(Thickness)mm*10 Layer
|
|
|
Tool box
|
One piece,1mx0.5mx0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking
bar) |
|
|
Electrical system
|
Voltage: 24 Volt
Receptacle: 7 way socket standard, China Front lamp: White Side marker lamp: White & Red |
|
|
Tool box
|
One piece,1mx0.5mx0.5m (Size can be choose freely)(equipped with 1 unit Tire
spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
|
|
Painting
|
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Color advised by customer.
|
|
|
Shipping Terms
|
By Bulk Cargo, RORO or 40HQ Containers
|
|
