Quick Details
-
Model Number:
-
isolator switch
-
Max. Current:
-
63A
-
Standard:
-
IEC/EN60947-3,AS/NZS 3947
-
Rated Voltage:
-
240/415V AC
-
Rated Frequency:
-
50/60Hz
-
Utilizatioin Category:
-
AC22A/AC23A
-
Number of Pole:
-
1,2,3,4 pole
-
IP Protection:
-
IP66
-
Approvals:
-
CB,CE,SAA
-
Product name:
-
UKF 440V 20A 32A 45A 63A Ip66 AC Waterproof Enclosed Isolator Switch
Quick Details
-
Max. Voltage:
-
240 / 415V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HEIGHT
-
Model Number:
-
isolator switch
-
Max. Current:
-
63A
-
Standard:
-
IEC/EN60947-3,AS/NZS 3947
-
Rated Voltage:
-
240/415V AC
-
Rated Frequency:
-
50/60Hz
-
Utilizatioin Category:
-
AC22A/AC23A
-
Number of Pole:
-
1,2,3,4 pole
-
IP Protection:
-
IP66
-
Approvals:
-
CB,CE,SAA
-
Product name:
-
UKF 440V 20A 32A 45A 63A Ip66 AC Waterproof Enclosed Isolator Switch
Application

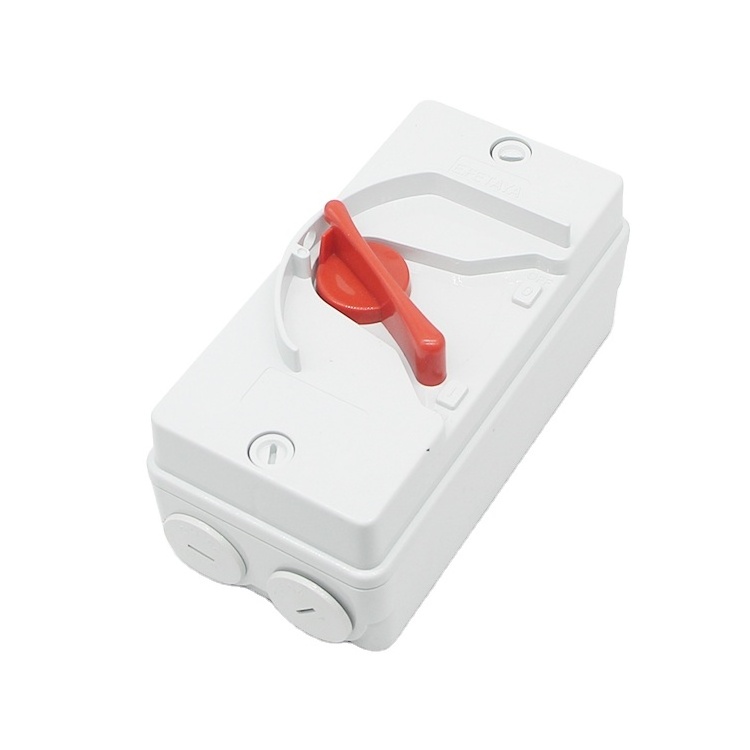

- The UKF Series of Weatherprotected Isolating Switches is a robust range of switches suitable for virtually any external application.
- Included in the range are single, double and triple pole switches from 20 to 80 Amps.
- The base mounted mechanism provides for easier thrmnation and more wiring room.
- Switch dimensions are 165mm x 82mm with an voerall height of 85mm.
Description
- UKF&UKW isolator is rigidly built to withstand more than just the vagarise of the weather.
- It is designed also for frequent swiching even on severe load such as switching of motor loads or othe highly inductive load.
- Suitable to be mounted in outdoor and indoor for diverse environment.
—— Click To Contact Us ——
Features
- Switching ON & OFF on-load
- Padlockable handle with 7mm hole in OFF position Dual 25mm threaded conduit entries on top and bottom IP66 rating prevents from heavy dust and water ingress.
—— Click To Contact Us ——
Main Technical Parameter
| Products Auailable | IP Rating | |
| SUKF-20 |
20A 250V Single pole surface switch. Terminals accommodate 16mm2 cable. M Rating 220. |
65 |
| SUKF-35 |
30A/63A 250V Single pole. Terminals accommodate 16mm2 cables. M Rating 220. |
65 |
| SUKF-63 | ||
| SUKF-20 |
20A440V Double. Terminals accommodate 16mm2 cables. M Rating 180. |
65 |
| SUKF-35 |
35A440V Double. Terminals accommodate 16mm2 cables. M Rating 180. |
65 |
| SUKF-63 |
63A440V Double. Terminals accommodate 16mm2 cables. M Rating 180. |
65 |
| SUKF-20 |
20A 440V Triple Pole. Terminals accommodate 16mm2 cables. M Rating 180. |
65 |
| SUKF-35 |
35A440V Triple Pole. Terminals accommodate 16mm2 cables. M Rating 180. |
65 |
| SUKF-63 |
55A440V Triple Pole. Terminals accommodate 16mm2 cables. M Rating 160. |
65 |
| SUKF-20 |
20A440V Triple Pole. Terminals accommodate 16mm2 cables. M Rating 160. |
65 |
| SUKF-35 |
35A440V Triple Pole. Terminals accommodate 16mm2 cables. M Rating 180. |
65 |
| SUKF-63 |
55A440V Triple Pole. Terminals accommodate 16mm2 cables. M Rating 160. |
65 |
| SUKF-55-32CE |
55A 440V Triple Pole. With 32mm conduit entry at each end. Terminals accommodate 16mm2 cables. M Rating 160. |
65 |
| SUKF-63-32CE |
63A440V Triple Pole. With 32mm conduit entry at each end. Terminals accommodate 25mm2 cables. M Rating 160. |
65 |
| SUKF-80-CE |
80A 440V Triple Pole. With 32mm conduit entry at each end. Terminals accommodate 25mm2 cables. M Rating 150. |
65 |
-
Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
-
