Quick Details
-
Model Number:
-
KCD1-101B1
-
Max. Current:
-
8A
-
Mechanical Life:
-
10,000 Cycles
-
Function:
-
ON-OFF
-
Operating Temperature:
-
-25-85℃
-
Operation Force:
-
2N-8N
-
Insulation Resistance:
-
100MΩ
-
Certification:
-
CE,, CE
-
Withstand Voltage:
-
1500VAC/min
-
Contact Resistance:
-
50MΩ
-
Color:
-
Black
-
Item:
-
Rocker Switch
-
Material:
-
Nylon
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Liteam
-
Model Number:
-
KCD1-101B1
-
Max. Current:
-
8A
-
Mechanical Life:
-
10,000 Cycles
-
Function:
-
ON-OFF
-
Operating Temperature:
-
-25-85℃
-
Operation Force:
-
2N-8N
-
Insulation Resistance:
-
100MΩ
-
Certification:
-
CE,, CE
-
Withstand Voltage:
-
1500VAC/min
-
Contact Resistance:
-
50MΩ
-
Color:
-
Black
-
Item:
-
Rocker Switch
-
Material:
-
Nylon
Product Description
Summarization
|
Product Name |

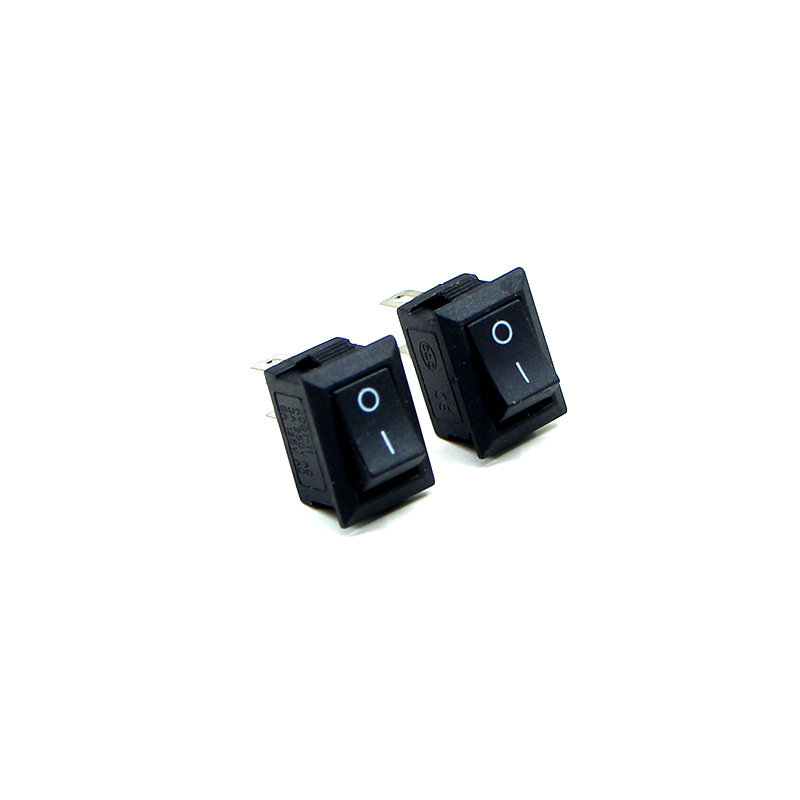

SPST ON-OFF 8A 250VAC Micro 2 Pin Rocker Switch |
| Rating | 8A 250V |
| Function | ON-OFF |
| Withstand Voltage | ≥1500VAC/5S |
| Button Color | Black |
| Insulation Resistance | ≥100MΩ |
| Contact Resistance | ≤50MΩ |
| Terminal Strength | ≥80N |
| Terminal to Button | ≥3000VAC/5S |
| Mechanical Life | 10,000 Cycles |
| Operation Force | 2N-8N |
| Material | Nylon |
