Quick Details
-
Dimension(L*W*H):
-
5200x2200x1580mm
-
Year:
-
2024
-
Weight (KG):
-
6000
-
Power (kW):
-
5.5
Quick Details
-
Place of Origin:
-
Nanjing, Jiangsu Province, China
-
Brand Name:
-
Nanjing Gewosi CNC Machine Tool Co., Ltd
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
5200x2200x1580mm
-
Year:
-
2024
-
Weight (KG):
-
6000
-
Power (kW):
-
5.5
Products Description

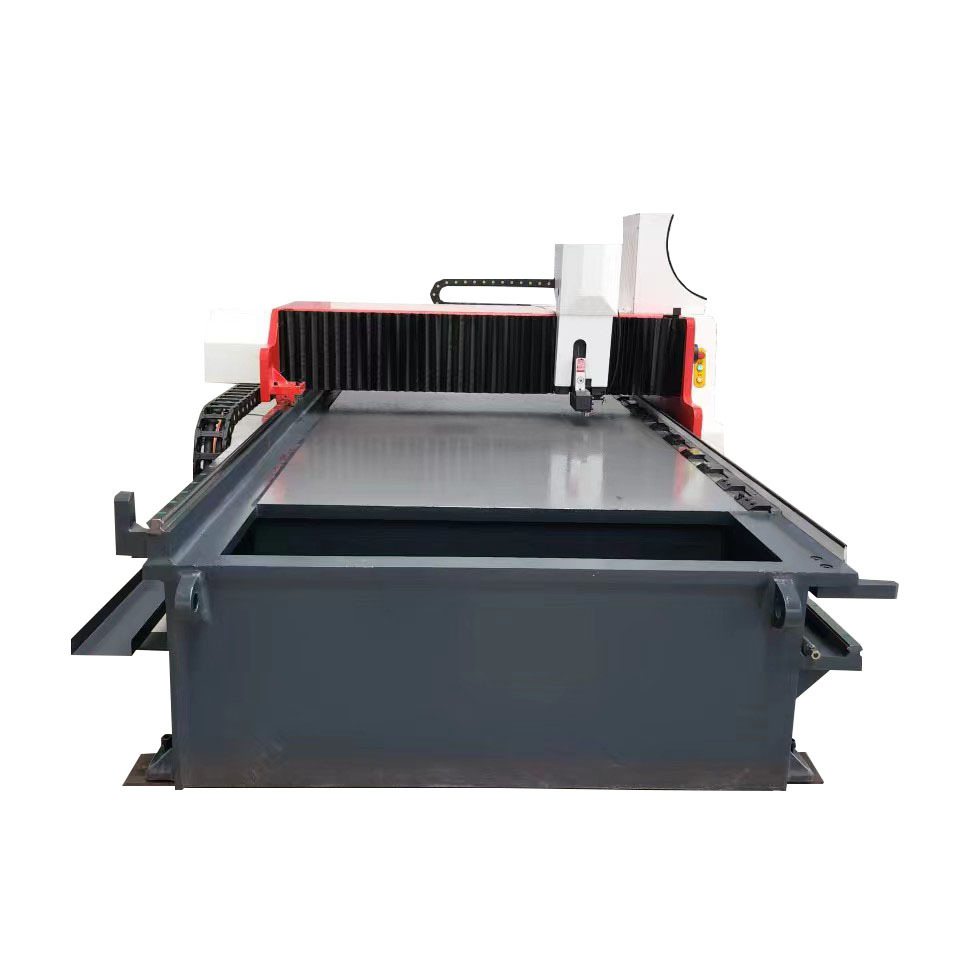

GNVP Series grooving machine introduction
In ordinary bending processing, a large arc is left at the bend, and the thicker the processed plate, the larger the arc.
The existence of large arc angle affects the overall beauty of the product. In order to solve this problem, our company launched a series of CNC sheet metal V-Groove planer products with a new design concept. This series of products have high processing accuracy, easy operation, stable and reliable operation. It is used for V-groove processing on the stainless steel, iron plate, copper and other plates, especially suitable for V-grooving processing before sheet metal bending.
Details Images
Z1, Z2 Axes
Z1, Z2 axes are with Japan's Mitsubishi servo motor Each servo motor is with 5.5kw power
Stable and high accuracy
Z1, Z2 axes are with Japan's Mitsubishi servo motor Each servo motor is with 5.5kw power
Stable and high accuracy
Japan Abel CNC Control System.
Very stable and easy operation. Support 4 axis linkage. Minimum setting unit 0.01mm. PLC breaking function, fixed scan time 10ms.
Each axis has feedback function for displaying axis position and avoiding allision.
Very stable and easy operation. Support 4 axis linkage. Minimum setting unit 0.01mm. PLC breaking function, fixed scan time 10ms.
Each axis has feedback function for displaying axis position and avoiding allision.
Tool.
It can be white steel blade and alloy blade. For thick sheet we recommend white steel plate.
It can be white steel blade and alloy blade. For thick sheet we recommend white steel plate.
Taiwan HIWIN or Japan THK guide rail.
Brand guide rail guarantees high moving precision.
Brand guide rail guarantees high moving precision.
Hydraulic type clamping
We call it Y2 axis, moving along with Y1, for quick and easy clamping of metal sheet.
Pneumatic blowing system.
Automatic air blowing system to blow away the debris on the table
Parameter
|
ITEM
|
VALUE
|
|
Model
|
GNKP 1250/4000
|
|
Max width of metal sheet
|
1250mm
|
|
Max length of metal sheet
|
4000mm
|
|
Max height of metal sheet
|
4.5mm
|
|
Min height of metal sheet
|
0.5mm
|
|
Min distance between V-groove
|
8mm
|
|
Cutting degree
|
75m/min(max)
|
|
Main motor power
|
5.5kw
|
|
Pressure of hydraulic system
|
7-9Mpa
|
|
Condition
|
New
|
|
Warranty of core components
|
2 years
|
|
Voltage
|
380V
|
|
Dimension(L*W*H)
|
6100X2300X1700mm
|
|
Weight (KG)
|
8570
|
|
Warranty
|
2 years
|
