Quick Details
-
Model Number:
-
2W-200-20
-
Brand Name:
-
Jery
-
Material:
-
Brass
-
Working Pressure::
-
16 bar
-
Size::
-
1/2" - 2"
-
Orifice size::
-
25mm
-
Working temperature::
-
-5~80℃
-
Working pressure::
-
0-10kgf/m2
-
Voltage::
-
DC12V 24V, AC110V 220V
-
Certificate:
-
CE ROHS ISO9001
Quick Details
-
Port Size:
-
1/4,1/2,3/8,1''
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2W-200-20
-
Brand Name:
-
Jery
-
Material:
-
Brass
-
Working Pressure::
-
16 bar
-
Size::
-
1/2" - 2"
-
Orifice size::
-
25mm
-
Working temperature::
-
-5~80℃
-
Working pressure::
-
0-10kgf/m2
-
Voltage::
-
DC12V 24V, AC110V 220V
-
Certificate:
-
CE ROHS ISO9001
Product Features

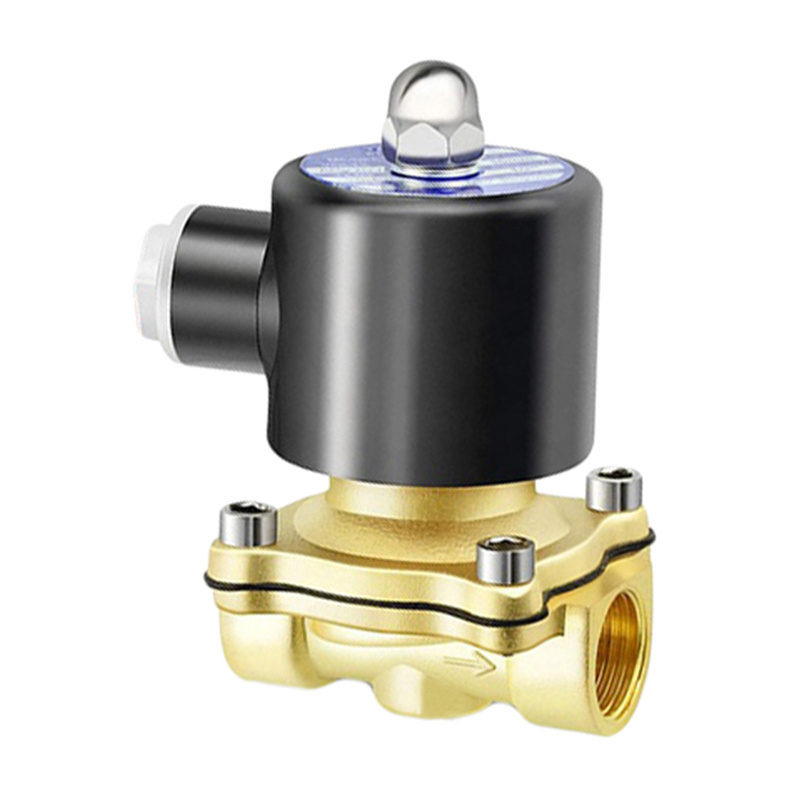

1. Compact Size, Easy to Assemble and Disassemble.
2. 2W-200-25 Solenoid Valves Has High Precision Pilot Head, Up to 5 Times/second Response Speed,
Suitable for a Wide Range Of,Responsive, Smooth Work, High-speed Use Without Jam.
3. Only 25 Psi Can Start the Pneumatic Valve, Which is Easy to Operate, Easy to Install and Easy to Remove.
4. This Valve's Body is Made of Solid Brass (very Corrosion Resistant Material).Safe and Reliable to Use.
5. The Inner Hole is Machined by a Special Process, with Low Frictional Resistance, Low Starting Air Pressure and Long Service Life.
6. Please Pay Attention to the Direction of Gas Flow and the Correct Connection when Installing. Pay Attention to Dust-proof.
7. Air Solenoid Valve Has Single Control Solenoid Valve Have Internal Pilot Structure, Sliding Column Structure, Good Sealing and Responsive.
8. Manual Operation, Smooth Operation, Accurate and Reliable Positioning. High Precision Stem Fit Degree is High Air Tightness.
9. Widely, Informs the to Control the Flow of Various Types of Fluids to the As Air, Water, Mud, Liquid Metals, Etc.
|
Model
|
2W025-08
|
2W040-10
|
2W160-15
|
2W200-20
|
2W250-25
|
2W350-35
|
2W400-40
|
2W500-50
|
|||||||
|
Fluid
|
Air/Water/Oil
|
|
|
|
|
|
|
|
|||||||
|
Action Mode
|
Direct-acting Type
|
|
Pilot-operated Type
|
|
|
|
|
|
|||||||
|
Type
|
Normal Closed
|
|
|
|
|
|
|
|
|||||||
|
Port Diameter(mm2)
|
2.5
|
4.0
|
16
|
20
|
25
|
35
|
40
|
50
|
|||||||
|
CV Value
|
0.23
|
0.60
|
4.8
|
7.6
|
12
|
24
|
29
|
48
|
|||||||
|
Port Size
|
G1/4
|
G3/8
|
G1/2
|
G3/4
|
G1
|
G 1/4
|
G1 1/2
|
G2
|
|||||||
|
Fluid Viscosity
|
Under 20CS
|
|
|
|
|
|
|
|
|||||||
|
Working Pressure
|
Water/Oil: 0-0.5MPa Air: 0-0.7MPa
|
|
|
|
|
|
|
|
|||||||
|
Proof Pressure
|
1.0MPa
|
|
|
|
|
|
|
|
|||||||
|
Temperature
|
-5-85℃
|
|
|
|
|
|
|
|
|||||||
|
Working Voltage Range
|
±10%
|
|
|
|
|
|
|
|
|||||||
|
Material Body
|
Brass
|
|
|
|
|
|
|
|
|||||||
|
Material Seal
|
NBR
|
|
|
|
|
|
|
|
|||||||
|
Coil Power
|
15VA
|
20VA
|
|
|
|
50VA
|
|
|
|||||||
1.Q: Are you trading company or manufacturer ?
A: Our factory in Ningbo Fenghua and our export office in Ningbo.
2.Q: What type of diaphragm used in oil media?
A: Usually, NBR, VITON, PTFE, and EPDM diaphragms are applicable in oil media.
3.Q: I have been told that 2-way valves only allow fluid flow in one direction is it correct?
A: Generally, 2-way valves allow fluid according to the cylinders. If there is a single-acting cylinder fluid flow in a single direction when a double-acting cylinder being used, fluid is able to flow in both directions.
4.Q: I am looking for a valve factory for a long term business relationship. What product you main specialized?
A: We've been in valve field since 2000s, mainly for solenoid valve, brass valve,screw air compressor solenoid valve, automobile valve,air treatment units and air suspension.
5.Q: I have a drawing for customized valve, can you do it?
A:Sure, we have our own CNC machine. No matter curved surface or complex process can be finished.
6.Q: Do you have stock for RTS?
A: Conventional products are fully stock on warehouse, once you place order, it will be send out in 1 day.
7.Q: We are concerned about the technical support after using your product. Any technical engineers can be provided?
A: Yes, our engineer 24 hrs onlineonce you contact.
8.Q: What methods of payment do you accept?
A: T/T, Paypal and credit card can be accept.
9.Q: What is the difference between a direct acting solenoid valve and a solenoid- pilot operated valve?
A: In a direct acting valve, the main body or poppet is moved using magnetic force generated by the electrical coil to shift the valve. In a solenoid-pilot operated valve, the main body or plunger is moved using force developed from the available pilot pressure. The coil in this case is used to control the pilot for the pilot piston.
10.Q: How many materials can be used apply to solenoid valve ?
A: Stainless steel 316L(Sanitary grades), Stainless Steel 316&304, Brass and cast steel.
11.Q:About samples
A:We can provide samples production and service. Usually 4 to 7 days, the sample can be sent to your hands. We will choose the shipping way as you required: by sea,by air,by express ect. Any question about samples, please contact us.
12.Q:For OEM products
A:We will finish the production within 20 days after payment has been confirmed.
