Quick Details
-
Brand Name:
-
EPEVER
-
Model Number:
-
DR2106N DDS
-
Work Time (h):
-
24
-
Max PV Power:
-
260W
-
Max PV Voltage:
-
60V
-
Certificate:
-
CE RoHs
-
Warranty:
-
1 year
-
Product name:
-
MPPT Solar Controller
-
Battery Input Voltage Range:
-
8.5~16V
-
BATT1 rated voltage:
-
12VDC
-
BATT2 rated voltage:
-
12VDC
-
Rated Charge Current:
-
20A
-
Dimension:
-
243.7*158*63mm
-
Net Weight:
-
1.1kg
-
Grounding:
-
Common negative
-
Max. conversion efficiency:
-
97.5%
-
Working environment temperature:
-
-20℃~+50℃(DDS) -30℃~+50℃(DDB)
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EPEVER
-
Model Number:
-
DR2106N DDS
-
Work Time (h):
-
24
-
Max PV Power:
-
260W
-
Max PV Voltage:
-
60V
-
Certificate:
-
CE RoHs
-
Warranty:
-
1 year
-
Product name:
-
MPPT Solar Controller
-
Battery Input Voltage Range:
-
8.5~16V
-
BATT1 rated voltage:
-
12VDC
-
BATT2 rated voltage:
-
12VDC
-
Rated Charge Current:
-
20A
-
Dimension:
-
243.7*158*63mm
-
Net Weight:
-
1.1kg
-
Grounding:
-
Common negative
-
Max. conversion efficiency:
-
97.5%
-
Working environment temperature:
-
-20℃~+50℃(DDS) -30℃~+50℃(DDB)
Product Description

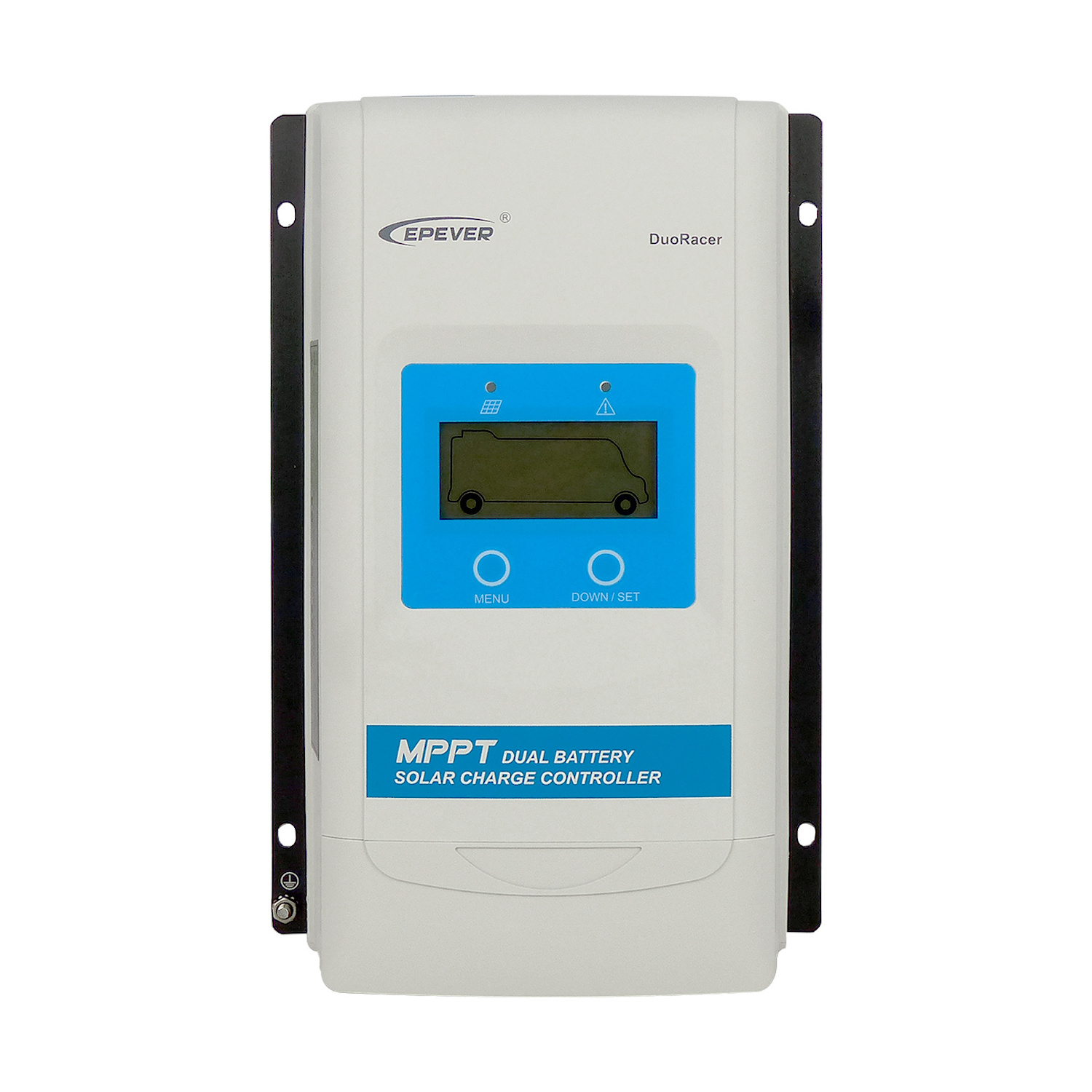

DuoRacer MPPT charge controller is made for charging two batteries (shown as main battery (BATT1) and starter battery (BATT2)below) at the same time in a solar system. This controller supports multiple main battery (BATT1) types, including Sealed, Gel,Flooded, LiFePO4, and Li-NiCoMn, which is suitable for RV, Camper, Boat, and so on.
Features：
* Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed
* Advanced MPPT control algorithm to minimize the MPPlost rate and lost time
* The wider range of the MPP operation voltage to improve the PV module utilization
* Auto control function of charging power & charging current limitation(BATT1)
* High quality and low failure rate components of ST, TI and Infineon to ensure the product life
* Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
* BATT1 type can be set via LED/LCD.
* Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
* 100% charging and discharging in operationenvironmental temperature range.
* LED and LCD dispiay units selectable.
* AES control signal for car refrigerator to avoid energy waste.
* Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.
Features：
* Maximum Power Point Tracking technology with ultra-fast tracking speed and the tracking efficiency is no less than 99.5% guaranteed
* Advanced MPPT control algorithm to minimize the MPPlost rate and lost time
* The wider range of the MPP operation voltage to improve the PV module utilization
* Auto control function of charging power & charging current limitation(BATT1)
* High quality and low failure rate components of ST, TI and Infineon to ensure the product life
* Digital circuit control of adaptive three-stage charging mode to enhance BATT1 life.
* BATT1 type can be set via LED/LCD.
* Product runs into the low-power mode when there is no manual operation for a long time, and charging conditions are not satisfied (PV<5V).
* 100% charging and discharging in operationenvironmental temperature range.
* LED and LCD dispiay units selectable.
* AES control signal for car refrigerator to avoid energy waste.
* Standard Modbus protocol, and RS485 (5V/200mA) communication port for the customer to expand the application area.
Specification
|
Product name
|
MPPT Solar Controller
|
|
Battery Input Voltage Range
|
8.5~16V
|
|
BATT1 rated voltage
|
12VDC
|
|
BATT2 rated voltage
|
12VDC
|
|
Rated Charge Current
|
20A
|
|
Dimension
|
243.7*158*63mm
|
|
Net Weight
|
1.1kg
|
|
Grounding
|
Common negative
|
|
Max. conversion efficiency
|
97.5%
|
|
Working environment temperature
|
-20℃~+50℃(DDS) -30℃~+50℃(DDB)
|
