Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
China
-
Product name:
-
Steel Grating
-
Material:
-
Stainless Steel
-
Type:
-
Plain Bar Grating
-
Surface treatment:
-
Painted
-
Usage:
-
Concrete Construction Support
-
Color:
-
Silver
-
Keyword:
-
Steel Grates Grating
-
Name:
-
ZHITAI High
-
Shape:
-
Customized Shape
-
Size:
-
Costomers' Requirements
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Office Building
-
Design Style:
-
Industrial
-
Place of Origin:
-
China
-
Product name:
-
Steel Grating
-
Material:
-
Stainless Steel
-
Type:
-
Plain Bar Grating
-
Surface treatment:
-
Painted
-
Usage:
-
Concrete Construction Support
-
Color:
-
Silver
-
Keyword:
-
Steel Grates Grating
-
Name:
-
ZHITAI High
-
Shape:
-
Customized Shape
-
Size:
-
Costomers' Requirements
Product Paramenters

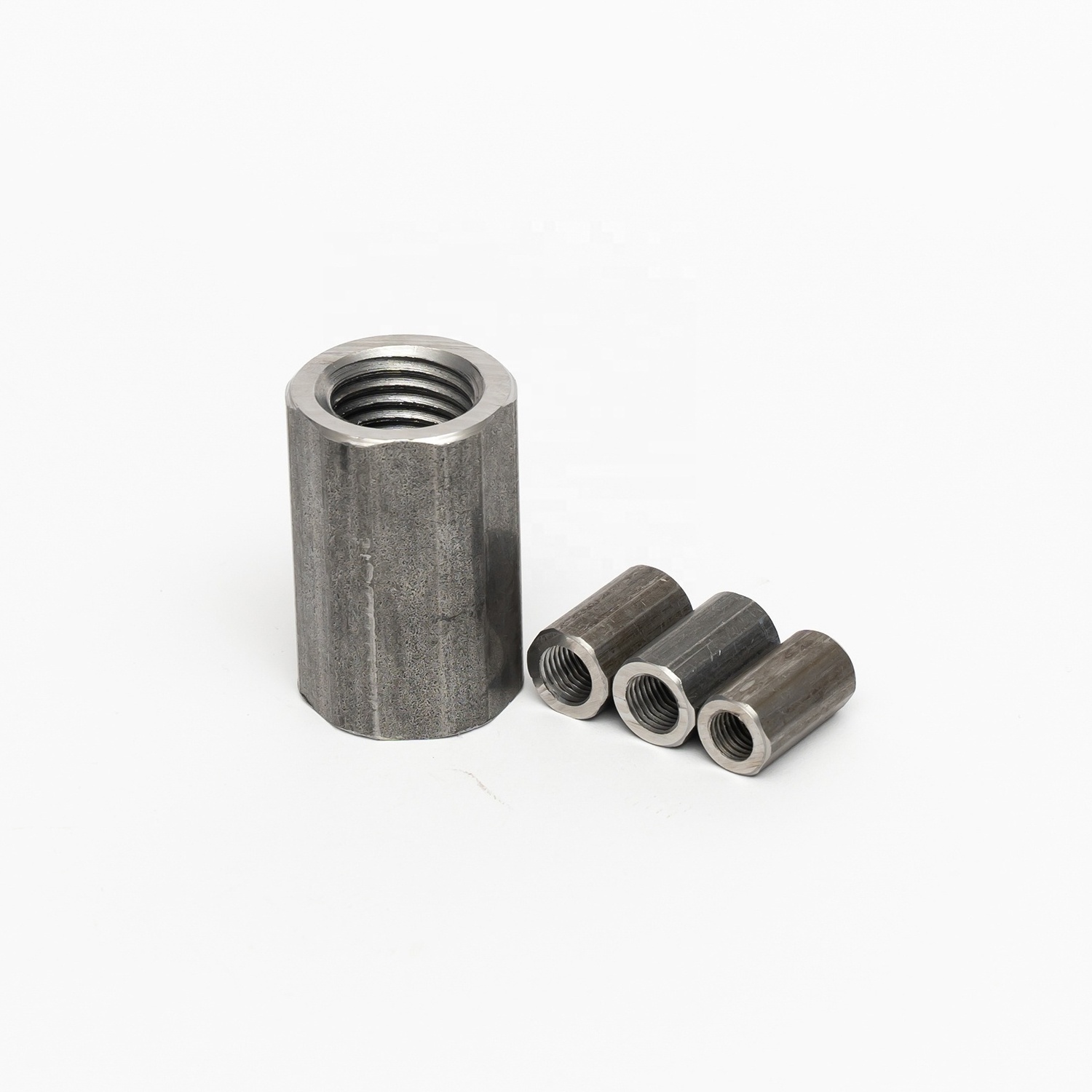

Standard rebar couplers made by raw material 45# carbon steel with competitive price and divided into standard couplers,
positional rebar couplers, and transition rebar couplers.
positional rebar couplers, and transition rebar couplers.
|
Name:
|
Thread Rebar Couplers Standard Type
|
|
|
|
|||
|
Used for Rebar:
|
HRB400/Grade 65/ and so on with rebar yield strength same as 500Mpa or lower than that.
|
|
|
|
|||
|
Raw Material:
|
S45C -yield strength 420Mpa, Tensile strength: 600-650MPa
|
|
|
|
|||
|
Size:
|
16mm/18mm/20mm/25mm/28mm/32mm/36mm/40mm
|
|
|
|
|||
|
Packing:
|
By bags and pallets packing, or wooden case packing as required (25KG smaller packing, 1700KG per pallet)
|
|
|
|
|||
|
Sample:
|
Free existing samples for checking dimension and quality
|
|
|
|
|||
|
Production time:
|
15-40 days based on different quantity after receive the prepayment
|
|
|
|
|||
|
Shipping Port:
|
Xingang,Tianjin Port, Shanghai Port, China.
|
|
|
|
|||
|
Payment Terms:
|
TT / LC
|
|
|
|
|||
|
Certificate:
|
ISO/ CE
|
|
|
|
|||
|
SIZE (mm)
|
Out Diameter (mm)
|
Length (mm)
|
Pitch (mm)
|
N.W (KG)
|
PACKING IN ONE BAG (NOS)
|
1 BAG WEIGHT (KG)
|
Approvals/ Certificate
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16
|
24
|
42
|
2.5
|
0.092
|
250
|
23.00
|
CE / ISO
|
|
|
|
18
|
27
|
45
|
2.5
|
0.136
|
200
|
27.20
|
CE / ISO
|
|
|
|
20
|
30
|
50
|
2.5
|
0.159
|
132
|
20.98
|
CE / ISO
|
|
|
|
22
|
33
|
54
|
2.5
|
0.21
|
121
|
25.41
|
CE / ISO
|
|
|
|
25
|
38
|
62
|
3.0
|
0.34
|
80
|
27.20
|
CE / ISO
|
|
|
|
28
|
42
|
68
|
3.0
|
0.46
|
56
|
25.76
|
CE / ISO
|
|
|
|
32
|
48
|
76
|
3.0
|
0.633
|
42
|
26.58
|
CE / ISO
|
|
|
|
36
|
53
|
84
|
3.0
|
0.905
|
27
|
24.43
|
CE / ISO
|
|
|
|
40
|
59
|
95
|
3.0
|
1.16
|
25
|
29.00
|
CE / ISO
|
|
|
1. Standard rebar couplers Introduction
Standard rebar coupler belongs to Rolling technology, it is a parallel-thread mechanical splicing system used for the 16mm to 40mm reinforcing bars mechanical connections. This system is first peeling the rebar rib and then doing thread by cold rolling, this technology can meet with China standard of JGJ107-2010, USA standard of ACI318, UK standard of BS8110, VN standard of TCVN8163,and other international standards. The couplers can be divided into standard couplers with all right-hand thread, and also positional rebar coupler with one side left-hand thread another size right-hand thread, also it has transition couplers which two sides have different diameters. Also, this coupler has a competitive price over super couplers and is suitable for little lower rebar grades such as HRB400 or HRB500 rebar, it has full sizes from 16mm to 40mm.
2.45# steel carbon steel rebar couplers Features and advantages
a.Saving cost and easy operation than the lapping of rebar
b.One time loading can finish the rib peeling and thread rolling together.
c.Single step process, only one machine, one operator.
d.Assemble by visual inspection
e.Standard ISO parallel Metric Thread designs.
f.Used for many kinds of connections for a position or transition couplers
b.One time loading can finish the rib peeling and thread rolling together.
c.Single step process, only one machine, one operator.
d.Assemble by visual inspection
e.Standard ISO parallel Metric Thread designs.
f.Used for many kinds of connections for a position or transition couplers
