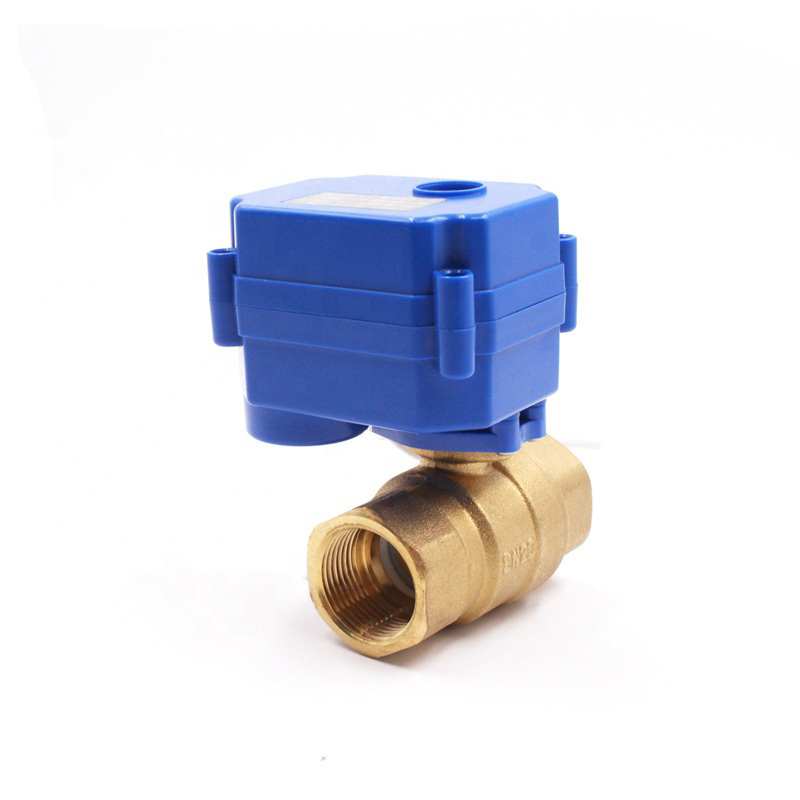

Quick Details
-
Actuator control wirng:
-
2,3,5 wires/CR01, CR02, CR03, CR04, CR05, CR06
-
Actuator enclosure:
-
IP65/IP67
-
Actuator output torque:
-
2N.m/6MN/10N.m
-
Actuator Working Voltage:
-
DC3-6V,AC/DC9-24V,AC85-265V
-
Cable Length:
-
0.4m~10m
-
Liquid temperature:
-
0-120 Celsius degree
-
Power Consumption:
-
2W,4W,6W
Quick Details
-
Place of Origin:
-
China
-
Standard or Nonstandard:
-
Standard
-
Actuator rotation:
-
90 degree
-
Actuator control wirng:
-
2,3,5 wires/CR01, CR02, CR03, CR04, CR05, CR06
-
Actuator enclosure:
-
IP65/IP67
-
Actuator output torque:
-
2N.m/6MN/10N.m
-
Actuator Working Voltage:
-
DC3-6V,AC/DC9-24V,AC85-265V
-
Cable Length:
-
0.4m~10m
-
Liquid temperature:
-
0-120 Celsius degree
-
Power Consumption:
-
2W,4W,6W
1, Metal gearbox and POM gear design, low noise, perform reliably .
2, Long service life: more than 100000 circles .
3,E lectric limit and machinery limit design, located accurately, avoid gear run continuously.
4, Mufti-angle assembling, easy to install .
5, Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1.Heat energy meters, fire work, save water system .
2.Auto control system, industrial mini auto control equipment .
3.Water saving equipment, drinking water equipment .
4.Air-conditioning fan coin(HVAC) .
| Product Model | Rated Voltage | Working current | Output torque | Open/close time | Size |
| CWX-15Q |
DC3-6V
DC12V AC/DC9-24V AC220V AC85-265V |
Max100mA (CR04 except Max150mA) |
Max1.5NM | <3s | DN8-DN20 |
| CWX-15N | Max2.0NM | <5s | DN8-DN32 | ||
| Working pressure | Power | Medium temperature | Control mode | IP Grade | Special function |
| Max1.0Mpa | <3W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 | IP65 | CR01 CR02 CR03 CR04(with singal feedback) |
|
Brass
|
Connection | Sizes | d | H | L |
|
Both female thread Full-port |
DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
|
Vertical Three-way |
DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN32 | 20 | 76 | 50 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
