Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
150 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Portable 4G Hotspot
-
CPU:
-
ASR1803
-
Cellular:
-
LTE FDD, LTE TDD, UMTS
-
WiFi:
-
2.4GHz 802.11n
-
WiFi Speed:
-
150Mbps
-
SIM:
-
Micro SIM Card Slot/ESIM
-
Micro USB:
-
USB Power Input (5V/1A)
-
Cellular Antenna:
-
Internal 4G Antenna
-
Dimension:
-
92 x 30 x 13mm
-
Weight:
-
Approx. 25g (for reference)
Quick Details
-
Max. LAN Data Rate:
-
150Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
150 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Portable 4G Hotspot
-
CPU:
-
ASR1803
-
Cellular:
-
LTE FDD, LTE TDD, UMTS
-
WiFi:
-
2.4GHz 802.11n
-
WiFi Speed:
-
150Mbps
-
SIM:
-
Micro SIM Card Slot/ESIM
-
Micro USB:
-
USB Power Input (5V/1A)
-
Cellular Antenna:
-
Internal 4G Antenna
-
Dimension:
-
92 x 30 x 13mm
-
Weight:
-
Approx. 25g (for reference)
About order
For Ready to Ship Order：
1. About the frequency band, Please refer to Model form below for details,
Please confirm that the following frequency bands can be used before placing orders!!!
2. If you have any question about our company or products, please feel free to contact us.
EU Version：LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
UMTS: B1/B5/B8
Recommend Products
Product Description
Specification
|
Model
|

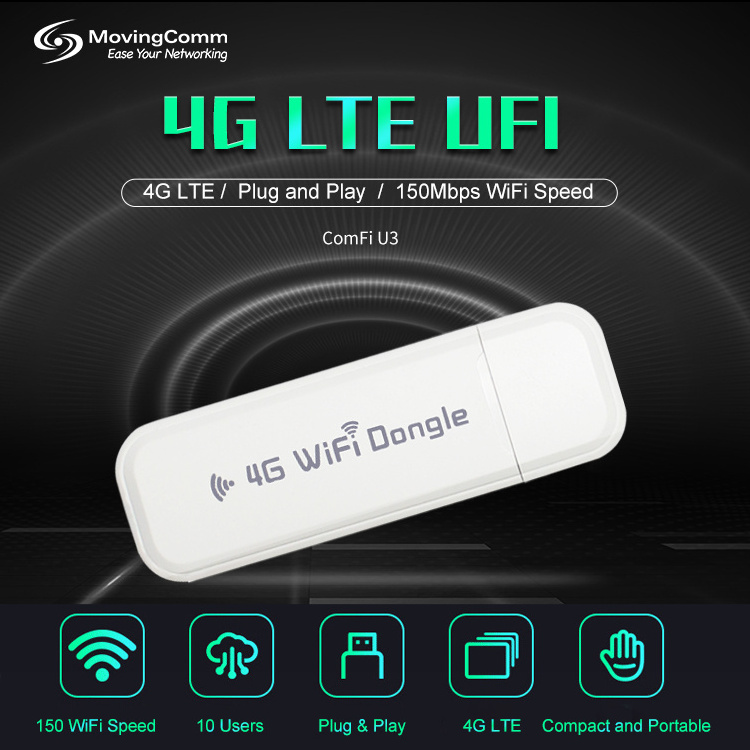

U3
|
|
|
||
|
CPU
|
ASR1803
|
|
|
||
|
FLASH/RAM
|
16MB Flash ROM + 32MB DRAM
|
|
|
||
|
4G Specs
|
Band
|
FDD
|
B1, B3, B5, B8
|
||
|
|
|
TDD
|
B38, B40, B41
|
||
|
|
|
UMTS
|
B1, B5, B8
|
||
|
|
3GPP
|
FDD/TDD
|
3GPP R9 Cat.4
|
||
|
|
Transfer rate
|
FDD
|
up to 150Mbps DL, 50Mbps UL
|
||
|
|
|
TDD
|
up to 150Mbps DL, 50Mbps UL
|
||
|
|
Cellular Antenna
|
Internal 4G Antenna
|
|
||
|
Wi-Fi
|
Wi-Fi Standards
|
IEEE 802.11b/g/n
|
|
||
|
|
Wi-Fi Transfer Speed
|
150Mbps
|
|
||
|
|
Wi-Fi Encryption
|
WPA/WPA2
|
|
||
|
|
Wi-Fi Frequency
|
2.4GHz
|
|
||
|
|
Wi-Fi Antenna
|
Internal Wi-Fi Antenna
|
|
||
|
Interfaces
|
SIM
|
Micro SIM Card Slot/ESIM
|
|
||
|
|
Micro USB
|
USB Power Input (5V/1A)
|
|
||
|
|
Reset
|
Long Press RESET 3-sec to activate reset factory default setting
|
|
||
|
Indicator
|
LED
|
Purple light is always on: the device is powered on.
Steady red light: SIM card is not recognized, PIN code is not input or PIN code verification fails, network search or registration fails, Wi-Fi is not turned on, or Wi-Fi is abnormal. Steady blue light: The device is registered to the network, and the Wi-Fi function is normal and turned on. Blinking blue light: The device is connected to the network, the Wi-Fi function is normal and it is turned on. The light is off and off: the device is powered off. |
|
||
|
Internet
|
Wi-Fi Connection
|
WIFI AP, up to 10 Client Connection
|
|
||
|
|
WIFI SSID
|
UFI_xxxxxx
|
|
||
|
|
Default Password
|
1234567890
|
|
||
|
Environment
|
Operating Temp.
|
-0°C to 40°C
|
|
||
|
|
Storage Temp
|
-20°C to 70°C
|
|
||
|
|
Humidity
|
5% ~ 95% Non-Condensing
|
|
||
|
|
Operation System
|
Windows XP, Windows Vista, Windows 7, Windows 10 or later
MAC OS X or later IOS 5 or later Android 2.4 or later |
|
||
|
Others
|
Dimension
|
92mm x 30mm x 13mm
|
|
||
|
|
Weight
|
Approx. 25g (for reference)
|
|
||
|
|
Color
|
White or Black, Can Custom Color for OEM Request
|
|
||
