Quick Details
-
Bottle Volume(ml):
-
750 ml, 0-2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PLANET MACHINE, PLANET MACHINE
-
Year:
-
2023
-
Voltage:
-
Acoording customer country
-
Dimension(L*W*H):
-
4500*2200*2300
-
Hollow part volume:
-
0-750ml
-
Power (kW):
-
24-60
-
Weight (KG):
-
6500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
output:
-
6600-18000
-
Size of the machine:
-
4.5x2.2x2.3m
-
Weight:
-
7500kg
-
Power:
-
24-60kw
-
Certification:
-
CE, ISO, TUV
Quick Details
-
Neck Diameter(mm):
-
28 mm
-
Max.Bottle Diameter(mm):
-
72 mm
-
Max.Bottle Height(mm):
-
120 mm, 330 mm
-
Bottle Volume(ml):
-
750 ml, 0-2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PLANET MACHINE, PLANET MACHINE
-
Year:
-
2023
-
Voltage:
-
Acoording customer country
-
Dimension(L*W*H):
-
4500*2200*2300
-
Hollow part volume:
-
0-750ml
-
Power (kW):
-
24-60
-
Weight (KG):
-
6500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
output:
-
6600-18000
-
Size of the machine:
-
4.5x2.2x2.3m
-
Weight:
-
7500kg
-
Power:
-
24-60kw
-
Certification:
-
CE, ISO, TUV
Products Description
"Blow Mold Machine System For Your Line From A-Z"
Blow molding system is characterized by its reasonable structure, lower power consumption, good stability, flexible blowing process and simple operation, especially on the production of drinking water, carbonated beverage and other common PET bottles, as well as heat-resistant bottle, mid-temperature PET bottle, sterile cold PET bottle.

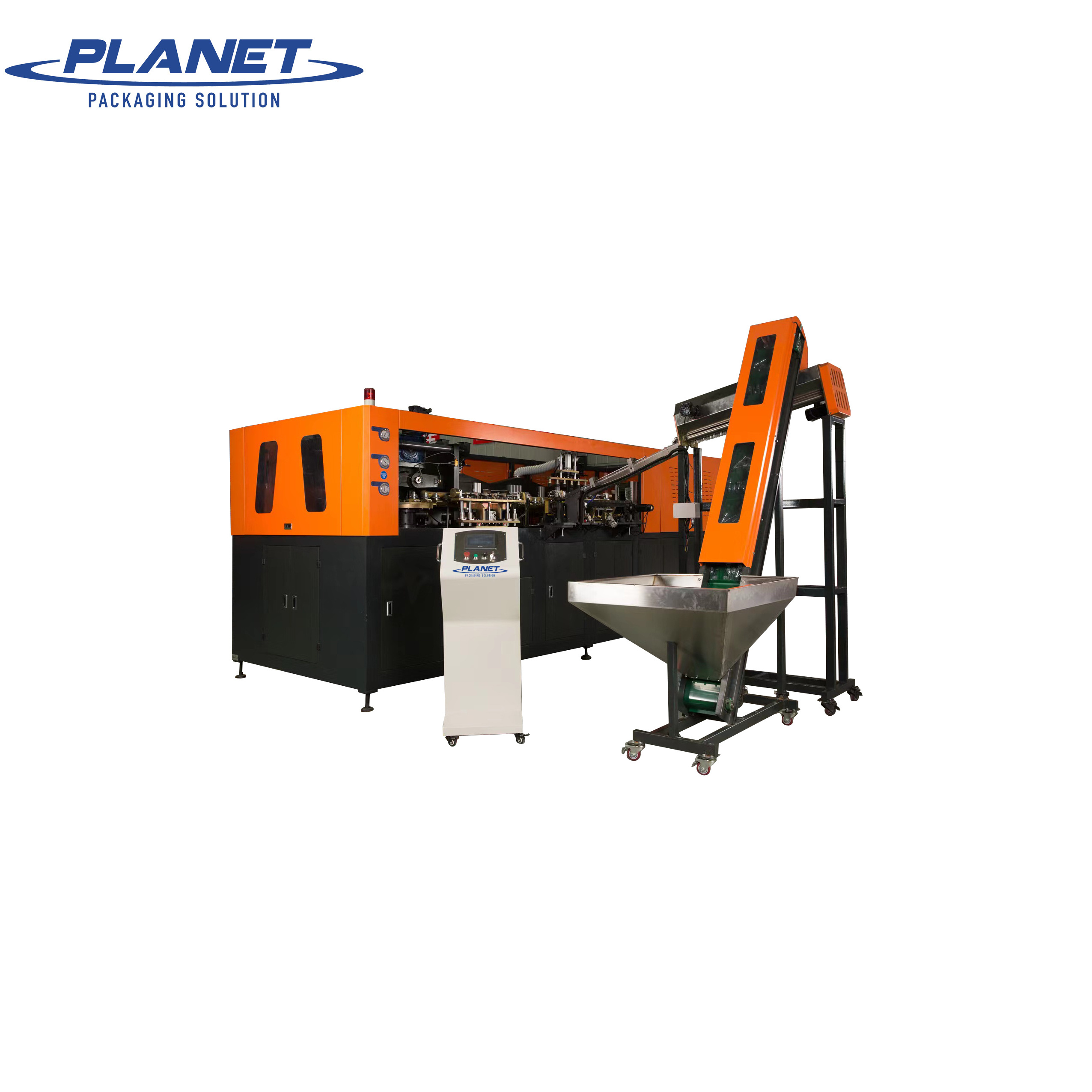

Linear automatic high speed bottle blowing machine 0.75L series
Product features
1.Accurate preform-divided
Servo driven equidistance preform-divided, safe, fast and high precision.
2.Servo mold-clamping
Servo driven mold clamp, bottom mold and mold clamping linkage, High-pressure mold-locked guarantee the bottle bloiwng speed and quality
3.Stable main transmission
Servo driven stretch rods and main transmission
double limits
Stretch rods can be auto adjusted, flexible and high precision.
4. Safetly mold framework structure
Adopts drawer type structure, mold change and installation are more safe and time-saving with special auxiliary tools.
5.Intelligent operation system
Human-machine interface control system, high automation, easy opeation and safe.
6.Standardized spare parts
High-quality standarized spare parts guarantee the reliable and stability of the machines
Product Paramenters
|
Series/Model
|
0.75L series
|
PM-6
|
PM-6E
|
PM-9E
|
PMG-7
|
PMG-9
|
|||||
|
Technical parameter
|
Maximum bottle volume
|
0.75L
|
0.75L
|
0.75L
|
0.75L
|
0.75L
|
|||||
|
|
Maximum bottle diameter
|
Φ68
|
Φ68
|
Φ68
|
Φ72
|
Φ72
|
|||||
|
|
Maximum bottle height
|
245mm
|
245mm
|
240mm
|
250mm
|
230mm
|
|||||
|
|
Heating unit
|
4
|
4
|
6
|
6
|
8
|
|||||
|
|
Design output rate(bph)
|
6600bph
|
9600bph
|
12000bph
|
14000bph
|
18000bph
|
|||||
|
|
Number of molds
|
6
|
6
|
9
|
7
|
9
|
|||||
|
|
Service power(kw/h）
|
24-36
|
30-50
|
40-60
|
30-60
|
45-60
|
|||||
|
|
Installation power（kw)
|
70
|
75
|
110
|
110
|
128
|
|||||
|
|
HP air consumption
(m3/min)
|
4
|
6
|
8
|
7
|
10
|
|||||
|
|
LP air consumption(m3/min)
|
3
|
2
|
2
|
/
|
/
|
|||||
|
|
Weight (T)
|
6.5
|
7.5
|
9.5
|
8
|
10
|
|||||
|
|
Dimension(M)
|
4.1*2.3*2.3
|
4.5*2.4*2.3
|
5.6*2.6*2.4
|
7.0*2.2*2.9
|
5.7*2.2*2.7
|
|||||
|
|
|
|
|
|
|
|
|||||
Detail Images
Bottle preform holder
made by high accurancy
CNC, to guarrantee the long-term use and stable movement on the cycle of pet preform
Heating lamp
Apply with high quality
Infrared lamp, to guarrantee the long-term use and low cost to do manintenance
Servo stretching mold
The servo stretching speed is fast and the position is precise. When adjusting the stretching height, only the data of the motor needs to be adjusted, without the need for manual adjustment of the machine hardware
Blowing mold
The mold is made by 7075 Aluminum material, fast cooling cycle, so the bottle is shaped beautiful,
highly polished,
Good transparency, light mold weight, easy to change mold.
Standardized electrical design
Professional engineer design all electrical components, and apply high quality imported and local brands, to guarrantee the stable performance of our machines
Independent control box
whole movement is controled on the PLC on control box, easy to use and do adjustment the machine. impove the efficiency.
