Quick Details
-
Product name:
-
Swing turnstile
-
Material:
-
304 Stainless Steel
-
Application:
-
office
-
Warranty:
-
12 months
-
Size:
-
1200*200*1000 mm
-
Certificate:
-
CE Approved
-
Weight:
-
60KG
-
Communication:
-
RS485 TCP/IP
-
Speed:
-
30-40 R/min
-
Power supply:
-
AC220V/110V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zento
-
Model Number:
-
ZT-925A
-
Product name:
-
Swing turnstile
-
Material:
-
304 Stainless Steel
-
Application:
-
office
-
Warranty:
-
12 months
-
Size:
-
1200*200*1000 mm
-
Certificate:
-
CE Approved
-
Weight:
-
60KG
-
Communication:
-
RS485 TCP/IP
-
Speed:
-
30-40 R/min
-
Power supply:
-
AC220V/110V
Product Description

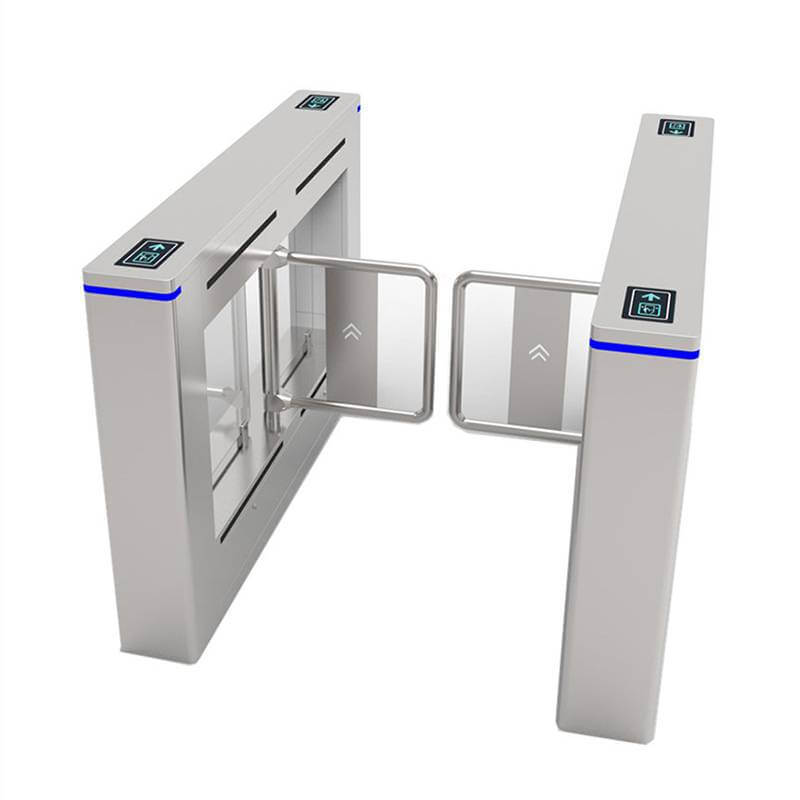

Swing barrier gate turnstile is mainly used for channel entrance and exit management. The general application site only allows personnel to pass, including personnel tow the baggage, and the disabled person.Considering that the swing gate can achieve wider channel characteristics than the flap turnstile gate. Most of the swing gates can be used to pass through some non-motorized vehicles such as pedestrians, bicycles, mopeds and handicapped vehicles. Swing gate Turnstiles are suitable for elegant and luxury entrance solutions. Its unique features and extensible functions allow it to integrate with any access control system.
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
Zento
|
|
Model Number
|
ZT-927A
|
|
Product name
|
Swing turnstile
|
|
Material
|
304 Stainless Steel
|
|
Application
|
office
|
|
Warranty
|
12 months
|
|
Size
|
1200*200*1000 mm
|
|
Certificate
|
CE Approved
|
|
Weight
|
60KG
|
|
Communication
|
RS485 TCP/IP
|
|
Speed
|
30-40 R/min
|
|
Power supply
|
AC220V/110V
|
CE Certificate
Packing & Delivery
wooden case
Product Size
Product Details
Mechanical Component:High quality &efficient
Machanism Core、Main Board、Positioning Switch、Electric Control Box、Light Board 、Infrared Sensor、Air Switch
Features of Pedestrian Swing Gate:
1.A swing turnstile gate is a high speed gate, which usually applied in the location with high traffic flow in bi-direction running.
2.The chassis is made from hairline texture 304 stainless steel, which creates a seamless and elegant access point to match most indoor environments.
3.This swing barrier gate comes with international standard RS485 and relays Which makes it widely compatible with all existing software in the industry and almost all of the access control like RFID system, Bar codes system, Face recognition system and fingerprint system, etc.
4.In case of emergency, cut off the power, the Slim swing turnstile gate will open automatically to allow free passage which is complying with fire safety requirements. But it has to comes with a battery. As for export, the battery is sensitive, we can use the capacitor to replace
5.Optical Turnstiles are suitable for luxury and high-end entrance solutions.
6.The whole system runs smoothly, low noise, high speed.
7.Alarm function, if their an illegal intrusion and reverse intrusion, the gate will alarm and the door will lock.
8.There is a total of 5pairs of infrared sensors. The middle sensors are to prevent pinch pedestrians.
9.Anti-tailing function, one person can pass at one time. If someone tails after the front people, the gate will alarm
10.LED indicator. Red cross and green arrow. There are also LED indicators on the front post. The LED light can be added to the arms.
11.Bi-directional access reduces the need for more gates. It is accommodated for wheel Chair, shopping stroller increases the passing efficiency.
12.Automatic reset function. If the people did pass within the preset time (default time is 5 seconds), the system will cancel the authority of the user and close automatically
13.Anti-bump, Anti clamp, The gates come with brushless During operation if someone hits the arm, the gate will reset automatically. This function effectively prevents pedestrians especially children from bumping, clipping, st
Compatible with all kinds of access control system
Application:
This model is widely used in Bus and Train station, School,Port, Subway, Factory, Hospital, residential area, hotel, company and so on any place that requires a smart flow control.
