- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
7200*2550*3400mm
-
Power:
-
55kw
-
Product name:
-

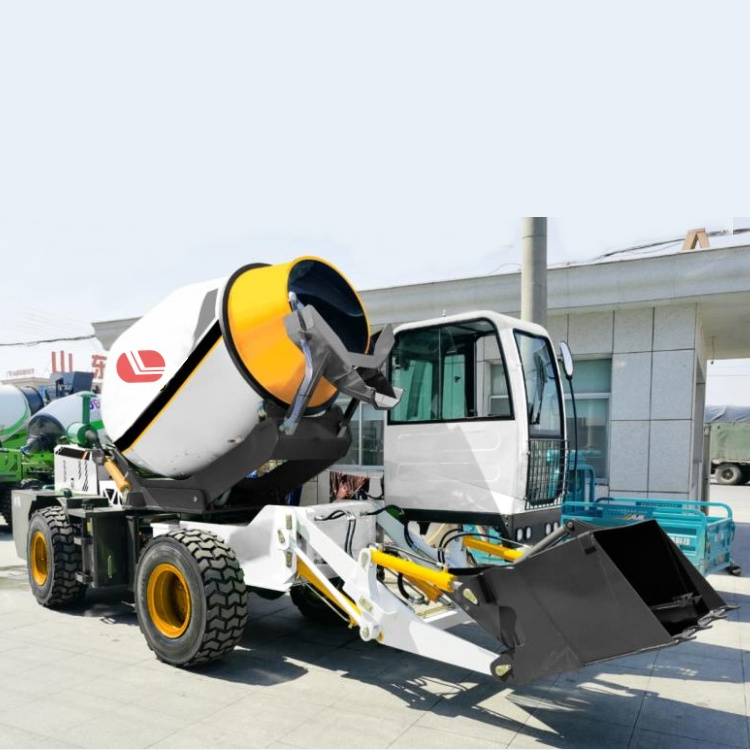

Self-loading Concrete Mixer Truck
-
Type:
-
Concrete Truck Drum Mixer
-
Driving type:
-
4 Wheel Driver
-
Capacity:
-
3.5m3
-
Color:
-
Customer's Requirement
-
Advantage:
-
High Productivity
-
Application:
-
Construction Industry
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XINYU
-
Weight:
-
4200 kg
-
Dimension(L*W*H):
-
7200*2550*3400mm
-
Power:
-
55kw
-
Product name:
-
Self-loading Concrete Mixer Truck
-
Type:
-
Concrete Truck Drum Mixer
-
Driving type:
-
4 Wheel Driver
-
Capacity:
-
3.5m3
-
Color:
-
Customer's Requirement
-
Advantage:
-
High Productivity
-
Application:
-
Construction Industry

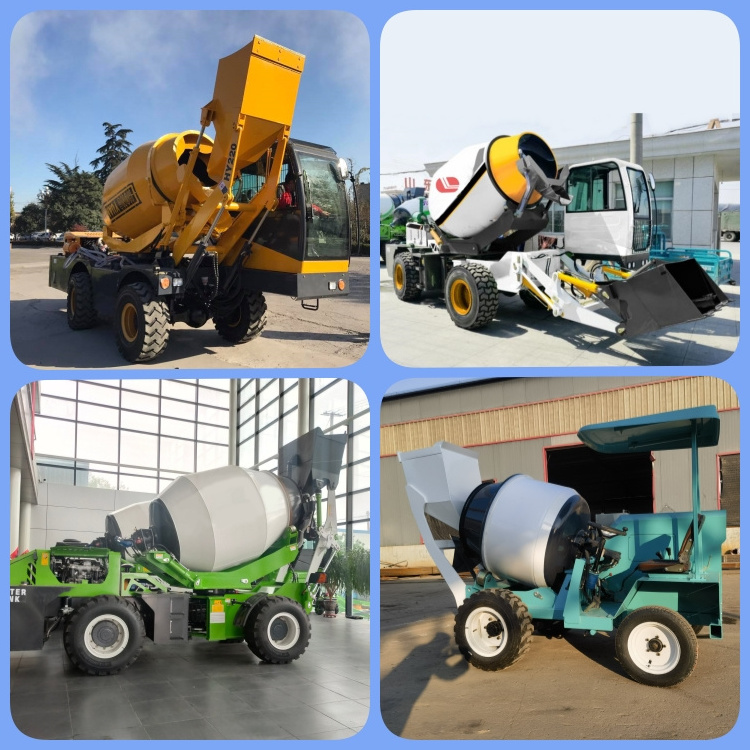

We have different capacity
0.8m3, 1.2m3, 1.8m3, 2.0m3, 2.4m3, 3.5m3,4m3, 6.5m3
etc.
JBC series concrete mixer is the self loading concrete mixer with one mixing motor and one lifting motor.
The concrete mixer is feeding the material by the cone-shape motor transmission, the up and down of the hopper and the stir bin turn and reversal is controlled by the electrical appliance.
Technical Parameters of Self Loading Concrete Mixer :
|
Model
|
JBC1.2
|
JBC2.6
|
JBC3.5
|
JBC5.5
|
|
Drum geometrical capacity
|
1,700 L
|
3,580 L
|
4,740 L
|
7,800 L
|
|
Discharge Capacity
|
1,200 L
|
2,600 L
|
3,500 L
|
5,500 L
|
|
Engine Brand
|
Yuchai
|
Yuchai
|
Yuchai
|
Yuchai
|
|
Rated Power
|
55 kw
|
78 kw
|
85 kw
|
110 kw
|
|
Gear
|
4 forward 4 back
|
4 forward 4 back
|
4 forward + 4 back
|
4 forward + 4 back
|
|
Fuel tank
|
63 L
|
75 L
|
75 L
|
75 L
|
|
Water tank
|
400 L
|
500 L
|
620 L
|
860 L
|
|
Water supply
|
Time relay
|
Time relay
|
Time relay
|
Time relay
|
|
Wheelbase
|
2,400 mm
|
2,800 mm
|
2,900 mm
|
3350 mm
|
|
Drive Form
|
Torque converter
|
Torque converter
|
Torque converter
|
Torque converter
|
Zhengzhou Xinyu Machine Manufacture Co., Ltd is the specialized corporation which produces large and medium construction equipment products. We specialize in the production of concrete mixing plant, asphalt mixing station, JS series twin shaft concrete mixer, concrete block making machine amd tower crane.
With nearly 20 years of development, successfully completed the original accumulation of capital. Our company covers an area of 126,000 square meters, with 78 million yuan in fixed assets and the employees are more than 1000. We have abundant economic strength, strong technical force, huge sales network and perfect after-sales service.
Use the technical strength, advanced technology, continuous product upgrades to make the quality of the products more perfect, more applicable. We not only have good sales in the domestic market, but also exported to Russia, Kazakhstan, Mongolia, and Viet Nam and other countries.
Q:Do you have set up an independent factory?
A:We have our own factory. Has the specialized concrete machinery product equipment factory.
Q:What can you do for us?
A:1. Before sales can be targeted to give some constructive Suggestions.
2.Make a specific plan for your needs.
3. After sales reference specific products, different products have different services. Refer to the specific product description.
Q
: What is your terms of payment ?
A: 30% paid by T/T as deposit in advance, the balance should be paid before shippment.
Q:Can your engineers train our workers in our factories?
A:Yes, we have a very large engineering installation team that can train and instruct your workers to operate the installation equipment.
Q:If we provide the parameter requirements, can we make it to order?
A:We provide customized services as long as you provide the appropriate drawings and product requirements.
Q:How long is your lead time?
A:Our delivery time varies according to the quantity of the order, usually around 10 days.
