APP:CamHi

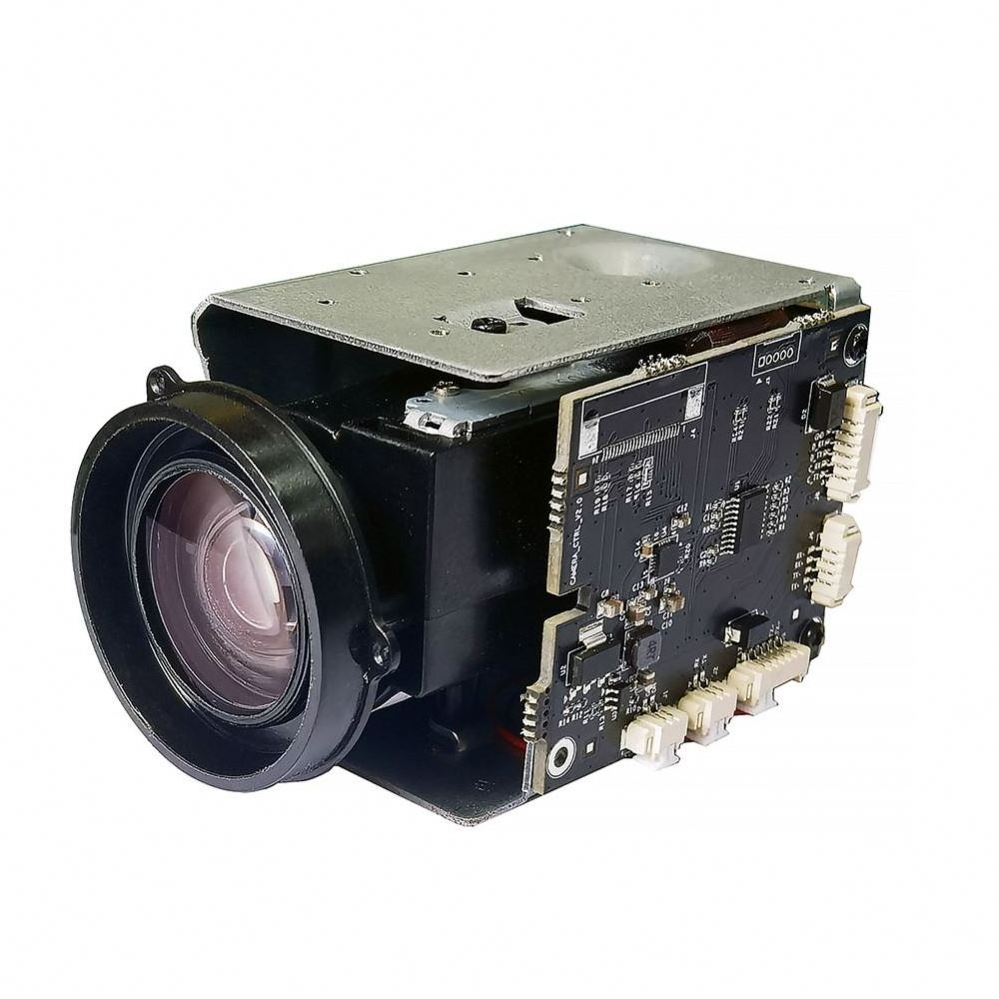

5MP IP Camera adopts highly integrated SOC GOKE7205V300 processor, extremely low power consumption and strong stability; supports H.265 compression algorithm to ensure image quality while effectively reducing network bandwidth occupation; powerful network function, support standard on vif Protocol, support RTSP, support alarm picture upload FTP server, alarm picture to E-Mail, support mobile phone remote monitoring;

Support Chinese, English, Francais, Deutsch ,Italiano ,Espanol ,Korean,Polski,Russia

Remarks: This movement supports VISCA protocol (connected to Speed dome PTZ camera) and PTZ
serial port protocol (connected to PTZ). The default is VISCA protocol.

Interface definition :

Command and Instructions:

1.The lens curve learning command: 253 + set + 252 +call

(The distance between the camera and the object must be greater than 50meters)

2.Minimum focus distance setting:Set command: 251 + set + X + call.

When X = 1, the minimum focusing distance is about 1.5 meters;

when X = 2, the minimum focusing distance is about 3 meters;

when X = 3, the minimum focusing distance is about 6 meters;

when X = 4, the focusing distance is infinity.Default X = 2

3. Focus mode setting:Set command: 250 + set + X + call.

When X = 1, the focus will only be triggered when the zoom movement is triggered;

when X = 2, any change in the pan, tilt, left, right, and zoom modes will trigger the movement to focus;

when X = 3, the automatic focusing mode, In any case, the movement will automatically focus. Default X = 2

4. Modification Digital ZOOM:

If ip address of camera is 192.168.188, Please open the browser and enter this address:

http://192.168.1.88/cgi-bin/hi3510/param.cgi?cmd=setmaxezoom&-maxezoom=10

When maxezoom=1,digital zoom close,

Maxezoom value can be equal to any value from 1-10, representing the multiplier digital zoom of the number.

After the command is executed, please power off   andrestart the camera. digital zoom to take effect

5.ZOOM OSD display and not display: 225 + call + X + call,

when X = 1, the ZOOM timesdisplay is on;

when X = 2, the zoom timesdisplay is off, the default X =1

6.Modify the control protocol method (you need to restart the movement to take effect after modification):

254+set+1+set: VISCA protocol (default) (PELCO-D, baud rate: 9600, address code: 1/255)

254+set+2+set: PTZ serial port protocol (PELCO-D, baud rate: 9600, address: 1

7. The movement supports the standard Visca protocol with a baud rate of 9600.

The address codes of the dome camera is 1

Humanoid recognition algorithm based on deep learning.Based on hua wei's deep learning humanoid recognition      algorithm V2.0,

itprovides accurate humanoid recognition, providing continuous humanoid coordinates for the camera and smooth   tracking of the camera.

1X 240x zoom wireless IP CAMERA

1x cable

1X wifi antenna
1X Manual

Noteworthy: First of all, thank you for visiting my official store. As the products we sell have a certain degree of professionalism, we still provide detailed instructions and video tutorials for using the products, but buyers may encounter problems during the use process. Please do not worry, we provide you with a comprehensive Support services and support. Teach you how to use it like a friend. Normally, we only need a few minutes to assist. So if you encounter problems, please ask us for help in time. We may not be able to respond to your message in time due to the time difference. Please leave us a message and we will reply you within 4 hours and provide you with assistance. Please do not leave negative comments when encountering problems. Because we will provide 2 years product warranty service and technical support for each buyer. Our technical services include the following methods:

1. Text message help (simple question)
2. How to deal with common problems on the official website
3. Provide services to you through the remote connection that comes with the camera
4. Provide remote assistance through Teamviewer software.
