Quick Details
-
Brand Name:
-
Kungf Solar
-
Model Number:
-
VT2048/VT4048/VT6048/VT8048
-
Work Time (h):
-
24hours
-
Max PV Power:
-
3840W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE
-
Warranty:
-
18 months
-
Product name:
-

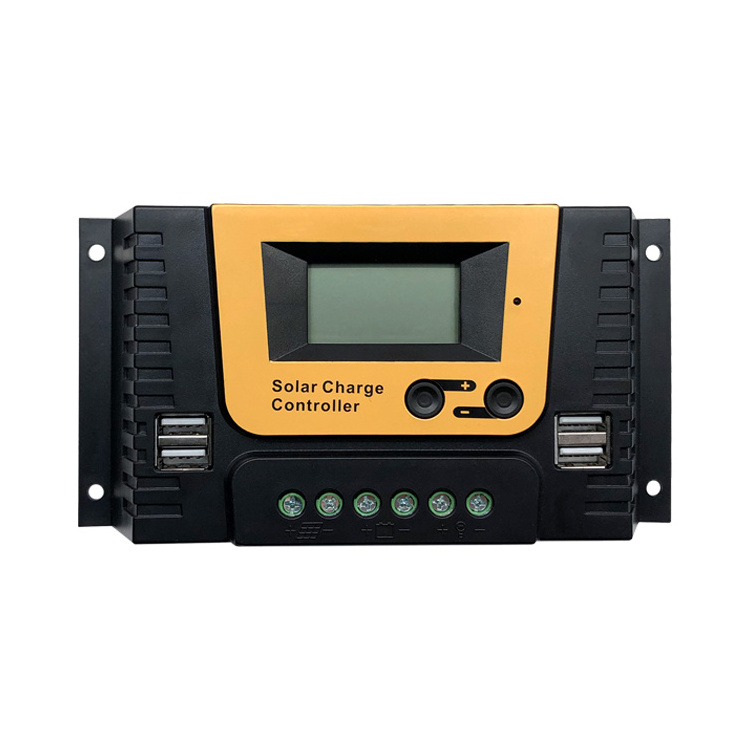

PWM SOLAR CONTROLLER
-
Battery type:
-
Sealed Gel AGM Flooded Lithium
-
System voltage:
-
12V/24V/36v/48v Auto
-
Rated Current:
-
10A/20A/30A/40A/50A/60A/80A
-
Charge mode:
-
4-Stage PWM Charge
-
Display:
-
LCD Screen
-
Function:
-
Solar Charging
-
Protection Function:
-
HVD/LVD/Overload/Shortcircuit
Quick Details
-
Type:
-
PWM
-
Application:
-
Charger Controller, Solar Working Station, Lighting Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kungf Solar
-
Model Number:
-
VT2048/VT4048/VT6048/VT8048
-
Work Time (h):
-
24hours
-
Max PV Power:
-
3840W
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE
-
Warranty:
-
18 months
-
Product name:
-
PWM SOLAR CONTROLLER
-
Battery type:
-
Sealed Gel AGM Flooded Lithium
-
System voltage:
-
12V/24V/36v/48v Auto
-
Rated Current:
-
10A/20A/30A/40A/50A/60A/80A
-
Charge mode:
-
4-Stage PWM Charge
-
Display:
-
LCD Screen
-
Function:
-
Solar Charging
-
Protection Function:
-
HVD/LVD/Overload/Shortcircuit
| Rated current | 10A/20A | 30A/40A | 50A/60A | 80A |
| System voltage | 12V/24V/36V/48V Auto | |||
| Max PV open circuit voltage | 100V | |||
| Self-consumption | ≤30mA | |||
| Loop voltage drop | ≤ 0.3V | |||
| USB output | 5V/2A*2 | |||
| Temperature compensation | -4mV/℃/2V(25℃) | |||
| Operating temperature | -20~50℃ | |||
| Protecting class | IP32 | |||
| Humidity | 95%,no condensation | |||
| Ternimals | 8AWG/10mm² | 6AWG/16mm² | 8AWG/25mm² | |
| Mounting hole size | 158*68mm-φ6mm | 190*69mm- φ5mm | 190*104mm- φ5mm | |
| Dimension | 200mm*106mm*47mm | 200mm*131.6mm*61mm | 200mm*131.6mm*72mm | |
| Weight | 220g | 400g | 730g | 790g |
Q1. Do you provide the OEM service?
A: Yes, we could accept the PCB board design, logo and color box OEM, etc.
Q2. How about your delivery time?
A: Generally, it will take around 15 days.
Q3. Can you provide samples ?
A: Yes,we can provide samples.But you have to pay for the shipping cost.
Q4. Do you test all your goods before delivery?
A: Yes, 100% test one by one before delivery
Q5. What kind of payment do you accept ?
A: We accept T/T(Wire transfer),Alibaba payment,
Q6: How do you make ourbusiness long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
