PTV 1.25 Insulated Pin Terminal 22-16 AWG crimping Pin Width 19A Imax Red Pin Shaped pre insulated wire terminal

PTV 1.25 Insulated Pin Terminal 22-16 AWG crimping Pin Width 19A Imax Red Pin Shaped pre insulated wire terminal

FOB Reference Price: Get Latest Price

≥20 Bags

US $0.78

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Copper/PVC/Brass

plating:: tin plating

Cable size:: 0.5-1.5,1.5-2.5,2.5-4,4-6mm2

Color:: Red Blue Black Yellow

Certificates:: CE, ROHS

packing:: 100 Pcs/Bag

Ctn Size:: 49*42*20cm

Free sample:: Available

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: HOOYEE

Model Number:: PTV

Material:: Copper/PVC/Brass

plating:: tin plating

Cable size:: 0.5-1.5,1.5-2.5,2.5-4,4-6mm2

Color:: Red Blue Black Yellow

Certificates:: CE, ROHS

packing:: 100 Pcs/Bag

Ctn Size:: 49*42*20cm

Free sample:: Available

insulated terminal

Product Description

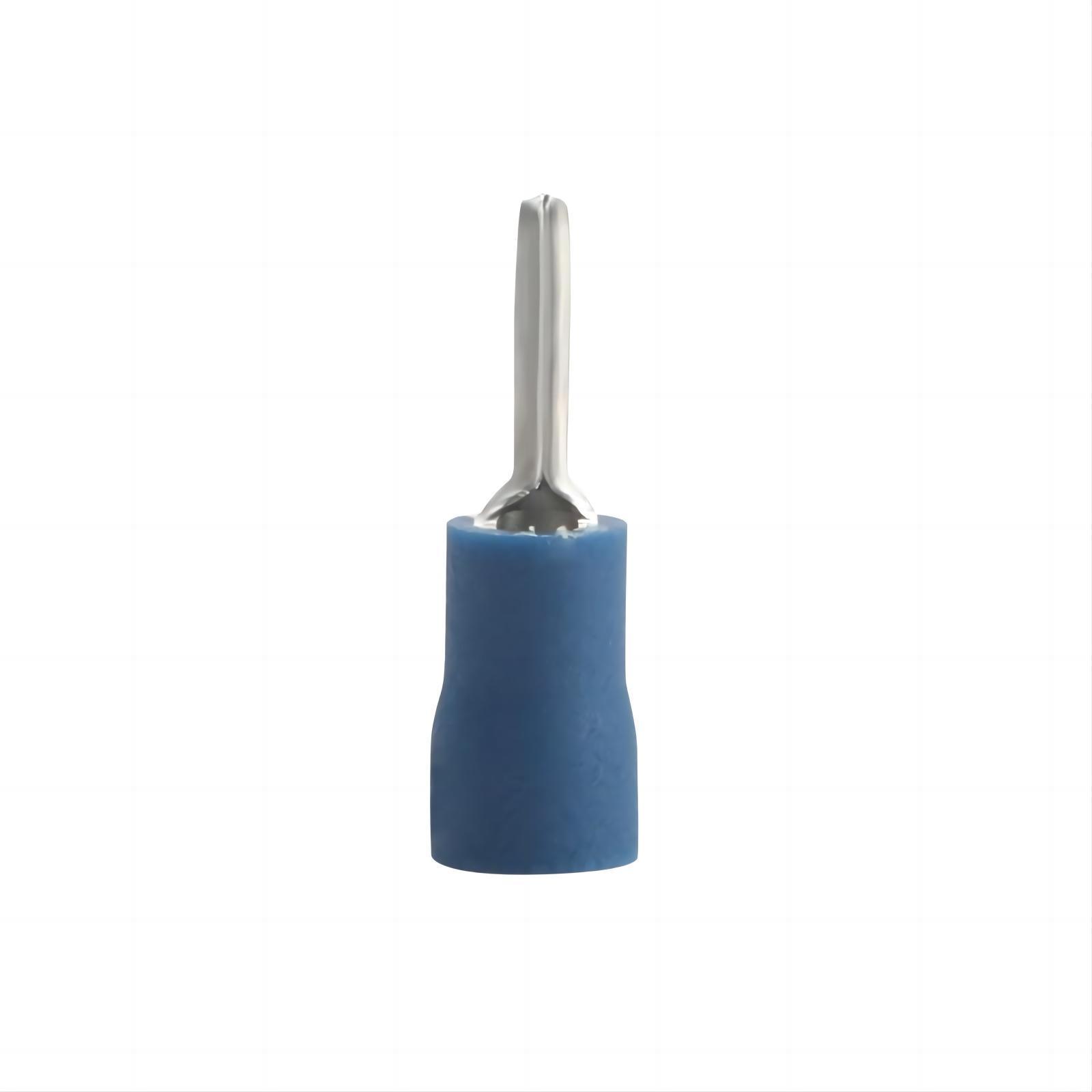

Pin Shaped pre insulating terminal PTV 1.25 22-16 AWG Pin Width Red

Application

PTV brass cable insulated pin terminal is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on . And it is also for mating and maintenance fittings of device power and connectors imported from abroad. So it is a new generation ideal power supply unit . The products are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European ,Americal and so on areas as well,they are quite enjoyed by clients.

Product Description

lead section: 0.5~1.5mm2(A.W.G: 22~16) Imax=19A
Item NO	dimension(mm)				color
	F	L	H	Dφ
PTV 1.25-9	1.9	19	10	4.3	red
PTV 1.25-10	1.9	20
PTV 1.25-12	1.9	22
PTV 1.25-13	1.9	23
PTV 1.25-18	1.9	28

lead section: 1.5~2.5mm2(A.W.G:16~14) Imax=27A
Item NO	dimension(mm)				color
	F	L	H	Dφ
PTV 2-9	1.9	19	10	4.9	blue
PTV 2-10	1.9	20
PTV 2-12	1.9	22
PTV 2-13	1.9	23
PTV 2-18	1.9	28

cable size: 2.5~4mm2(A.W.G:14~12) Imax:=37A
Item NO	dimension(mm)				color
	F	L	H	Dφ
PTV 3.5-10	2.8	20	13	6.2	black
PTV 3.5-13	2.8	25.5

cable size:4~6mm2(A.W.G:12~10) Imax:=48A
Item NO	dimension(mm)				color
	F	L	H	Dφ
PTV 5.5-13	2.8	25.5	13	6.7	yellow
PTV 5.5-18	2.8	30.5	13	6.7

Pin Shaped pre insulating terminal PTV 1.25 22-16 AWG Pin Width Red

Product Show

Cerfication

Pin Shaped pre insulating terminal PTV 1.25 22-16 AWG Pin Width Red

Why choose us

Product Process of Copper Connector

Pin Shaped pre insulating terminal PTV 1.25 22-16 AWG Pin Width Red

Packaging & Shipping

Packing 100 pcs blue 2x2.5mm2 TE2510 Twin Dual Insulated Wire Ferrules / Copper Crim Connector

Pin Shaped pre insulating terminal PTV 1.25 22-16 AWG Pin Width Red

Shipping term

If small quantity, usually send by courier (DHL,FEDEX,TNT and so on) . If big quantity, we advice ship by air or by sea. this will use longer time ,but cheaper fees. We are near NINGBO and SHANGHAI port.
