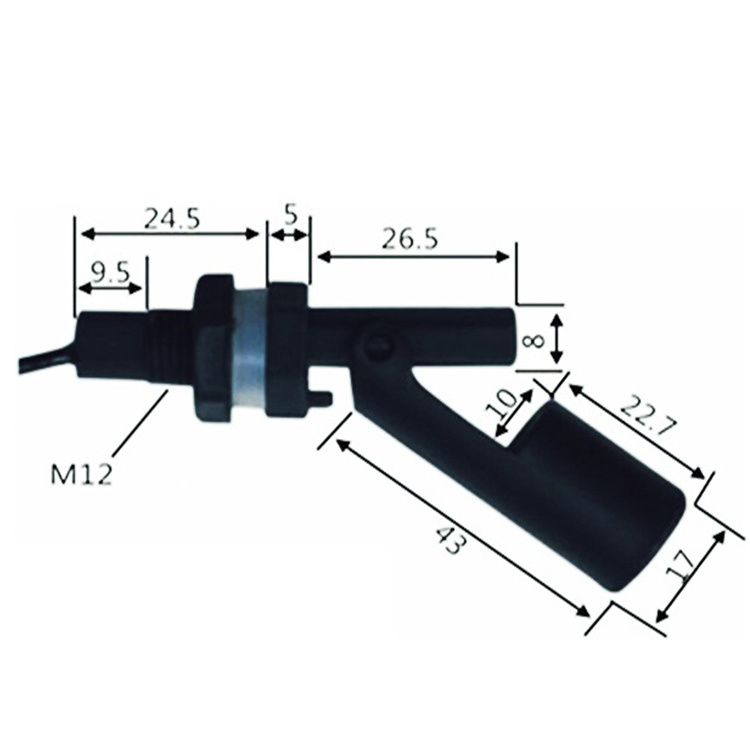

EP2000F Side-mounted Duckbill Float Switch Plastic Water Level Switch
Product introduction
Float level switch is a simple structure, easy to use liquid level control device, it does not need to provide power, no complex circuit, it has a smaller size than the general mechanical switch, long working life and so on. In the modeling, as long as the material is selected correctly, and any kind of liquid or pressure and temperature can be used, it is widely used in shipbuilding industry, generator equipment, petrochemical industry, food industry, water treatment equipment, dyeing and finishing industry, hydraulic machinery, etc. application.
Duckbill liquid level switch sensor Duckbill liquid leDuckbill liquid level switch sensor Duckbill liquid level switch sensorvel switch sensor Duckbill liquid level switch sensor Duckbill liquid level switch sensor Duckbill liquid level switch sensor Duckbill liquid level switch sensor Duckbill liquid level switch sensor
Product parameters
|
Project |
Parameter |
|
Contact capacity |
10W/50W |
|
Switching voltage |
0~ 110V DC 0~ 220V A C /DC |
|
Switching current |
0.5A |
|
Insulation resistance |
>10Ω |
|
Contact Impedance |
<100M Ω |
|
Resistive load |
107 times |
|
Working temperature |
-10~50°C |
|
Working pressure |
<1.0MPA |
|
Medium weight |
>0.6 |
|
Switch Material |
PP |
Note : Float voltage must be within 12V, 24V, 36V, 110V, etc. If you connect 220V power, you need to switch to a small relay. (Normally open and normally closed can be adjusted by yourself)
Duckbill liquid level switch
sensor
Duckbill liquid leDuckbill liquid level switch sensor Duckbill liquid level switch sensorvel switch
sensor
Duckbill liquid level switch
sensor
Duckbill liquid level switch
sensor
Duckbill liquid level switch
sensor
Duckbill liquid level switch
sensor
Duckbill liquid level switch
sensor
